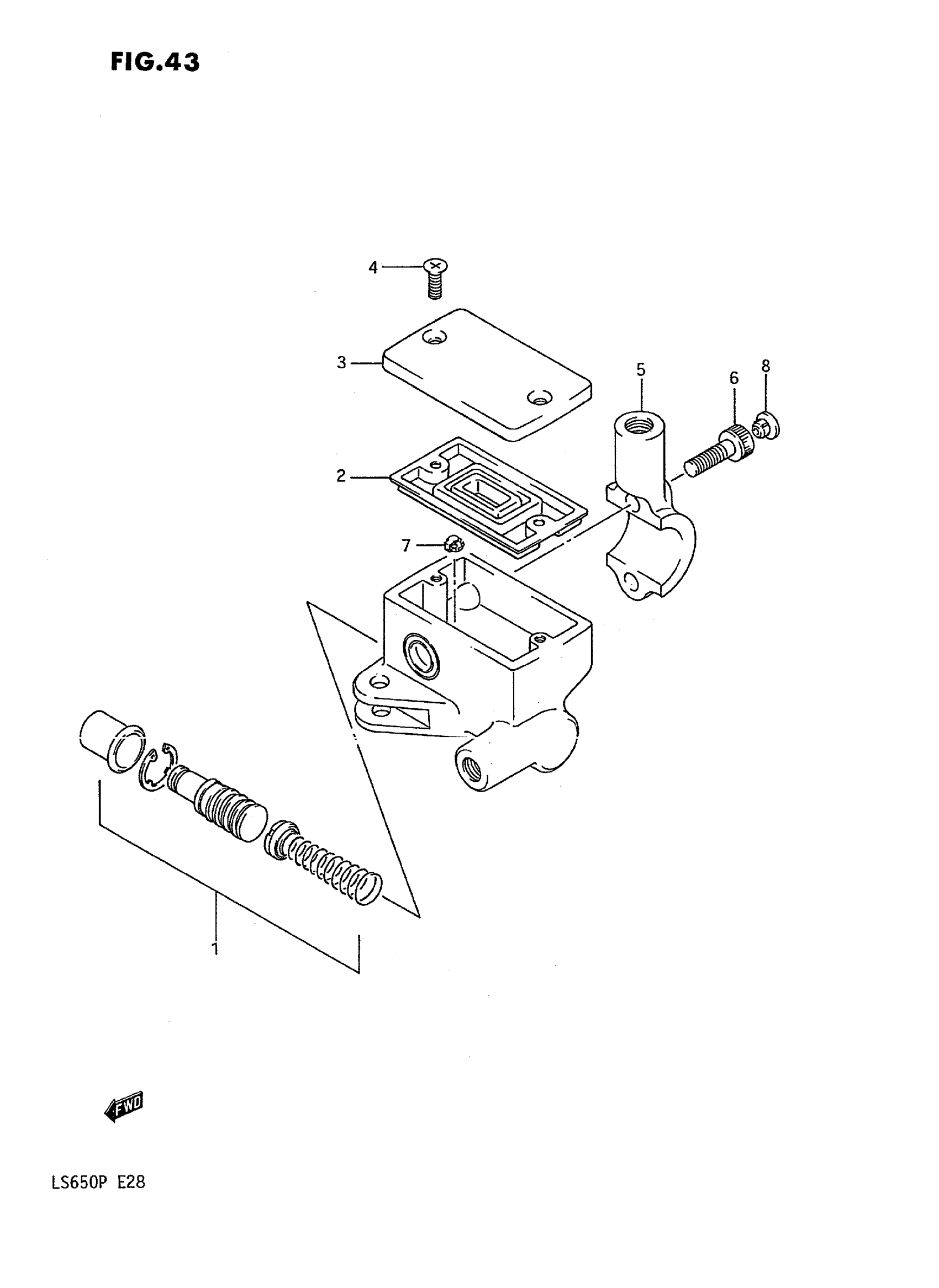

Suzuki LS650F (1995) FRONT MASTER CYLINDER (LS650FG/FJ/FK/FL) Diagram

#

Description

Price

NO DESCRIPTION AVAILABLE | LS650FG/FJ This part replaces 59600-24B00.

59600-24X50

Unavailable

CYLINDER ASSY, FRONT MASTER | LS650FK/FLMICRO SWITCH TYPE; Includes Item(s) 1 - 7

59600-24B40

Unavailable

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$43.23

2

DIAPHRAGM

59667-49460

$9.36

3

CAP | LS650FG/FJ

59669-38A30

Unavailable

3

CAP | LS650FK/FL

59669-24B00

$69.47

4

SCREW This part replaces 59691-38A00.

02122-04127

$2.03

5

HOLDER

59671-38A00

$35.49

6

.BOLT This part replaces 07110-06208.

07130-06207

$2.88

7

PROTECTOR | LS650FK/FLFOR 59600-24B40

59664-48B00

$12.43

8

CAP | PK/PL

09250-05008

$3.55
