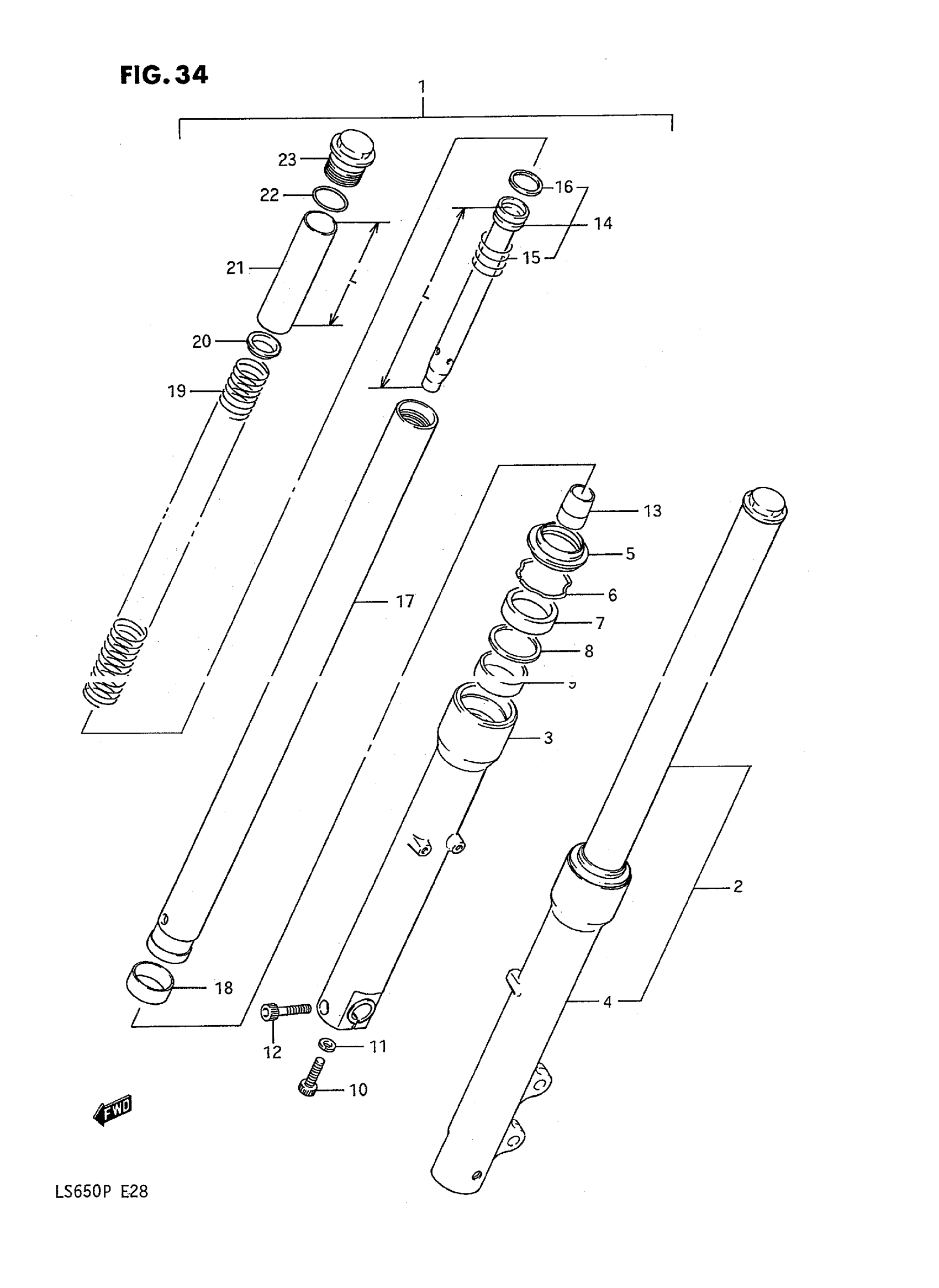

Suzuki LS650F (1995) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH | MODEL G ~F.NO.103407 This part replaces 51103-24B00.

51103-24B01

Unavailable

1

DAMPER ASSY, RH | MODEL G F.NO.103408~MODEL J/K/L/M/N/P

51103-24B01

Unavailable

2

DAMPER ASSY, FRONT FORK LH | MODEL G ~F.NO.103407 This part replaces 51104-24B00.

51104-24B01

Unavailable

2

DAMPER ASSY, LH | MODEL G F.NO.103408~MODEL J/K/L/M/N/P; Includes Item(s) 3 - 23

51104-24B01

Unavailable

3

OUTER TUBE, RH

51130-24B00

Unavailable

4

OUTER TUBE, LH

51140-24B00

Unavailable

5

DUST SEAL

51173-20A00

$16.13

6

RING, STOPPER

51156-40301

$5.05

7

OIL SEAL

51153-20A00

$19.00

8

WASHER

51158-14100

$3.71

9

METAL, SLIDE | MODEL G/J/K This part replaces 51167-14100.

51167-13A00

$9.69

9

METAL, SLIDE | MODEL L/M/N/P

51167-13A00

$9.69

10

BOLT

51147-16510

$4.34

11

GASKET

51148-41310

$2.26

12

BOLT This part replaces 07110-08388.

07130-08407

$3.14

13

PIECE, OIL LOCK | MODEL G ~F.NO.103407

51195-24B00

Unavailable

13

PIECE, OIL LOCK | MODEL G F.NO.103408~MODEL J/K/L/M/N/P

51195-24B01

Unavailable

14

CYLINDER (L:226.5) | MODEL G ~F.NO.103407

51146-24B00

Unavailable

14

CYLINDER (L:221.5) | MODEL G F.NO.103408~MODEL J/K/L/M/N/P

51146-24B01

Unavailable

15

SPRING

51177-49440

Unavailable

16

RING, PISTON

51196-05A00

$8.42

17

INNER TUBE | MODEL G ~F.NO.103407

51120-24B00

Unavailable

17

INNER TUBE | MODEL G F.NO.103408~MODEL J/K/L/M/N/P

51120-24B01

$392.77

18

PISTON

51121-14100

$14.76

19

SPRING

51171-24B00

Unavailable

20

WASHER, STEM This part replaces 51172-24A00.

51356-24B01

$5.38

21

SPACER (L:130) | MODEL G ~F.NO.103407

51176-24B00

Unavailable

21

SPACER (L:135) | MODEL G F.NO.103408~MODEL J/K/L/M/N/P

51176-24B01

$12.32

22

O RING

51117-40300

$3.09

23

CAP

51351-24B00

Unavailable
