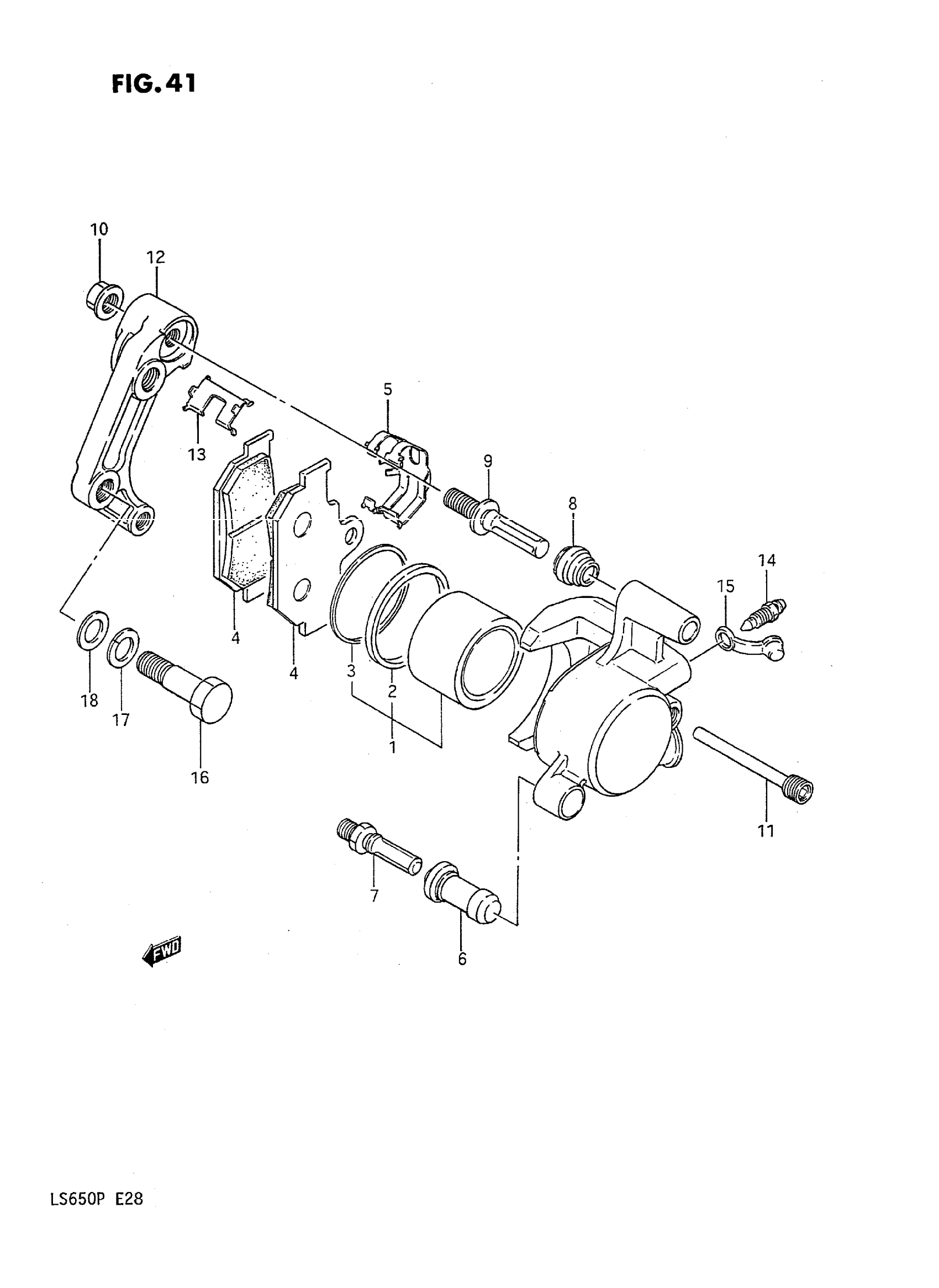

Suzuki LS650F (1995) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, LH | MODEL G This part replaces 59300-24B00.

59300-24B30-999

$320.47

CALIPER ASSY, LH | MODEL J/K/L/M/N/P; Includes Item(s) 1 - 15 This part replaces 59300-24B10.

59300-24B30-999

$320.47

1

PISTON SET

59300-24820

$48.77

2

SEAL SET, PISTON This part replaces 59107-24B00.

59300-24810

$11.24

3

DUST SEAL

59108-24B00

Unavailable

4

PAD SET | MODEL G This part replaces 59340-24B00.

59100-26870

$36.41

4

PAD SET | MODEL J/K/L/M/N/P This part replaces 59340-24B10.

59100-26870

$36.41

5

SPRING

59315-14600

$11.83

6

BOOT

59386-13A00

$7.95

7

BOLT

59382-14500

$8.95

8

BOOT

59303-14500

$5.52

9

BOLT

59305-14500

$23.07

10

NUT

59306-14500

Unavailable

11

PIN

59345-14600

$16.25

12

BRACKET

59351-24B00

Unavailable

13

RETAINER This part replaces 59316-24B00.

59316-24B10

$8.42

14

BLEEDER

59121-01A00

$8.73

15

CAP

59122-01A00

$4.34

16

BOLT

09104-10029

$3.55

17

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

18

WASHER This part replaces 08322-21108.

08322-01107

$2.15
