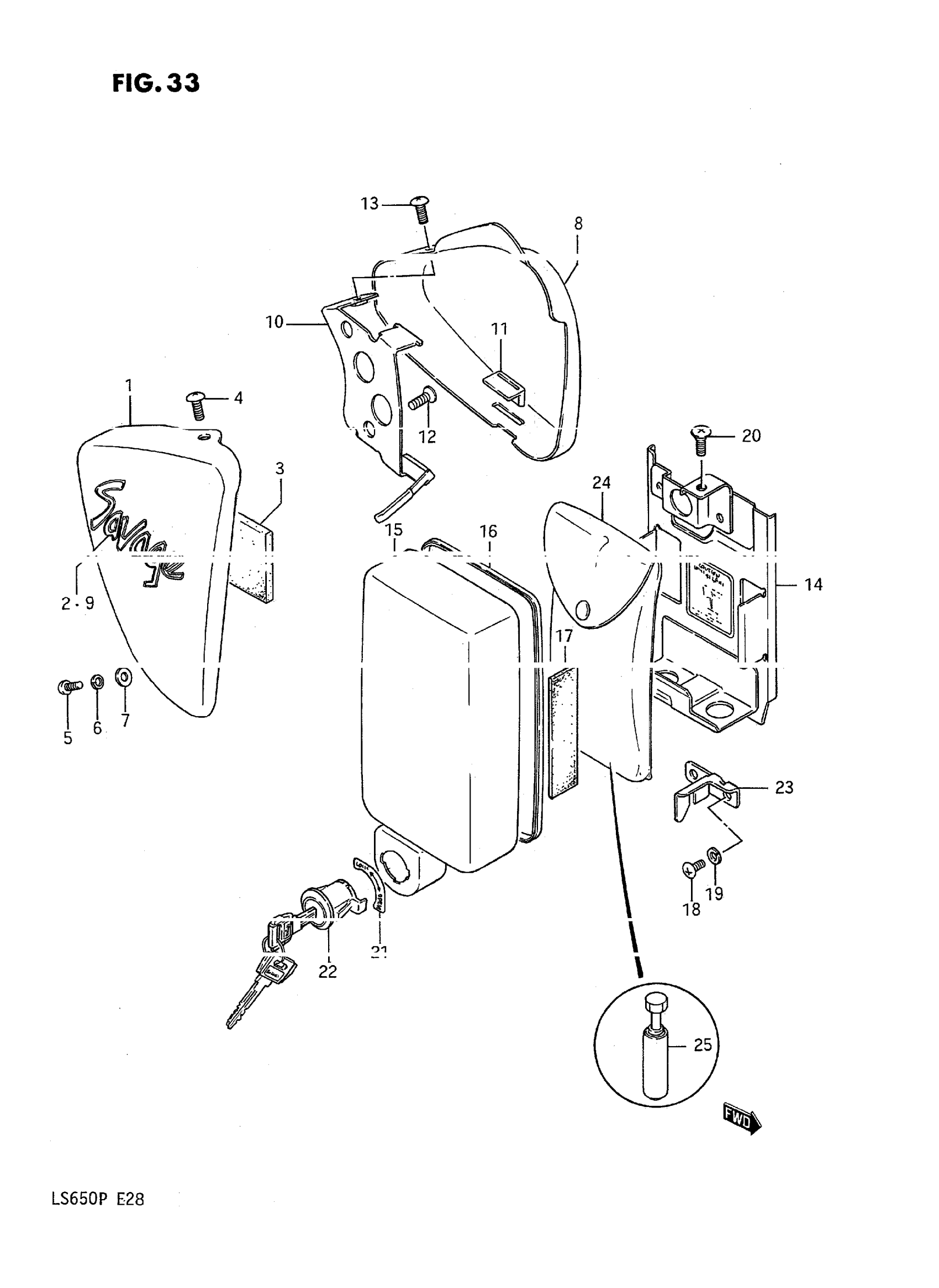

Suzuki LS650F (1995) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME, RH | MODEL G This part replaces 47110-24B00-13Z.

47110-24B00-13L

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL M/N/P

47100-24B00-37X

Unavailable

1

COVER,FRAME, RH | MODEL G This part replaces 47110-24B00-00J.

47110-24B00-13L

Unavailable

1

COVER,FRAME, RH | MODEL J/K/L This part replaces 47110-24B00-24V.

47110-24B00-13L

Unavailable

1

COVER,FRAME, RH | MODEL J/K/L This part replaces 47110-24B00-33D.

47110-24B00-13L

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL M/N/P; Includes Item(s) 2 - 3

47100-24B00-1FX

Unavailable

2

EMBLEM (GRAY) | MODEL G FOR 13Z

68131-24B00-23A

Unavailable

2

EMBLEM (RED) | FOR 00J,33DMODEL M/N/P FOR 37X

68131-24B00-22Z

Unavailable

2

EMBLEM (BLUE) | MODEL J/K/L FOR 24VMODEL M/N/P FOR 1FX

68131-24B00-38W

Unavailable

3

CUSHION

13719-84150

$3.37

4

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

5

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

6

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

7

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

8

COVER, FRAME LH | MODEL G This part replaces 47210-24B00-13Z.

47211-24B01-13L

Unavailable

8

COVER, FRAME LH (BLACK) | MODEL M/N/P

47200-24B00-37X

Unavailable

8

COVER, FRAME LH | MODEL G This part replaces 47210-24B00-00J.

47211-24B01-13L

Unavailable

8

COVER, FRAME LH | MODEL J/K/L This part replaces 47210-24B00-24V.

47211-24B01-13L

Unavailable

8

COVER, FRAME LH | MODEL J/K/L This part replaces 47210-24B00-33D.

47211-24B01-13L

Unavailable

8

COVER, FRAME LH (BLUE) | MODEL M/N/P; Includes Item(s) 9 - 9

47200-24B00-1FX

Unavailable

9

EMBLEM (GRAY) | MODEL G FOR 13Z

68131-24B00-23A

Unavailable

9

EMBLEM (RED) | FOR 00J,33DMODEL M/N/P FOR 37X

68131-24B00-22Z

Unavailable

9

EMBLEM (BLUE) | MODEL J/K/L FOR 24VMODEL M/N/P FOR 33H

68131-24B00-38W

Unavailable

10

BRACKET, FRAME COVER LH

47180-24B03

$24.20

11

CUSHION, LH

47117-45000

$2.14

12

SCREW This part replaces 02122-06125.

02122-0612A

$1.49

13

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

14

HOLDER, TOOL INNER

47430-24B01

$20.65

15

COVER, TOOL HOLDER | MODEL G This part replaces 47440-24B00.

47440-24B20

$54.71

15

COVER, TOOL HOLDER | MODEL J/K/L/M/N/P; Includes Item(s) 16 - 17 This part replaces 47440-24B10.

47440-24B20

$54.71

16

MOLDING, TOOL HOLDER

47445-24B00

$3.59

17

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

18

SCREW, THROTTLE | MODEL G/J/K This part replaces 02112-05105.

02112-0510A

$1.49

18

SCREW | MODEL L/M/N/P This part replaces 02112-15105.

02142-0510B

$1.78

19

WASHER, FRONT | MODEL G/J/K This part replaces 08322-21055.

08322-0105A

$1.84

20

SCREW This part replaces 02112-06108.

02112-06107

$1.49

21

LABEL, TOOL LOCK COVER

68226-24B00

Unavailable

22

LOCK SET, TOOL HOLDER | MODEL G/J/K/L This part replaces 95700-24B00-KEY.

95700-24871

$52.02

22

LOCK SET, TOOL HOLDER | MODEL M/N/P This part replaces 95700-24870.

95700-24871

$52.02

23

PLATE, LOCK

47434-24B00

$4.34

24

TOOL ASSY | MODEL G This part replaces 09800-00318.

09800-21069

$40.17

24

TOOL ASSY | MODEL J/K/L/M/N/P; Includes Item(s) 25 This part replaces 09800-00347.

09800-21069

$40.17

25

GUAGE ASSY, TENTION

96220-24B00

$31.76
