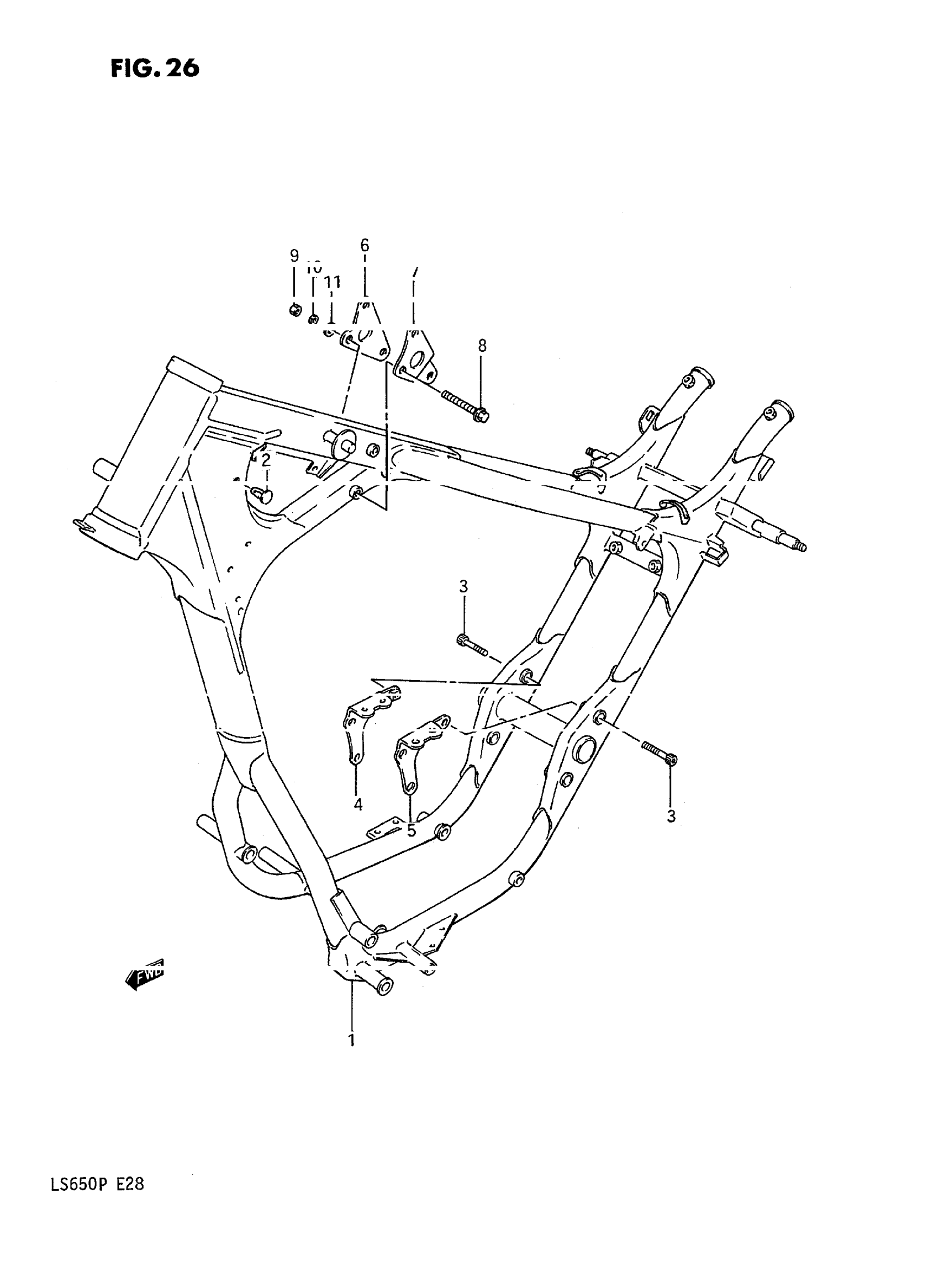

Suzuki LS650F (1995) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK) | MODEL G/J This part replaces 41100-24B00-019.

41100-24B01-019

Unavailable

1

FRAME SET (BLACK) | MODEL K/L/M/N/P

41100-24B01-019

Unavailable

2

CAP, FRAME HEAD

09409-06306

Unavailable

3

BOLT

09106-08074

$3.85

4

PLATE, NO.4 RH (BLACK)

41970-24B00-019

Unavailable

5

PLATE, NO.4 LH (BLACK)

41980-24B00-019

Unavailable

6

PLATE, NO.5 RH (BLACK)

41991-24B00-019

Unavailable

7

PLATE, NO.3 LH (BLACK)

41992-24B00-019

Unavailable

8

BOLT

09103-08037

$5.57

9

NUT This part replaces 08319-21086.

08319-2108A

$2.12

10

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

11

WASHER This part replaces 08322-11086.

08322-0108A

$1.92
