Partiron

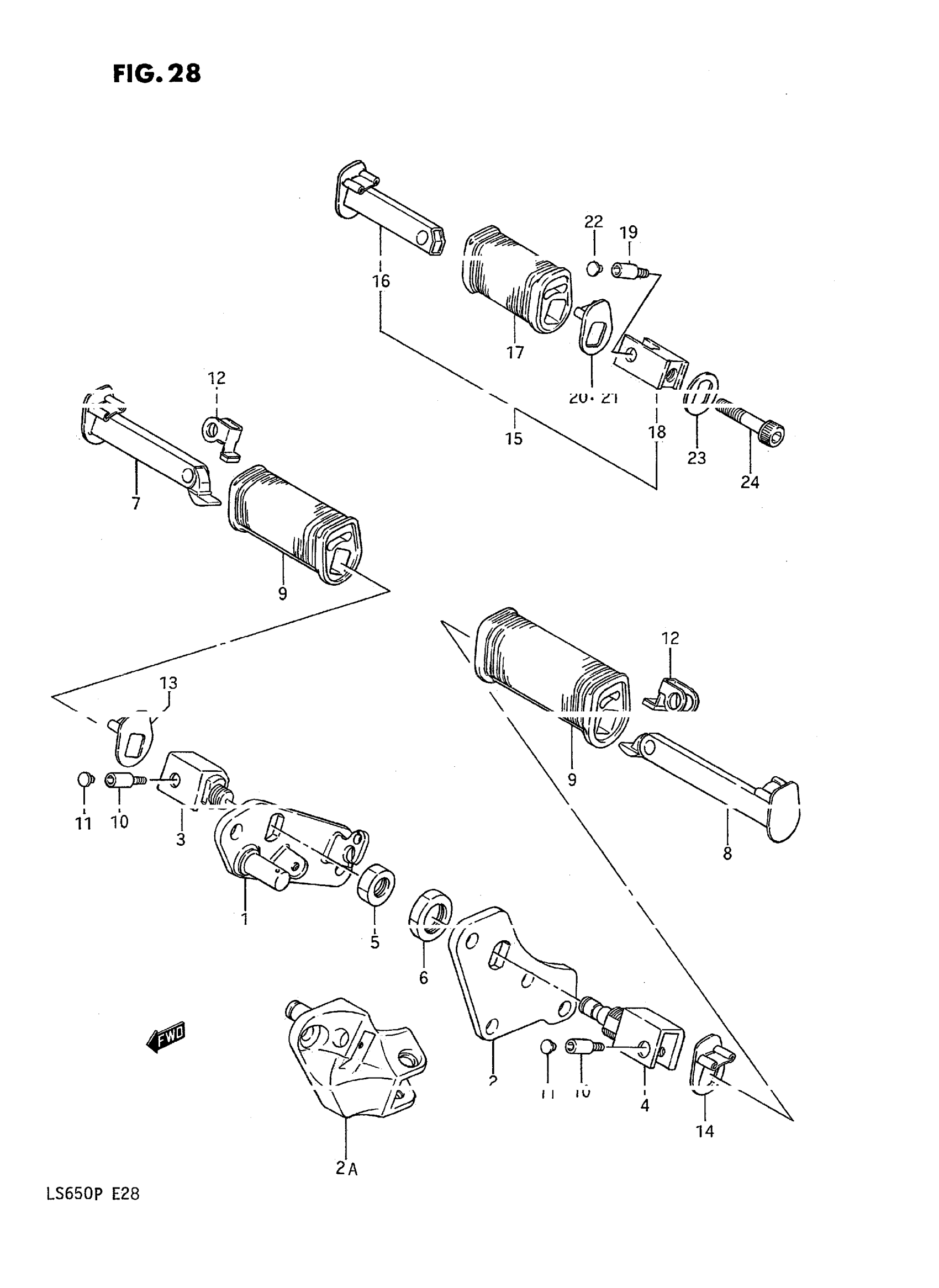

Suzuki LS650F (1995) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-24B00

$179.03

2

BRACKET, FRONT FOOTREST LH | MODEL G

43520-24B02

Unavailable

2A

BRACKET, FRONT FOOTREST LH | MODEL J/K/L/M/N/P This part replaces 43520-24B21.

43520-24B22

$305.47

3

HOLDER, FRONT FOOTREST RH

43517-24B01

$106.62

4

HOLDER, FRONT FOOTREST LH | MODEL G

43527-24B01

Unavailable

5

NUT, RH

09140-16029

$3.85

6

NUT, LH | MODEL G

09140-22006

Unavailable

7

BAR, FRONT FOOTREST RH This part replaces 43530-24B01.

43530-24B02

$57.08

8

BAR, FRONT FOOTREST LH This part replaces 43540-24B01.

43540-24B02

$57.08

9

RUBBER

43551-38A00

$16.13

10

BOLT (6X8) This part replaces 43641-38A00.

09106-06100

$5.36

11

CAP

43576-24B00

$3.05

12

CUSHION, FRONT FOOTREST This part replaces 43570-24B00.

43570-24B01

$8.07

13

WASHER, FRONT FOOTREST RH

43470-24B00

$6.52

14

WASHER, FRONT FOOTREST LH

43480-24B00

$6.52

15

FOOTREST ASSY, PILLION RH

43600-24B00

$127.37

15

FOOTREST ASSY, PILLION LH | Includes Item(s) 16 - 22

43700-24B00

$111.83

16

BAR, PILLION FOOTREST RH This part replaces 43610-24B00.

43610-24B01

$36.88

16

BAR, PILLION FOOTREST LH This part replaces 43710-24B00.

43710-24B01

$35.98

17

RUBBER, PILLION FOOTREST

43651-24B00

$21.77

18

HOLDER, PILLION FOOTREST | MODEL G This part replaces 43621-24B00.

43621-24B10

Unavailable

18

HOLDER, PILLION FOOTREST | MODEL J/K/L/M/N/P

43621-24B10

Unavailable

19

BOLT (6X8) This part replaces 43641-38A00.

09106-06100

$5.36

20

WASHER, RH

43570-38A00

Unavailable

21

WASHER, LH

43580-38A00

Unavailable

22

CAP, BOLT

43576-24B00

$3.05

23

WASHER, HOLDER

43622-24B00

$2.45

24

BOLT,10X45 This part replaces 09106-10022.

09106-10022-XC0

Unavailable
