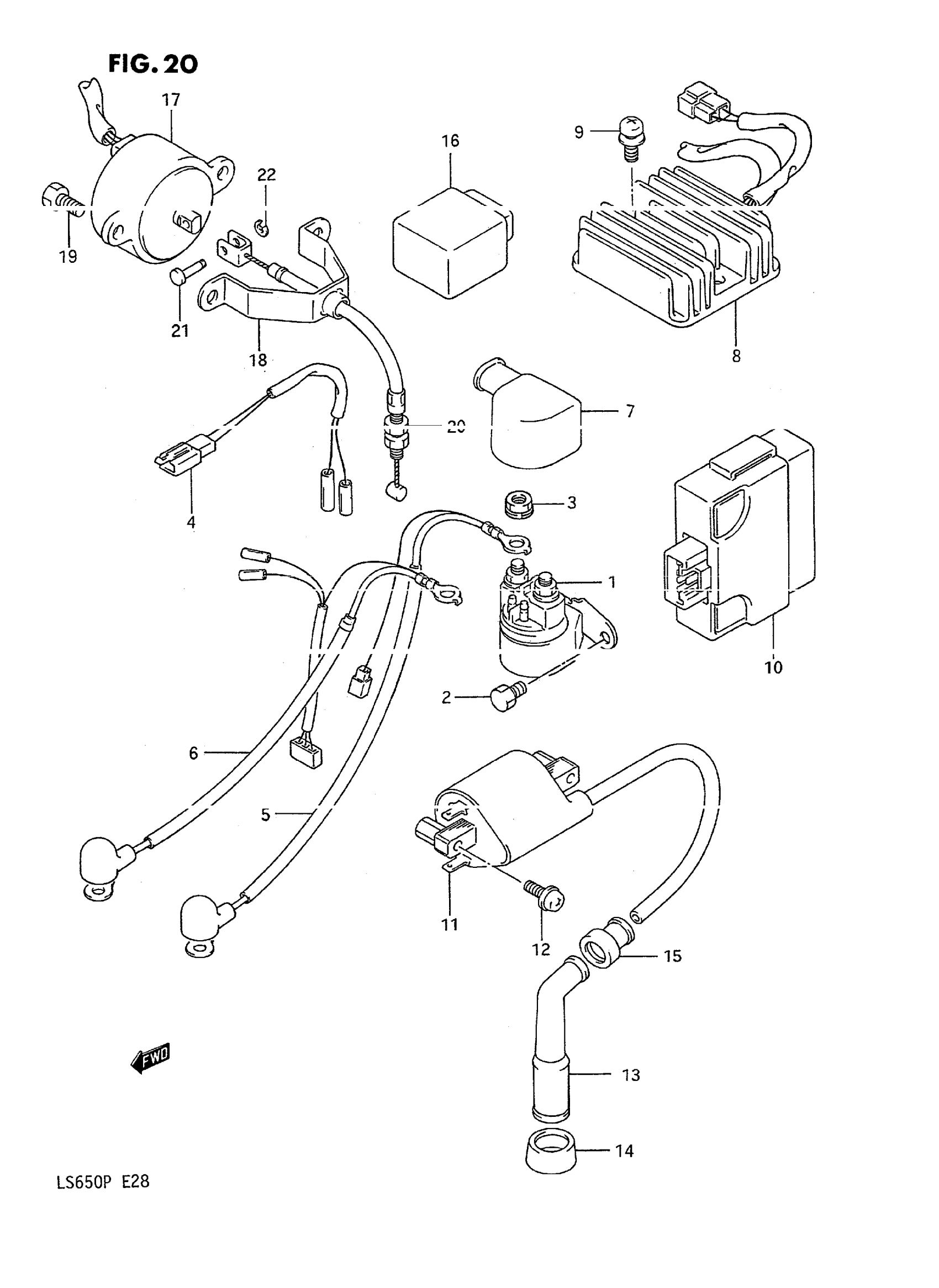

Suzuki LS650F (1995) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR

31800-49100

$89.07

2

BOLT This part replaces 01107-06106.

01500-0610B

$1.82

3

NUT This part replaces 08361-35066.

08361-3506A

$1.81

4

WIRE, STARTER RELAY LEAD | MODEL G

36852-24B00

Unavailable

5

WIRE, STARTING MOTOR | MODEL G

33850-24B00

Unavailable

6

WIRE, STARTING MOTOR | MODEL J/K/L/M/N/P

33850-24B10

$56.53

7

CAP, STARTER RELAY | MODEL J/K/L/M This part replaces 33624-49400.

33624-49401

$8.13

7

CAP, STARTER RELAY | MODEL N/P This part replaces 33624-49420.

33624-49401

$8.13

8

RECTIFIER ASSY This part replaces 32800-24B00.

32800-24B11

$319.40

9

SCREW This part replaces 02112-16166.

02142-0616A

$1.37

10

IGNITER ASSY

32900-24B00

Unavailable

11

COIL ASSY, IGNITION

33410-24B00

$181.53

12

SCREW This part replaces 02152-05125.

02112-0512A

$1.45

13

CAP, SPARK PLUG

33510-45010

$23.52

14

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.16

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

16

CONTROL UNIT,DE This part replaces 32910-24B00.

32910-24B01

Unavailable

17

SOLENOID ASSY, DECOMP

33970-24B00

$377.97

18

BRACKET, DECOMP SOLENOID

33971-24B00

Unavailable

19

BOLT This part replaces 01107-06165.

01500-0616A

$1.77

20

CABLE ASSY, DECOMP This part replaces 58900-24B00.

58900-24B01

$27.32

21

PIN

09209-04020

Unavailable

22

E RING This part replaces 08332-11036.

08332-1103A

$2.35
