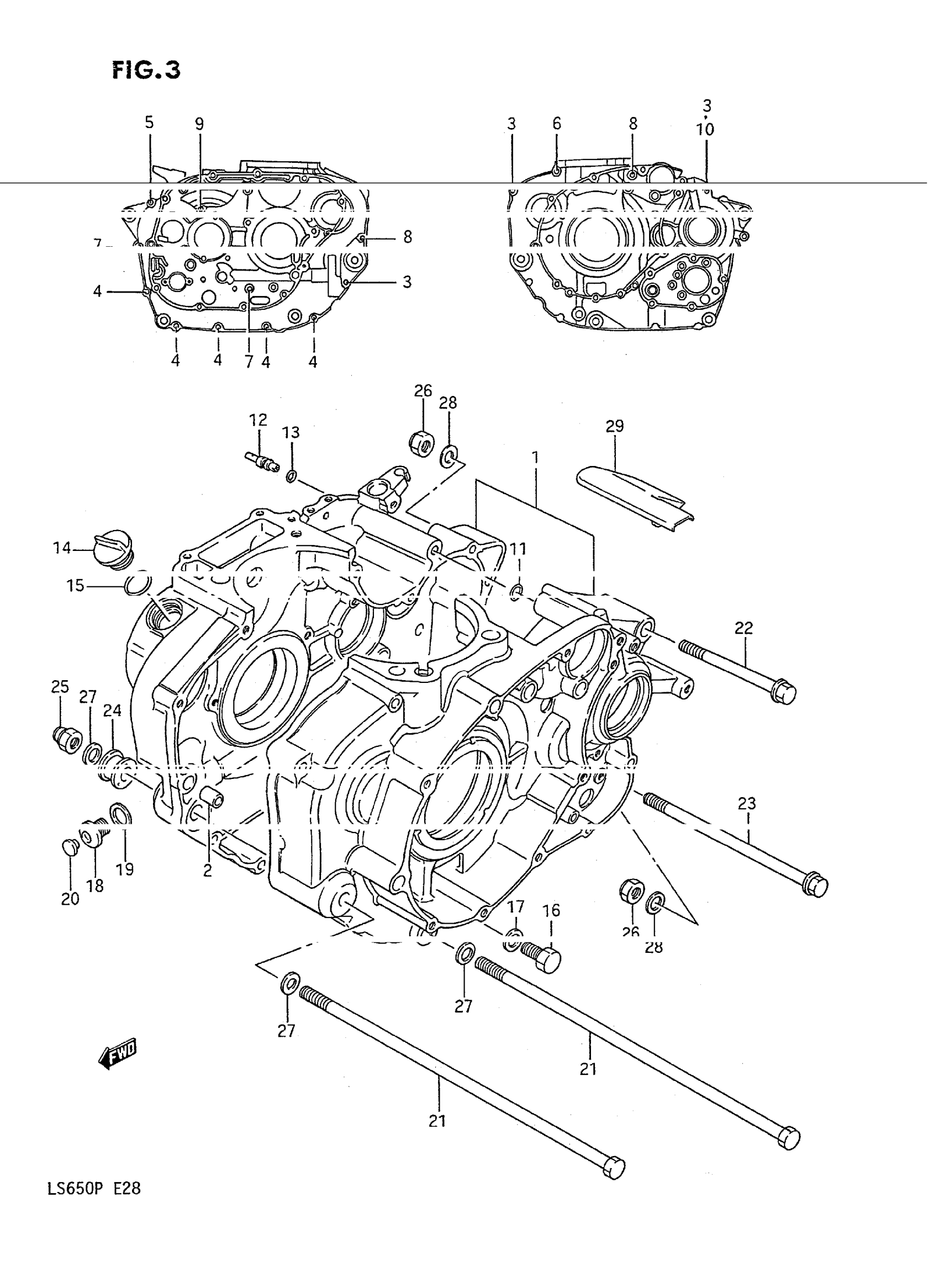

Suzuki LS650F (1995) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 13 This part replaces 11301-24811.

11301-24812

Unavailable

2

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

3

BOLT

01547-06407

$2.32

4

BOLT

01547-06457

$2.32

5

BOLT

01547-06557

$2.32

6

BOLT

01547-06607

$3.18

7

BOLT

01547-06657

$2.75

8

BOLT

01547-06707

$2.75

9

BOLT,CARB This part replaces 01547-06757.

09103-06522

$2.95

10

GASKET

09168-06023

$2.35

11

O RING, OIL GALLERY

09280-10013

$3.70

12

JET, OIL GALLERY

09493-36004

$16.87

13

O RING

09280-04004

$1.91

14

PLUG, OIL FILLER

09259-20007

$7.53

15

O RING

09280-17003

$1.65

16

BOLT This part replaces 01107-12208.

01500-1220B

$4.00

17

GASKET

09168-12002

$1.59

18

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

19

GASKET

09168-14004

$1.83

20

CAP

09250-08014

$2.85

21

BOLT (10X323)

09104-10034

$28.48

22

BOLT (10X105)

09103-10087

$7.03

23

BOLT (10X180)

09103-10053

$11.48

24

SPACER

11610-38400

$13.05

25

NUT

09159-10064

$10.08

26

NUT

09159-10047

$9.41

27

WASHER This part replaces 08322-11107.

08322-01107

$2.15

28

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

29

COVER, CRANKCASE | MODEL J/K/L/M/N/P This part replaces 11384-24B00.

11384-24B01

Unavailable
