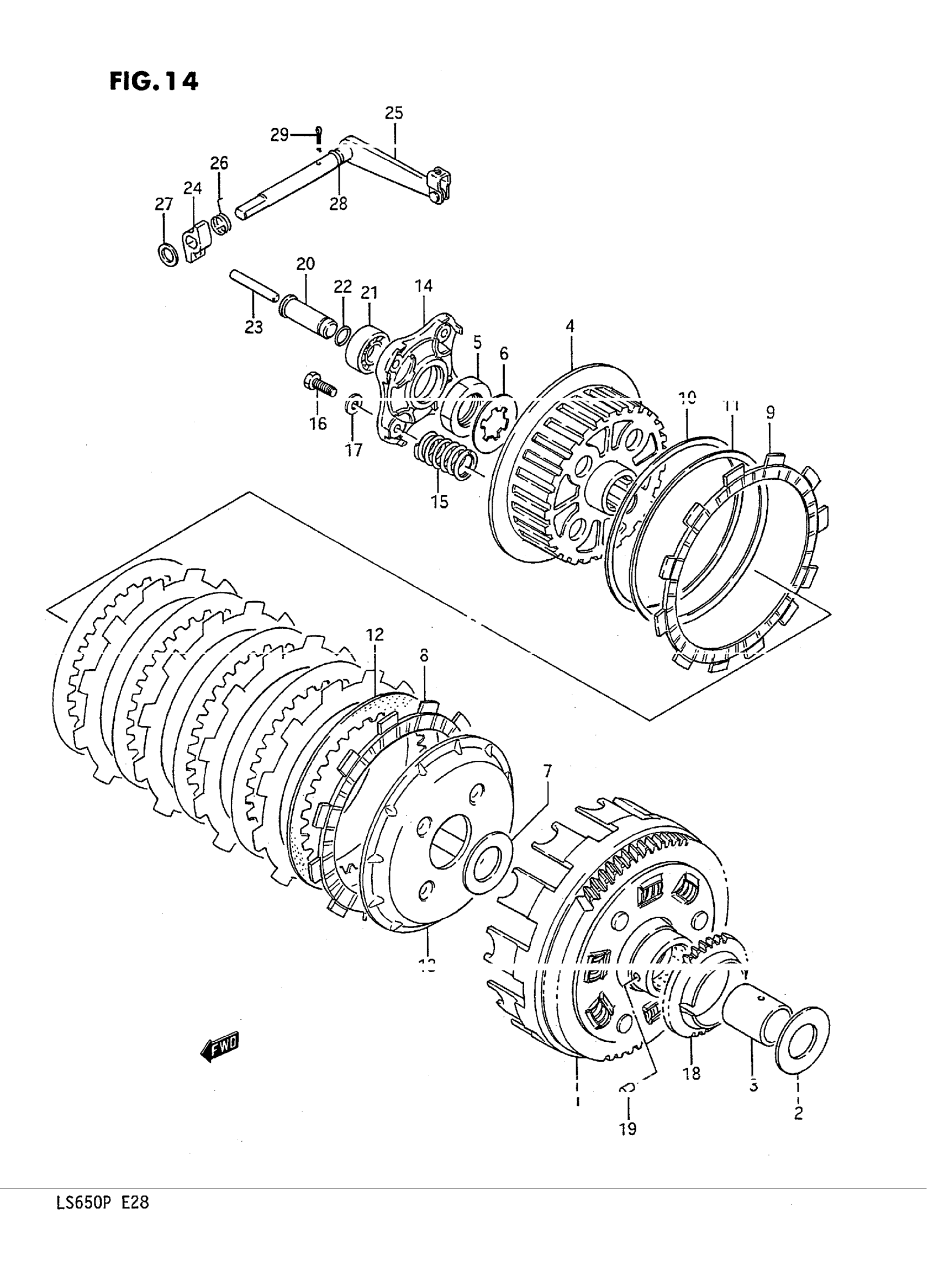

Suzuki LS650F (1995) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:68)

21200-24B01

Unavailable

2

WASHER

08211-22443

$4.25

3

SPACER

09180-22023

$25.12

4

HUB, SLEEVE

21411-37401

$121.77

5

NUT

09140-22009

$7.95

6

LOCK WASHER

09167-22005

$2.11

7

WASHER

08211-22403

$4.26

8

PLATE, DRIVE (ID:116)

21441-37400

$18.13

9

PLATE, DRIVE (ID:120)

21442-37401

$18.67

10

SEAT, WAVE WASHER (T:1.4)

21471-37400

$9.78

11

WAVE WASHER

09164-00004

$11.35

12

PLATE, DRIVEN

21451-14A00

$9.52

13

DISK, PRESSURE

21462-37400

$57.67

14

PLATE, RELEASE

21465-37400

$20.45

15

SPRING

09440-20016

$5.24

16

BOLT This part replaces 01107-06207.

01500-06207

$2.28

17

WASHER This part replaces 08322-21067.

08322-01067

$2.13

18

GEAR, OIL PUMP DRIVE (NT:30)

16321-24B00

Unavailable

19

PIN

09261-06002

$1.53

20

PIECE, CLUTCH PUSH

23121-24B02

$20.45

21

BEARING (12X28X8) This part replaces 08110-60010.

09262-12001

$18.47

22

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

23

ROD, CLUTCH PUSH (L:44.5)

23111-24B00-445

$6.52

23

ROD, CLUTCH PUSH (L:45.5)

23111-24B00-455

$7.80

23

ROD, CLUTCH PUSH (L:46.5)

23111-24B00-465

$6.52

24

CAM, RELEASE

23263-24B01

$9.91

25

ARM, RELEASE

23270-24B03

$124.53

26

SPRING

09448-13010

$2.58

27

WASHER (10X14X1.0) This part replaces 08211-10141.

09181-10111

$1.97

28

O RING (D:1.9,ID:6.8)

09280-07004

$1.53

29

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
