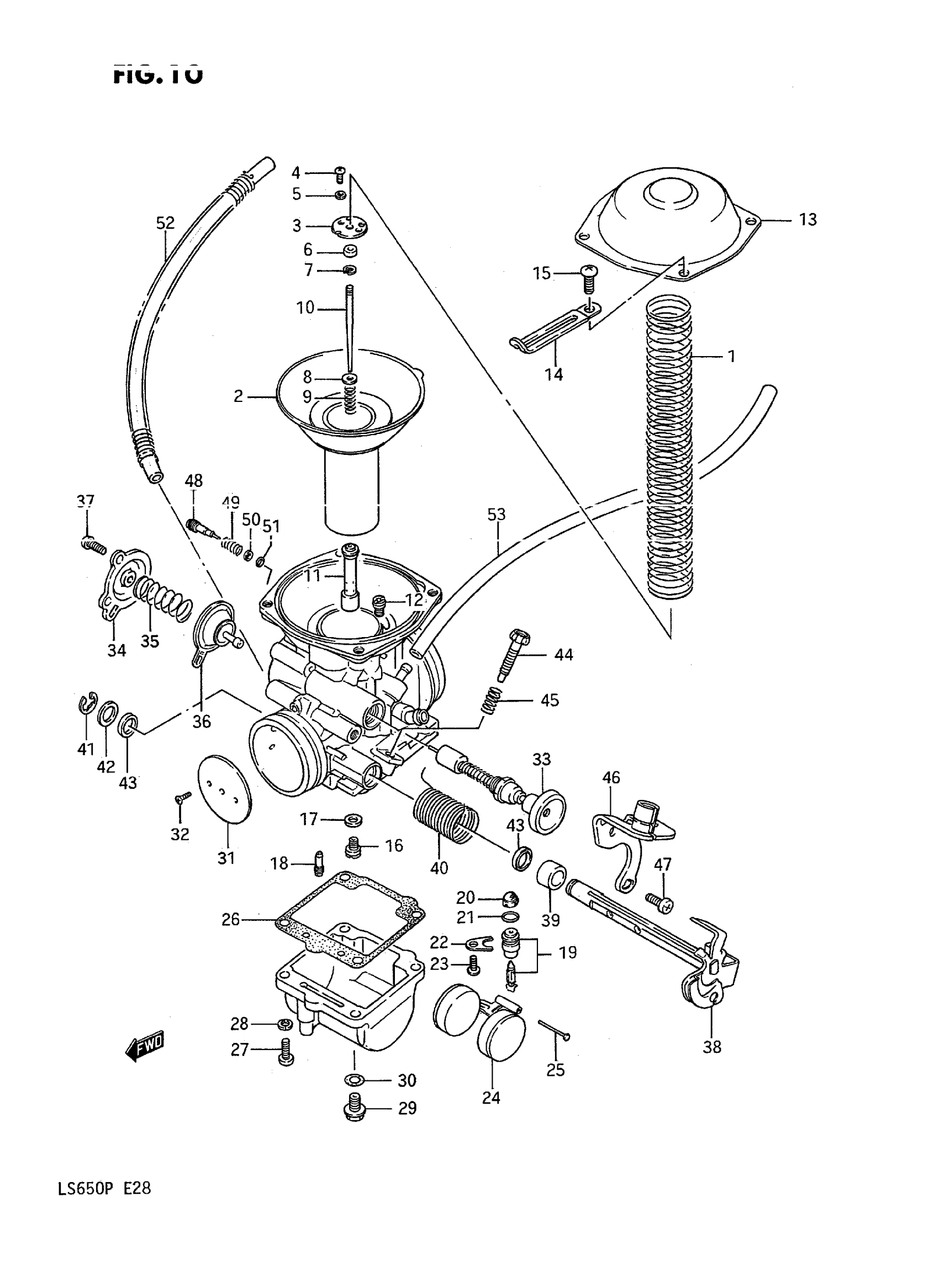

Suzuki LS650F (1995) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 53

13200-24B11

Unavailable

1

SPRING

13503-24B00

$23.07

2

DIAPHRAGM ASSY This part replaces 13500-24B00.

13500-24B41

$231.13

3

PLATE

13389-37400

$7.08

4

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

5

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

6

RING

13387-44030

$5.83

7

E RING

13394-31210

$4.64

8

WASHER

13382-44030

$3.71

9

SPRING

13388-44030

$8.12

10

NEEDLE, JET | 5C16-2

13383-24B40

Unavailable

11

JET, NEEDLE (X-8)

09494-00541

Unavailable

12

JET, PILOT AIR (70)

09491-70012

$11.60

13

COVER

13502-37400

Unavailable

14

CLAMP(L:80) This part replaces 13671-05A20.

09404-06036

$1.74

15

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

$1.49

16

JET, MAIN (155)

09491-31008

Unavailable

17

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

18

JET, PILOT (47.5)

09492-47013

$11.38

19

VALVE ASSY, NEEDLE This part replaces 13370-37400.

13370-24C80

$89.23

20

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

21

O RING This part replaces 13374-44080.

13374-35C00

$5.99

22

PLATE

13373-39110

$6.64

23

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

24

FLOAT

13250-37400

$28.97

25

PIN, FLOAT

13254-92311

$2.07

26

.GASKET This part replaces 13251-37100.

13251-37101

$11.25

27

.SCREW This part replaces 02112-05166.

02112-0516A

$1.49

28

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

29

PLUG, DRAIN

13247-44080

$7.97

30

GASKET

13246-44080

$2.80

31

VALVE, THROTTLE

13551-37400

Unavailable

32

SCREW

13604-44080

$2.92

33

PLUNGER ASSY This part replaces 13411-24B00.

13411-24C00

$56.70

34

COVER

13484-38A10

$22.22

35

SPRING

13481-24B00

$4.35

36

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

37

SCREW This part replaces 02112-04106.

02112-0410A

$1.49

38

SHAFT ASSY, THROTTLE

13550-24B00

Unavailable

39

RING

13557-05A20

Unavailable

40

SPRING

13573-24B00

Unavailable

41

E RING

13617-44080

$2.90

42

WASHER

13557-47070

$3.59

43

SEAL This part replaces 13651-51010.

13651-51011

$2.20

44

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

45

SPRING

13271-93011

$5.32

46

BRACKET

13621-24B01

$50.10

47

SCREW, THROTTLE This part replaces 13605-45420.

02112-0510A

$1.49

48

SCREW, PILOT (1,1/8) | 3 1/4 This part replaces 13269-37410.

13269-37400

$11.36

49

.SPRING (NT:45)

13268-47070

$4.34

50

WASHER

13291-29900

$1.98

51

O-RING This part replaces 13295-29900.

13295-29901

$4.34

52

HOSE ASSY This part replaces 13318-24B00.

13318-24C01

$18.56

53

HOSE,5X10X600 | L:550->250 This part replaces 13684-22A00.

44421-13ER0

$10.06
