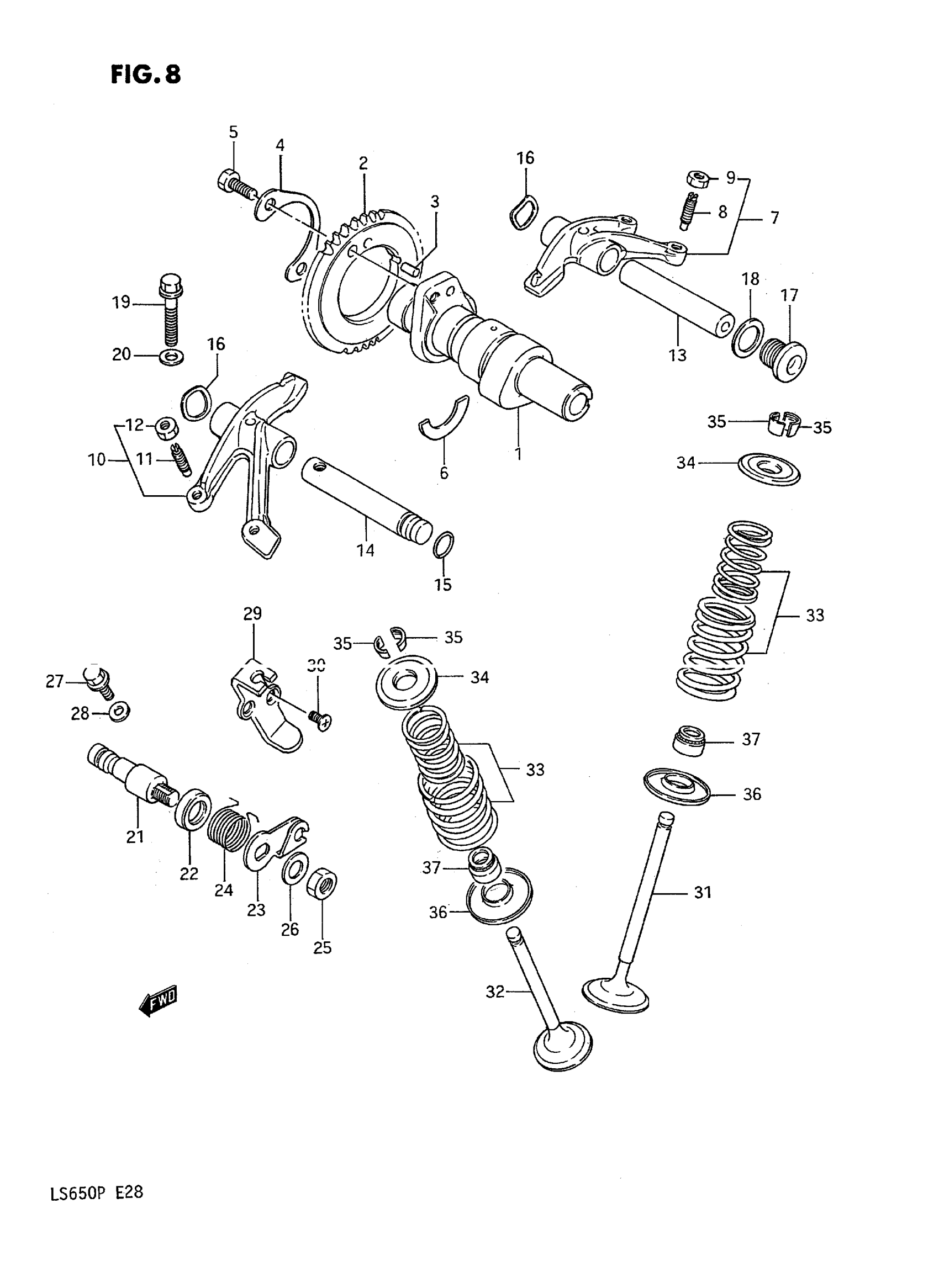

Find the part on the CAM Shaft - Valve diagram for your 1995 Suzuki LS650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LS650F CAM Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT This part replaces 12711-24B03.

12711-24B05

1
Out of stock

2

SPROCKET (NT:38)

12741-24B00

1
Out of stock

3

PIN

09261-05009

1
Out of stock

4

WASHER This part replaces 12747-44000.

12747-44001

1
Out of stock

5

BOLT (6X16)

09111-06053

2
Out of stock

6

C RING

09390-25003

1
Out of stock

7

ARM, VALVE ROCKER INTAKE | ~E.NO.106292 This part replaces 12840-37400.

12840-07F00

1
Out of stock

7

ARM, VALVE ROCKER INTAKE | E.NO.106293~; Includes Item(s) 8 - 9 This part replaces 12840-37401.

12840-07F00

1
Out of stock

8

.SCREW, TAPPET ADJUSTING

12842-32411

2
Out of stock

9

.NUT, ADJUSTING SCREW

12843-32400

2
Out of stock

10

ARM, VALVE ROCKER EXHAUST | ~E.NO.106292 This part replaces 12850-24B00.

12850-07F00

1
Out of stock

10

ARM, VALVE ROCKER EXHAUST | E.NO.106293~; Includes Item(s) 11 - 12 This part replaces 12850-24B01.

12850-07F00

1
Out of stock

11

.SCREW, TAPPET ADJUSTING

12842-32411

2
Out of stock

12

.NUT, ADJUSTING SCREW

12843-32400

2
Out of stock

13

SHAFT, ROCKER ARM IN | L:73

12861-12D00

1
Out of stock

14

SHAFT, ROCKER ARM EX | L:78.5

12871-14A00

1
Out of stock

15

.O RING (D:1.9,ID:8.6)

09280-09005

1
Out of stock

16

WASHER

09164-12018

2
Out of stock

17

PLUG, CYLINDER HEAD | MODEL G This part replaces 09248-14004.

09248-14010

1
Out of stock

17

PLUG, SHAFT | MODEL J/K/L/M/N/P This part replaces 09248-14005.

09248-14011

1
Out of stock

18

GASKET

09168-14004

1
Out of stock

19

BOLT This part replaces 01517-06307.

01550-06307

1
Out of stock

20

GASKET

09168-06023

1
Out of stock

21

SHAFT, DECOMP

12941-24B01

1
Out of stock

22

OIL SEAL (10X20X6)

09282-10012

1
Out of stock

23

LEVER, DECOMP SHAFT

12942-24B00

1
Out of stock

24

SPRING

09448-17020

1
Out of stock

25

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

1
Out of stock

26

WASHER This part replaces 08322-11084.

08322-0108A

1
Out of stock

27

BOLT (6X16)

09103-06090

1
Out of stock

28

GASKET

09168-06023

1
Out of stock

29

HOLDER, DECOMP CABLE

12944-24B00

1
Out of stock

30

SCREW This part replaces 02122-05106.

02122-0510A

2
Out of stock

31

VALVE, INTAKE

12911-24B01

2
Out of stock

32

VALVE, EXHAUST

12912-24B01

2
Out of stock

33

SPRING SET, VALVE

12920-37402

4
Out of stock

34

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

4
Out of stock

35

COTTER, VALVE

12932-82000

8
Out of stock

36

SEAT,VALVE SPRI This part replaces 12933-37400.

12933-37401

4
Out of stock

37

OIL SEAL

09289-07002

4
Out of stock
