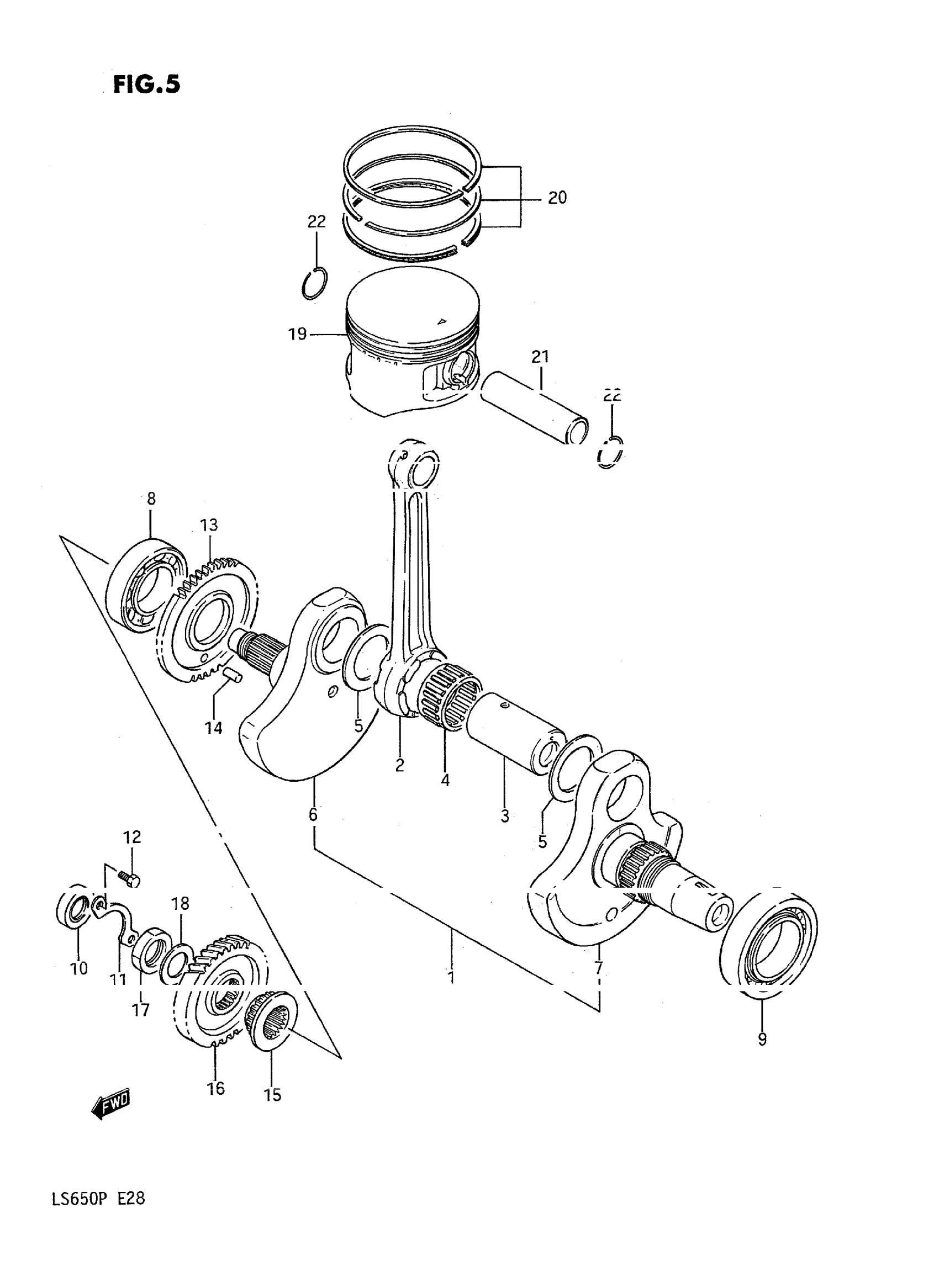

Suzuki LS650F (1995) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-24B05

Unavailable

2

ROD, CONNECTING

12161-24B01-0C0

$175.28

3

PIN, CRANK

12210-24B01-0A0

$77.42

4

BEARING (37X47X25) This part replaces 09263-37002.

09263-37004-0B0

$60.07

5

WASHER

09160-37006

$11.52

6

CRANKSHAFT, RH This part replaces 12221-24B01.

12221-24B02

Unavailable

7

CRANKSHAFT, LH

12261-24B02

Unavailable

8

BEARING, RH (35X72X17)

09262-35038

$42.19

9

BEARING, LH (40X80X18)

09264-40002

$163.68

10

OIL SEAL (16X30X6)

09282-16002

$8.79

11

PLATE, RH

12548-24B00

Unavailable

12

BOLT This part replaces 01104-05088.

01500-05087

$2.16

13

GEAR, BALANCER DRIVE | NT:47

12661-24B00

Unavailable

14

PIN

04221-08149

$1.98

15

SPROCKET, CAM CHAIN DRIVE | NT:19

12731-24B00

$77.42

16

GEAR, PRIMARY DRIVE (NT:36)

21111-24B00

Unavailable

17

NUT This part replaces 09140-20008.

09140-20013

$3.90

18

LOCK WASHER

09164-20003

$4.18

19

PISTON This part replaces 12111-24B01.

12111-24B01-0F0

$151.13

19

PISTON SET (OS:0.5) | OPT This part replaces 12111-24B01-050.

12100-24B00-050

$221.55

19

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-24B01-100.

12100-24B00-100

Unavailable

20

RING SET, PISTON This part replaces 12140-14A31.

12140-14A32

$43.14

20

RING SET, PISTON (OS:0.5) | OPT

12140-14A31-050

Unavailable

20

RING SET, PISTON (OS:1.0) | OPT

12140-14A31-100

Unavailable

21

PIN, PISTON

12151-24B00

Unavailable

22

CIRCLIP

09381-23003

$1.52
