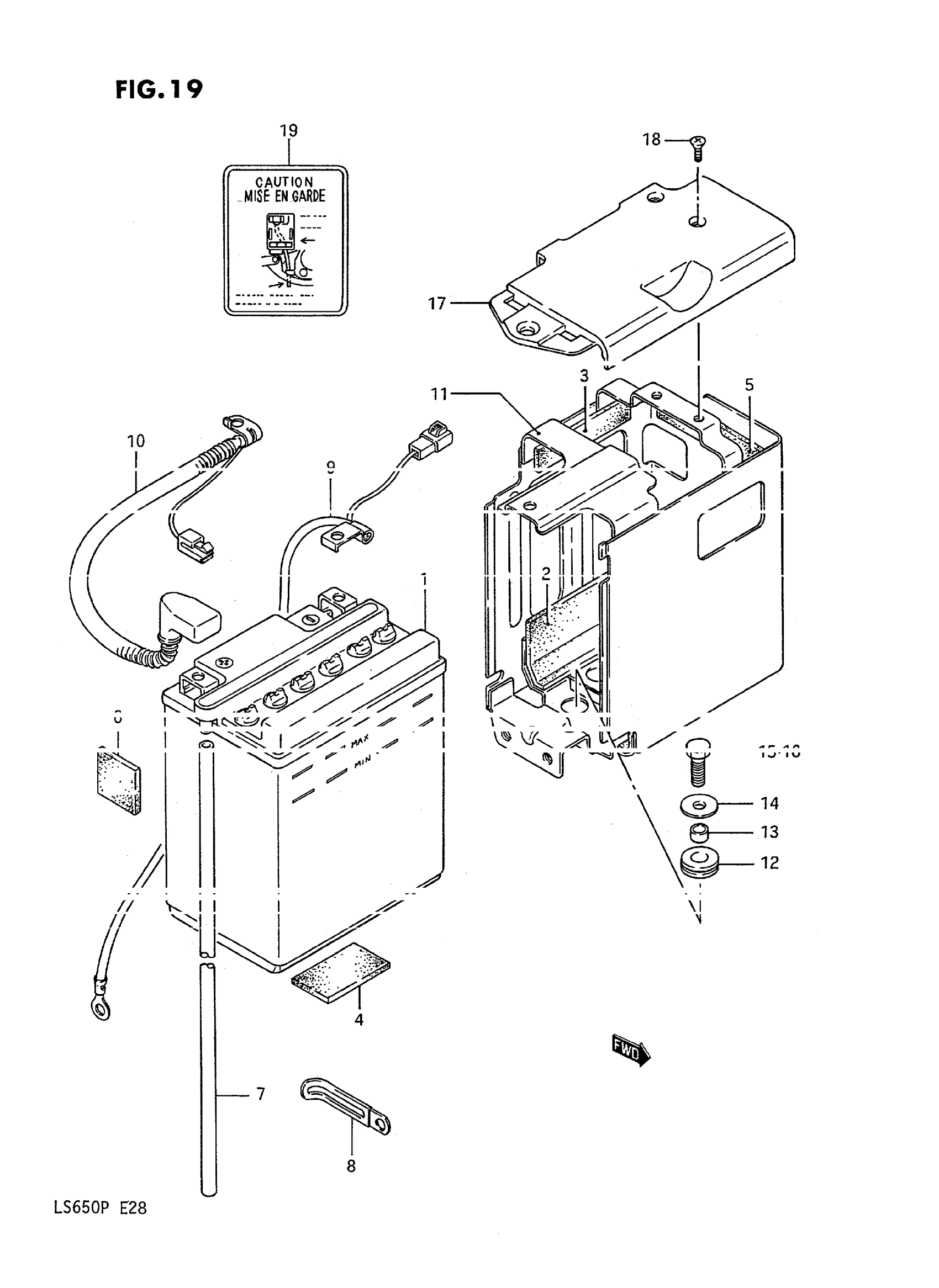

Suzuki LS650F (1995) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,14AH)

33610-05A10

$95.65

2

PROTECTOR | CUT AS REQUIRED PROFILE(50X115)

33651-37000

$4.48

3

PROTECTOR | CUT AS REQUIRED PROFILE(20X90)

33651-37000

$4.48

4

PROTECTOR | CUT AS REQUIRED PROFILE(30X50)

33651-37000

$4.48

5

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

6

PROTECTOR (50X50X5) This part replaces 33652-24B00.

33652-20C00

$2.99

7

HOSE,BATTERY EX This part replaces 33680-17300.

33680-16A11

$6.78

8

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

$1.83

9

LEAD WIRE, BATTERY (-)

33860-24B00

$22.65

10

LEAD WIRE, BATTERY (+)

33870-24B00

$23.73

11

HOLDER, BATTERY This part replaces 41540-24B00.

41540-24B01

$101.35

12

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

13

SPACER This part replaces 09180-06111.

09180-06260

$3.37

14

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

15

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

16

BOLT, REAR (6X20)

09128-06030

Unavailable

17

COVER, BATTERY

41576-24B01

$36.17

18

SCREW

02142-04107

$1.49

19

PLATE, CAUTION

33690-24B60

Unavailable
