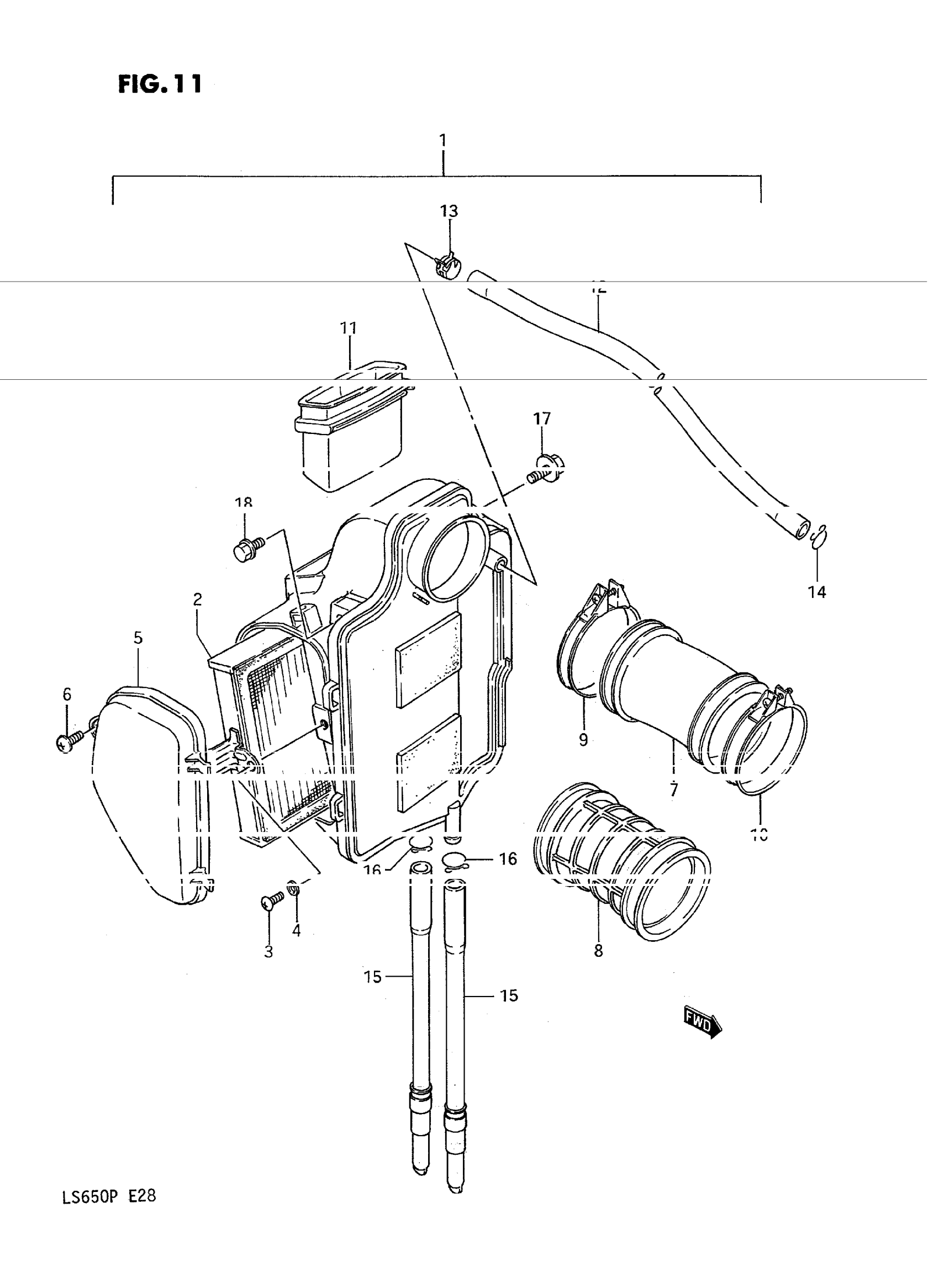

Suzuki LS650F (1995) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | MODEL G This part replaces 13700-24B00.

13700-24B07

$253.93

1

CLEANER ASSY,AI | MODEL J/K/L This part replaces 13700-24B02.

13700-24B07

$253.93

1

CLEANER ASSY,AI | MODEL M/N/P; Includes Item(s) 2 - 16 This part replaces 13700-24B03.

13700-24B07

$253.93

2

FILTER | MODEL G/J/K/L This part replaces 13780-24B00.

13780-24B01

$40.71

2

FILTER | MODEL M/N/P

13780-24B01

$40.71

3

SCREW

02112-05107

$1.49

4

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

5

CAP | MODEL G/J/K/L This part replaces 13740-24B00.

13740-24B01

$21.98

5

CAP | MODEL M/N/P

13740-24B01

$21.98

6

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

7

TUBE,AIR CLEANE | MODEL G This part replaces 13881-24B00.

13881-24B02

$17.69

8

TUBE,AIR CLEANE | MODEL J/K/L/M/N/P This part replaces 13881-24B01.

13881-24B02

$17.69

9

CLAMP This part replaces 09402-70207.

09402-70902

$5.64

10

CLAMP This part replaces 09402-64208.

09402-64203

$6.58

11

TUBE, INLET

13891-24B00

Unavailable

12

HOSE | L:450->430 This part replaces 13851-00450.

09352-11154-600

$13.05

13

CLIP This part replaces 13824-43400.

09401-14404

$2.28

14

CLIP

09401-14301

$2.35

15

TUBE,DRAIN This part replaces 13870-11267.

13870-11459

$15.51

16

CLIP This part replaces 13824-00A00.

09401-13409

$2.12

17

BOLT

09116-06088

Unavailable

18

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97
