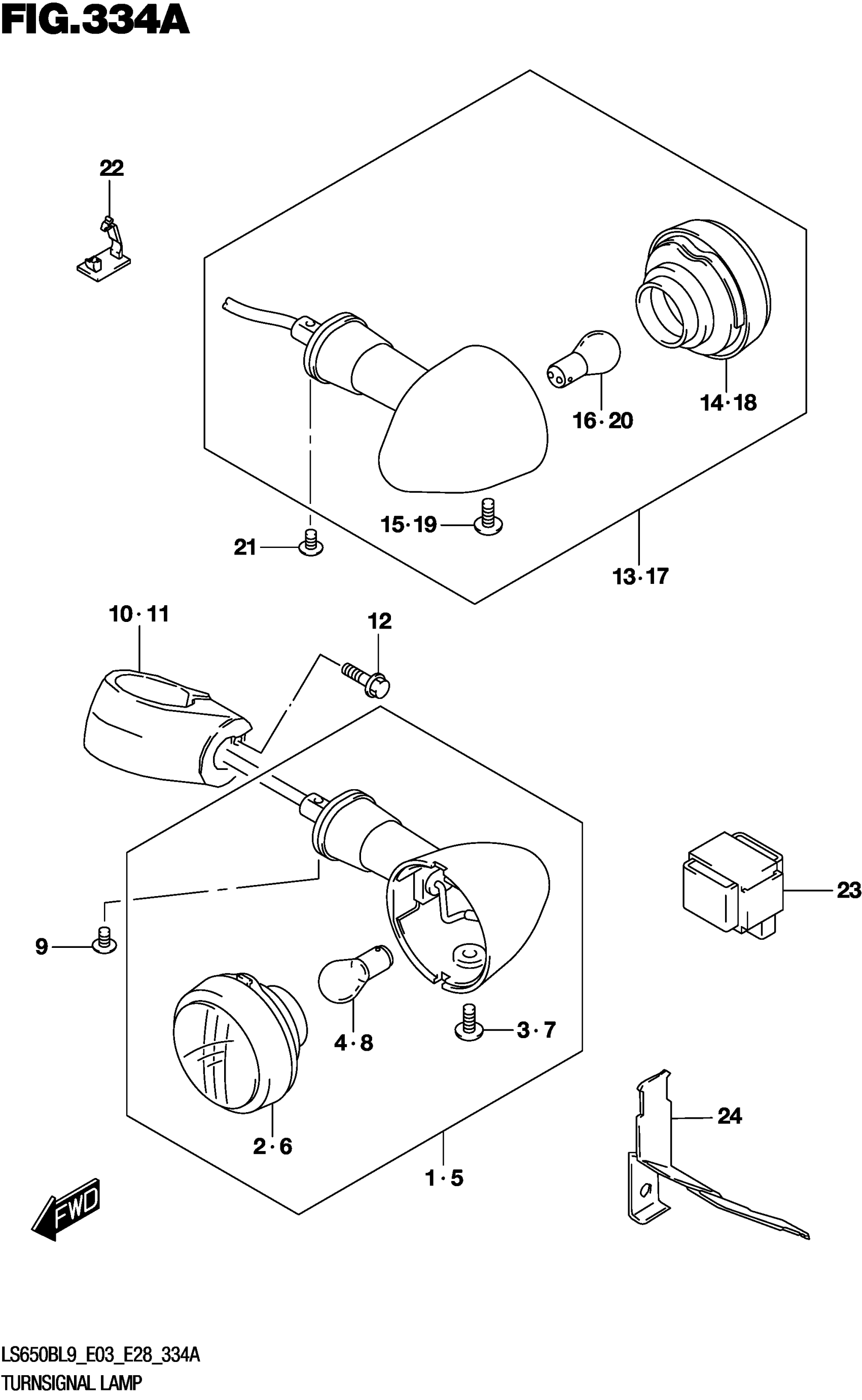

Suzuki LS650BL9 (2019) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY

35601-38AD0

$156.67

2

.LENS

35610-38AA0

$30.10

3

.SCREW (4X10)

35623-38AA0

$4.89

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.26

5

LAMP ASSY

35602-38AD0

$112.28

6

.LENS

35630-38AA0

$30.53

7

.SCREW (4X10)

35623-38AA0

$4.89

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.26

9

SCREW

02142-0610A

$1.43

10

BRACKET

35671-24BB0

$48.73

10

BRACKET

35671-24BB0

$48.73

11

BRACKET

35681-24BB0

$48.73

11

BRACKET

35681-24BB0

$48.73

12

BOLT

01547-0525A

Unavailable

13

LAMP ASSY

35603-38AA0

$107.61

14

.LENS

35630-38AE1

$30.53

15

.SCREW (4X10)

35623-38AA0

$4.89

16

.BULB (12V21W)

09471-12045

$3.06

17

LAMP ASSY

35604-38AA0

$107.61

18

.LENS

35610-38AE1

$30.10

19

.SCREW (4X10)

35623-38AA0

$4.89

20

.BULB (12V21W)

09471-12045

$3.06

21

SCREW

02142-0616A

$1.41

22

CLAMP

09403-04310

$5.82

23

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$66.55

24

BRACKET

38621-24B10

Unavailable
