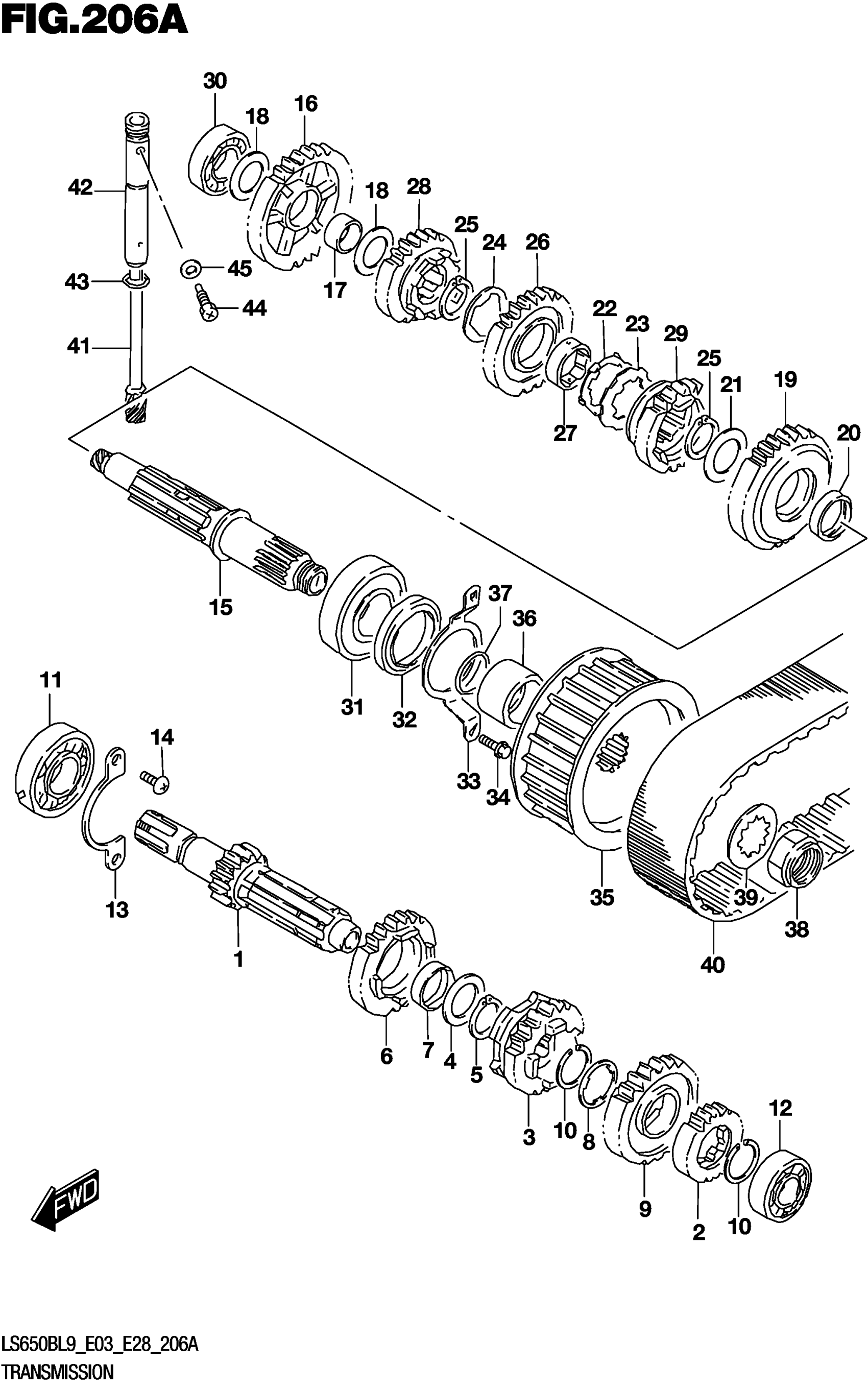

Suzuki LS650BL9 (2019) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:15)

24121-24B12

Unavailable

2

GEAR

24221-24B21

Unavailable

3

GEAR

24231-24B30

Unavailable

4

WASHER (T:1.0)

08211-25351

$3.72

5

SNAP RING

09380-25003

$3.04

6

GEAR

24241-24B20

Unavailable

7

BUSH

24252-19F00

$17.12

8

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

9

GEAR

24251-24B13

Unavailable

10

CIRCLIP

09380-25010

$2.91

11

BEARING (22X56X16) | RH

09262-22028

$77.48

12

BEARING (17X40X12) | LH

09262-17027

$35.28

13

RETAINER

24741-24B00

Unavailable

14

SCREW

02112-0612A

$1.49

15

DRIVE SHAFT

24130-24B12

$216.17

16

GEAR

24311-24B11

Unavailable

17

BUSH (20X24X13)

09300-20032

$17.50

18

SHIM (20X30X1)

09181-20195

$2.60

19

GEAR

24321-24B20

Unavailable

20

BUSH,25X29X8 (25X29X8)

09300-25020

$16.87

21

WASHER (T:1.0)

08211-25351

$3.72

22

WASHER (25.1X37X2.5) | RH

09169-25001

$2.70

23

WASHER,LOCK (25.1X41X1.5) | LH

09167-25013

$3.30

24

WASHER,LOCK (25.5X35X1)

09167-25016

$3.72

25

SNAP RING

09380-25003

$3.04

26

GEAR

24331-24B20

Unavailable

27

BUSH,DRIVEN GEAR

24332-24510

$18.67

28

GEAR

24341-24B20

Unavailable

29

GEAR

24351-24B13

Unavailable

30

BEARING (20X42X12) | RH

09262-20106

$29.35

31

BEARING (25X62X17) | LH

09262-25125

$59.09

32

OIL SEAL (36X50X6)

09283-36003

$12.61

33

RETAINER

24751-24B00

$7.37

34

BOLT

01547-0612A

$2.03

35

PULLEY

27510-24B01

$143.78

36

SPACER

27531-24B00

$31.72

37

O-RING (D:2.4,ID:23.7)

09280-24010

$5.64

38

NUT

09159-20004

$15.67

39

LOCK WASHER

09167-25027

$2.06

40

BELT

27611-24B00-133

$301.62

41

GEAR

26131-24B00

Unavailable

42

SLEEVE

26481-24B01

Unavailable

43

O RING (D:1.3

09280-10001

$2.02

44

BOLT (6X10)

09135-06501

$3.04

45

GASKET (6.2X11X1.2)

09168-06004

$1.49
