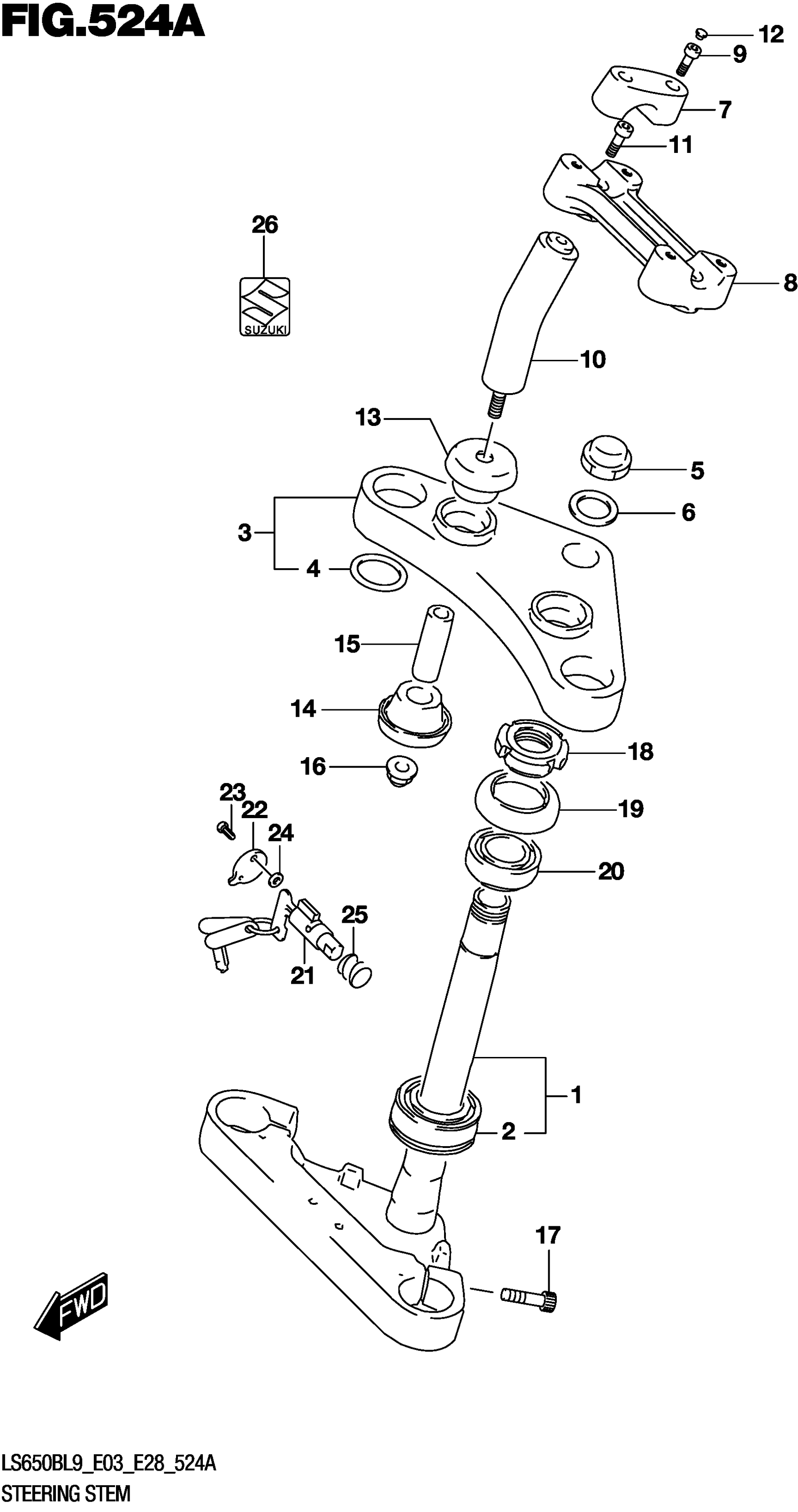

Suzuki LS650BL9 (2019) STEERING STEM Diagram

#

Description
Price

1

STEM

51410-24B70

$533.38

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

HEAD

51310-24B70

$385.45

4

.WASHER

51357-24B00

Unavailable

5

NUT

51353-24B10

Unavailable

6

WASHER (22.5X32X1.6)

51356-24B01

$5.38

7

HOLDER

56211-24B70

Unavailable

8

HOLDER

56221-24B70

$117.07

9

BOLT

07130-08307

$3.89

10

ARM

56231-24B70

$134.02

11

BOLT

07130-10257

$4.60

12

CAP (OD:14.5)

09250-06004

$1.49

13

CUSHION

56240-24B00

$41.63

14

CUSHION

56240-24B10

$41.63

15

SPACER (10.2X14X46)

09180-10065

$5.28

16

NUT

08319-31107

$2.73

17

BOLT

07130-10307

$4.41

18

NUT,STEERING STEM (25X44X10)

51631-28000

$17.37

19

SEAL,STEERING UPR DUST (33.6X

51643-49002

$12.32

20

BEARING (25X47X15)

09265-25019

$56.53

21

LOCK ASSY STEERING

51900-29F00

$207.90

22

CAP STEERING LOCK

51912-29F00

$6.23

23

PIN STEERING LOCK

51913-29F00

$5.02

24

WASHER STEERING LOCK

51914-29F00

$4.82

25

SPRING STEERING LOCK

51931-29F00

$4.33

26

EMBLEM,S

68281-47HA0

$7.77
