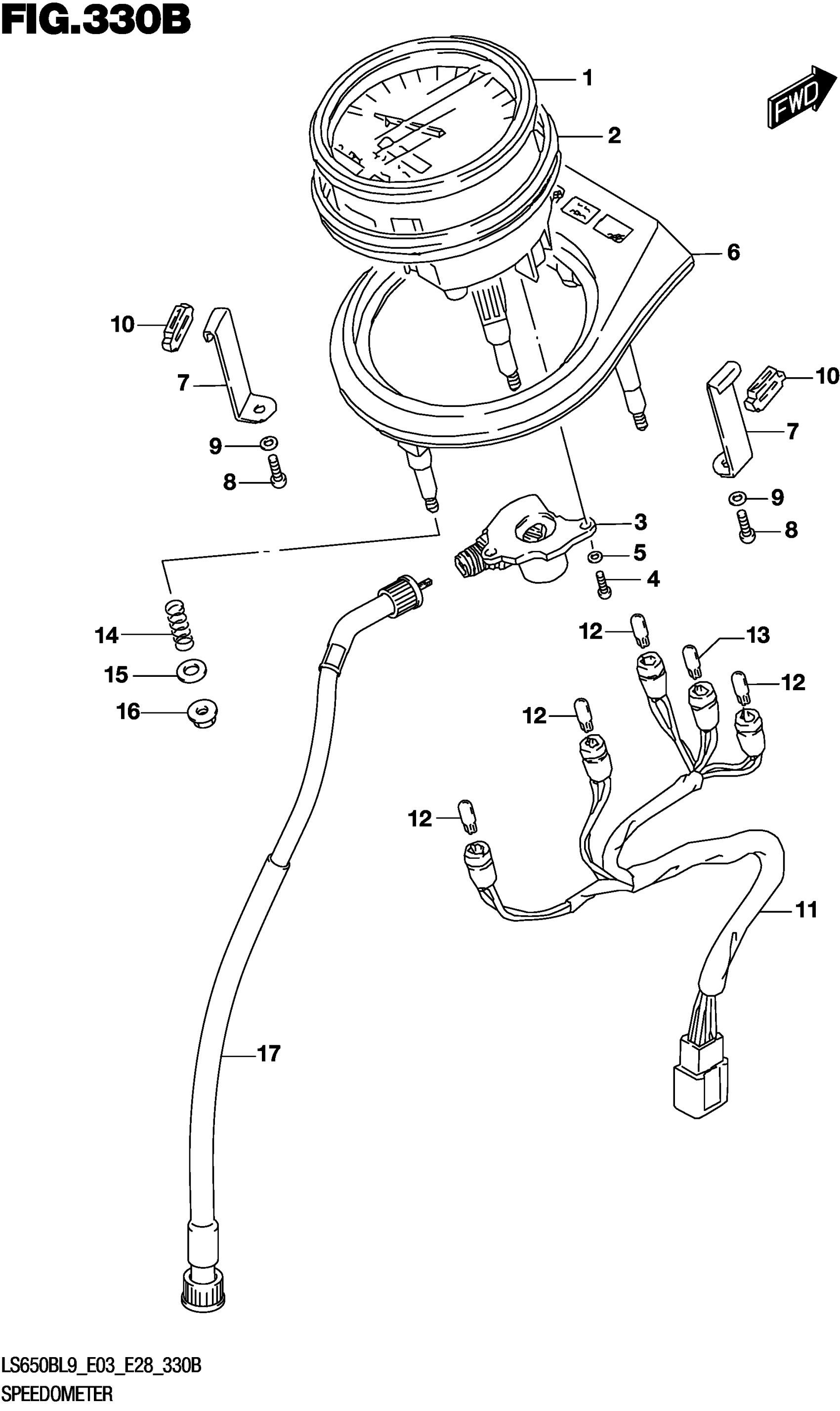

Suzuki LS650BL9 (2019) SPEEDOMETER (LS650BL9 E28) Diagram

#

Description
Price

1

SPEEDOMETER (KILO)

34110-24C31

Unavailable

2

CUSHION

34288-24B80

$17.37

3

BOX

34131-19B00

Unavailable

4

SCREW

02112-04087

$1.49

5

LOCK WASHER

08321-0104A

$1.84

6

HOOD

34151-24B51

Unavailable

7

BRACKET

34111-24B80

Unavailable

8

SCREW

02112-04087

$1.49

9

LOCK WASHER

08321-0104A

$1.84

10

CUSHION

34189-24B80

$4.87

11

SOCKET

34170-24B20

Unavailable

12

BULB (12V

09471-12103

$3.83

13

.BULB (12V1.7W)

09471-12108

$3.42

14

SPRING

09440-11022

$2.53

15

WASHER

09160-05048

$2.02

16

NUT

08361-1505B

$2.38

17

CABLE ASSY

34910-24B10

$70.92
