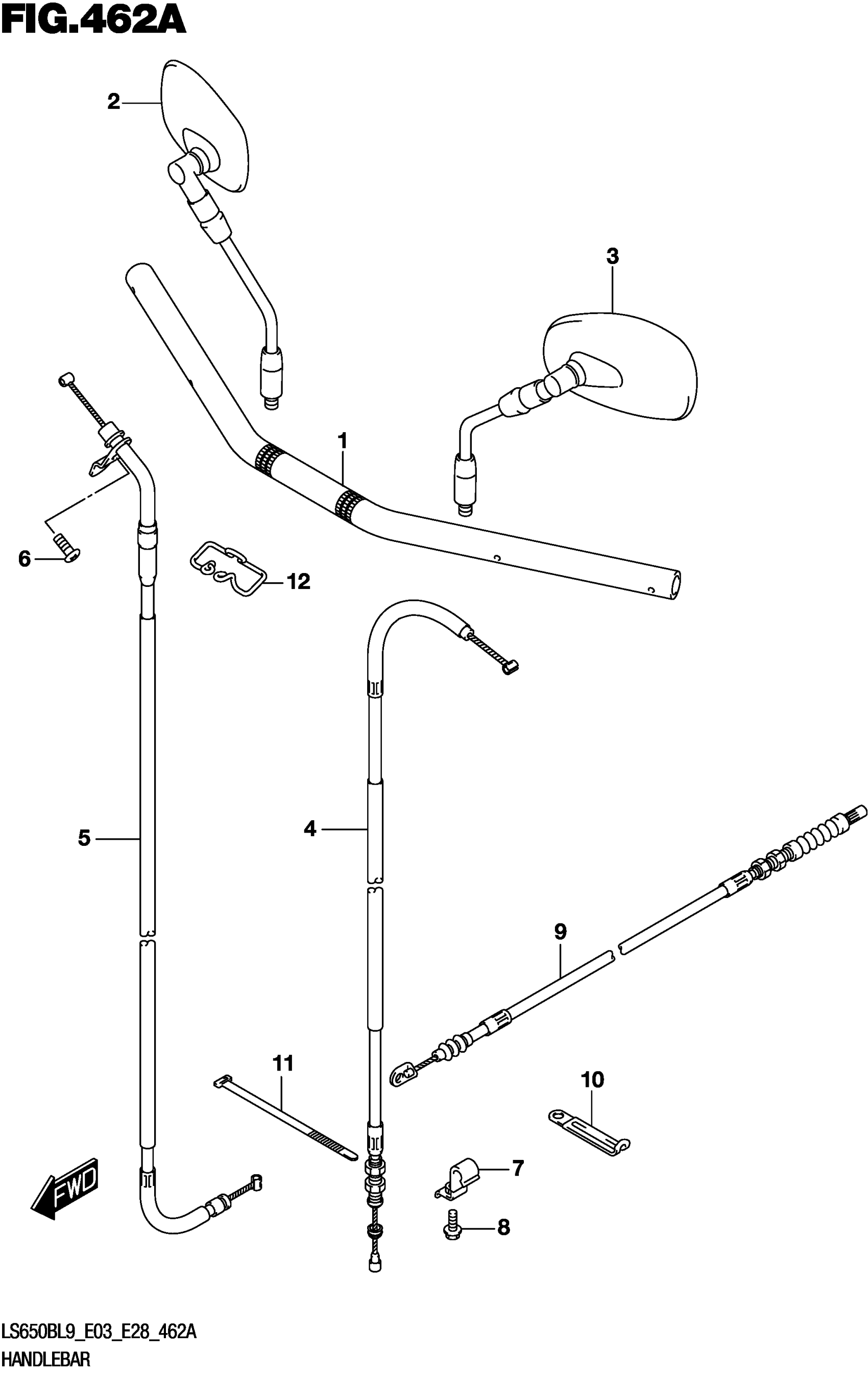

Suzuki LS650BL9 (2019) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-24CA0

$188.08

2

MIRROR ASSY

56500-24BA0

$127.82

3

MIRROR ASSY

56600-24BA0

$127.82

4

CABLE ASSY

58200-24C00

$29.34

5

CABLE ASSY

58300-24C00

$40.47

6

SCREW (5X10)

09139-05033

$2.20

7

CLAMP

58620-24B00

Unavailable

8

BOLT

01550-0616A

$1.97

9

CABLE

58830-24B01

$28.85

10

CLAMP (L:65) This part replaces 09404-08418.

09404-08421

$2.07

11

CLAMP (L:145)

09407-14407

$3.57

12

GUIDE

58621-24CA0

Unavailable
