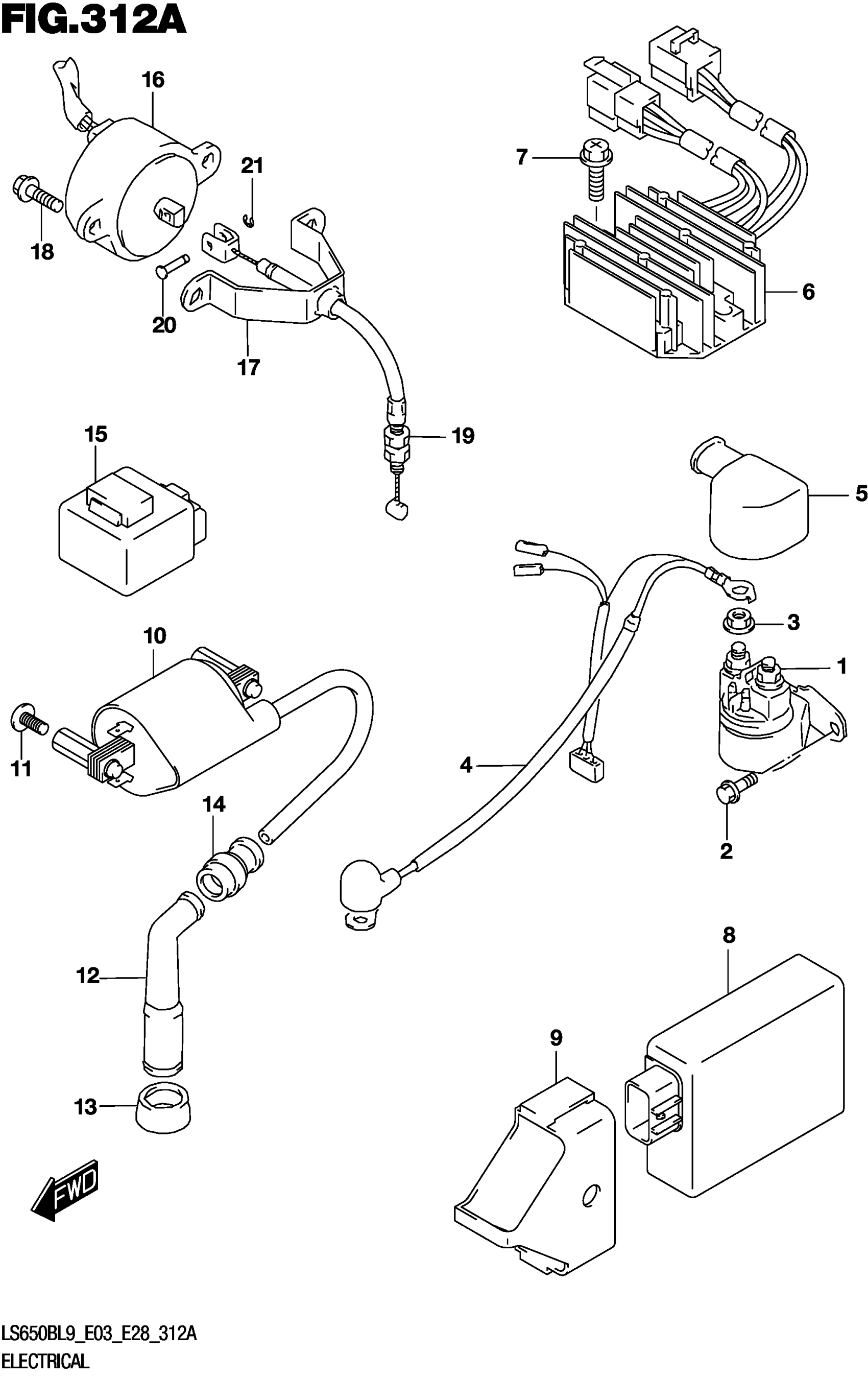

Suzuki LS650BL9 (2019) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY

31800-49100

$97.31

2

BOLT

01550-0610A

$1.97

3

NUT

08361-3506A

$1.80

4

WIRE

33850-24B10

$50.10

5

CAP

33624-49401

$7.20

6

RECTIFIER ASSY

32800-24B11

$287.02

7

SCREW

02162-0620C

$1.71

8

IGNITER ASSY

32900-24B30

$891.47

9

CUSHION

32980-24B00

$11.60

10

COIL ASSY

33410-24B00

$163.13

11

.SCREW

02142-0512A

$1.49

12

CAP

33510-45010

$24.99

13

SEAL, SPARK PLUG

33541-38210

$4.68

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

15

CONTROL UNIT

32910-24B10

$122.34

16

SOLENOID ASSY

33970-24B00

$339.65

17

BRACKET

33971-24B00

Unavailable

18

BOLT

01550-0616A

$1.97

19

CABLE ASSY

58900-24B01

$24.20

20

PIN (4X12.5)

09209-04020

Unavailable

21

E RING

08332-1103A

$2.15
