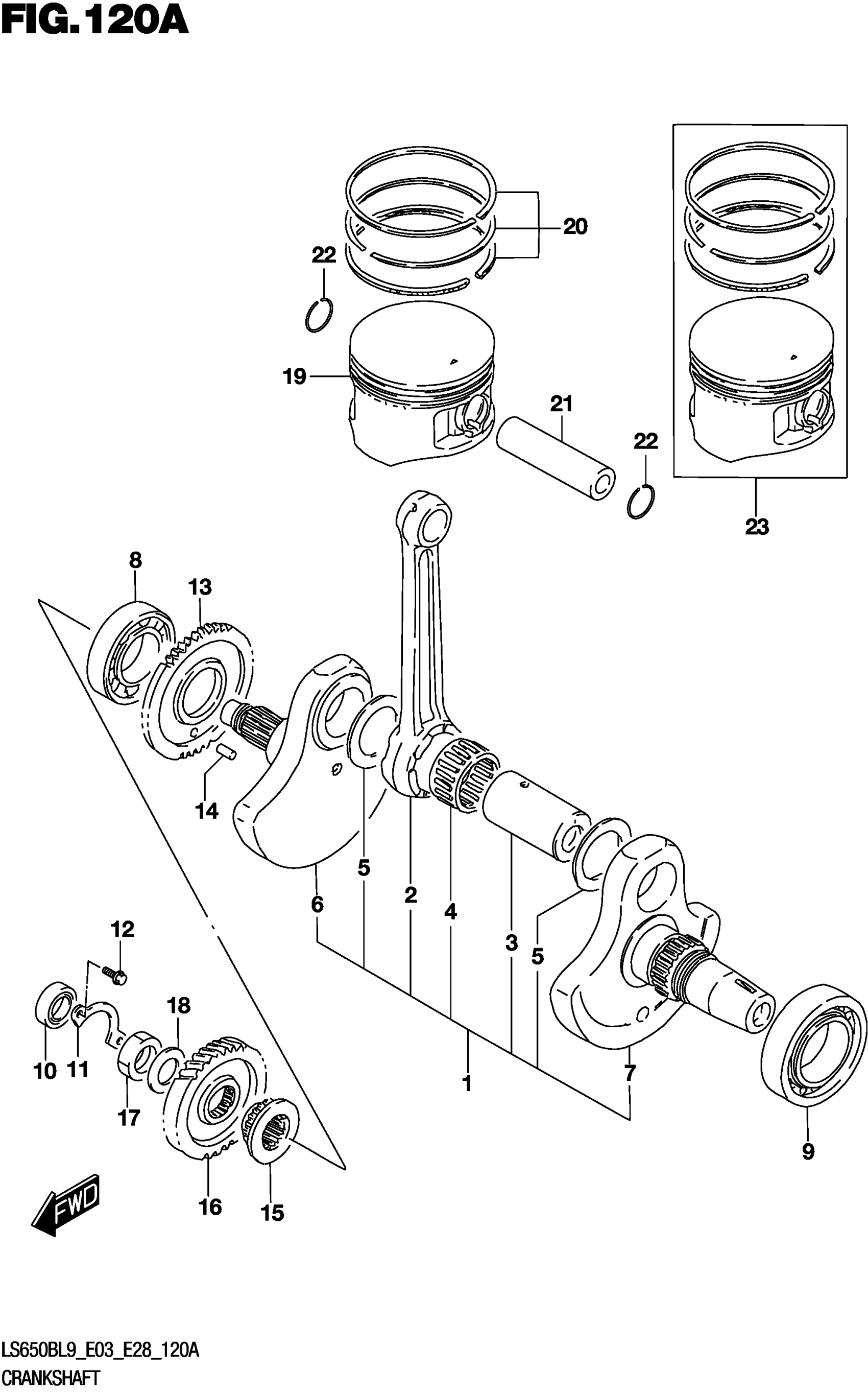

Suzuki LS650BL9 (2019) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-24B05

Unavailable

2

.CONNROD

12161-24B01-0C0

$156.07

3

.PIN

12210-24B01-0A0

$68.60

4-1

.BEARING (37X47X25) | BLUE

09263-37004-0B0

$55.27

4-2

.BEARING (37X47X25) | RED

09263-37004-0C0

$53.23

5

.WASHER (37X55X1)

09160-37006

$10.58

6

.CRANKSHAFT

12221-24B02

Unavailable

7

.CRANKSHAFT

12261-24B02

Unavailable

8

BEARING (35X72X17) | RH

09262-35038

$46.10

9

BEARING (40X80X18) | LH

09264-40002

$150.62

10

OIL SEAL (16X30X6) | RH

09282-16002

$9.60

11

RETAINER

12548-24B00

Unavailable

12

BOLT

01547-0508A

Unavailable

13

GEAR

12661-24B00

Unavailable

13

GEAR

12661-24B00

Unavailable

14

PIN

04221-08149

$1.96

15

SPROCKET

12731-24B00

$68.60

15

SPROCKET

12731-24B00

$68.60

16

GEAR

21111-24B10

Unavailable

17

NUT

09140-20013

$4.26

18

WASHER

09164-20003

$3.85

19

PISTON

12111-24B01-0F0

$135.82

20

RING SET

12140-14A32

$45.82

21

PIN,PISTON

12151-14A01

$23.40

22

CIRCLIP

09381-23003

$1.49

23

PISTON SET (OS:0.5) | OPT

12100-24B00-050

$199.10
