2019 Suzuki LS650BL9 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2019 Suzuki LS650BL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

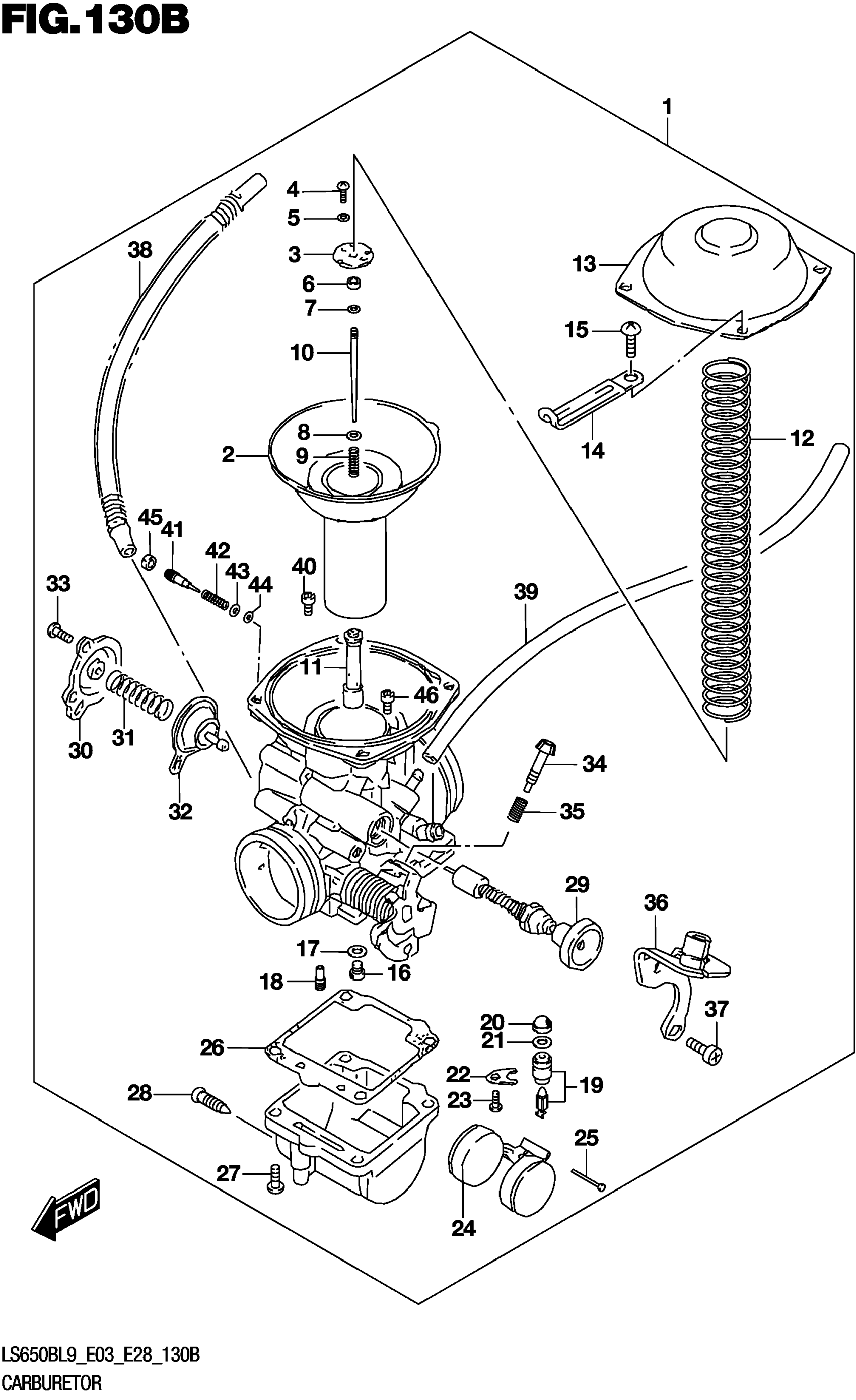

2019 Suzuki LS650BL9 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$803.82

In stock

2

DIAPHRAGM ASSY This part replaces 13500-24B40.

13500-24B41

1
Out of stock

3

.PLATE

13389-37400

1

$7.98

In stock

4

.SCREW

02112-0306B

2
Out of stock

5

.LOCK WASHER

08321-2103B

2
Out of stock

6

.RING

13387-44030

1
Out of stock

7

.CLIP,NEEDLE

13394-31210

1
Out of stock

8

.WASHER

13382-44030

1

$3.81

In stock

9

.SPRING

13388-44030

1

$9.17

In stock

10

.NEEDLE

13383-24C40

1
Out of stock

11

.JET

09494-00861

1
Out of stock

12

.SPRING

13503-24B00

1
Out of stock

13

.COVER

13502-37400

1
Out of stock

14

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

15

SCREW

02112-0510A

4
Out of stock

16

.JET

09491-29013

1
Out of stock

17

.WASHER

13382-03110

1

$2.92

In stock

18

.JET

09492-52010

1
Out of stock

19

.VALVE ASSY

13370-24C80

1
Out of stock

20

.FILTER

13376-19F00

1

$10.26

In stock

21

.O RING

13374-35C00

1

$5.97

In stock

22

.PLATE

13373-39110

1
Out of stock

23

.SCREW

02112-0406B

1

$1.67

In stock

24

.FLOAT

13250-37400

1
Out of stock

25

.PIN,FLOAT

13254-92311

1

$2.41

In stock

26

.GASKET

13251-37101

1
Out of stock

27

.SCREW

02112-0516A

4
Out of stock

28

1

$4.97

In stock

29

.PLUNGER ASSY

13411-24C00

1
Out of stock

30

.COVER

13484-38A10

1
Out of stock

31

.SPRING

13481-24B00

1
Out of stock

32

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

1
Out of stock

33

.SCREW

02112-0410A

3
Out of stock

34

.ADJUSTER

13267-25D00

1
Out of stock

35

.SPRING

13271-93011

1
Out of stock

36

.BRACKET ASSY

13621-24B01

1
Out of stock

37

SCREW

02112-0510A

2
Out of stock

38

HOSE ASSY This part replaces 13318-24C00.

13318-24C01

1
Out of stock

39

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

2
Out of stock

40

.JET

09491-46005

1
Out of stock

41

.SCREW

13269-37400

1
Out of stock

42

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

43

.WASHER (14X17)

13291-29900

1
Out of stock

44

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

45

.PLUG

13281-05A00

1
Out of stock

46

.JET (45)

09491-45002

1
Out of stock
