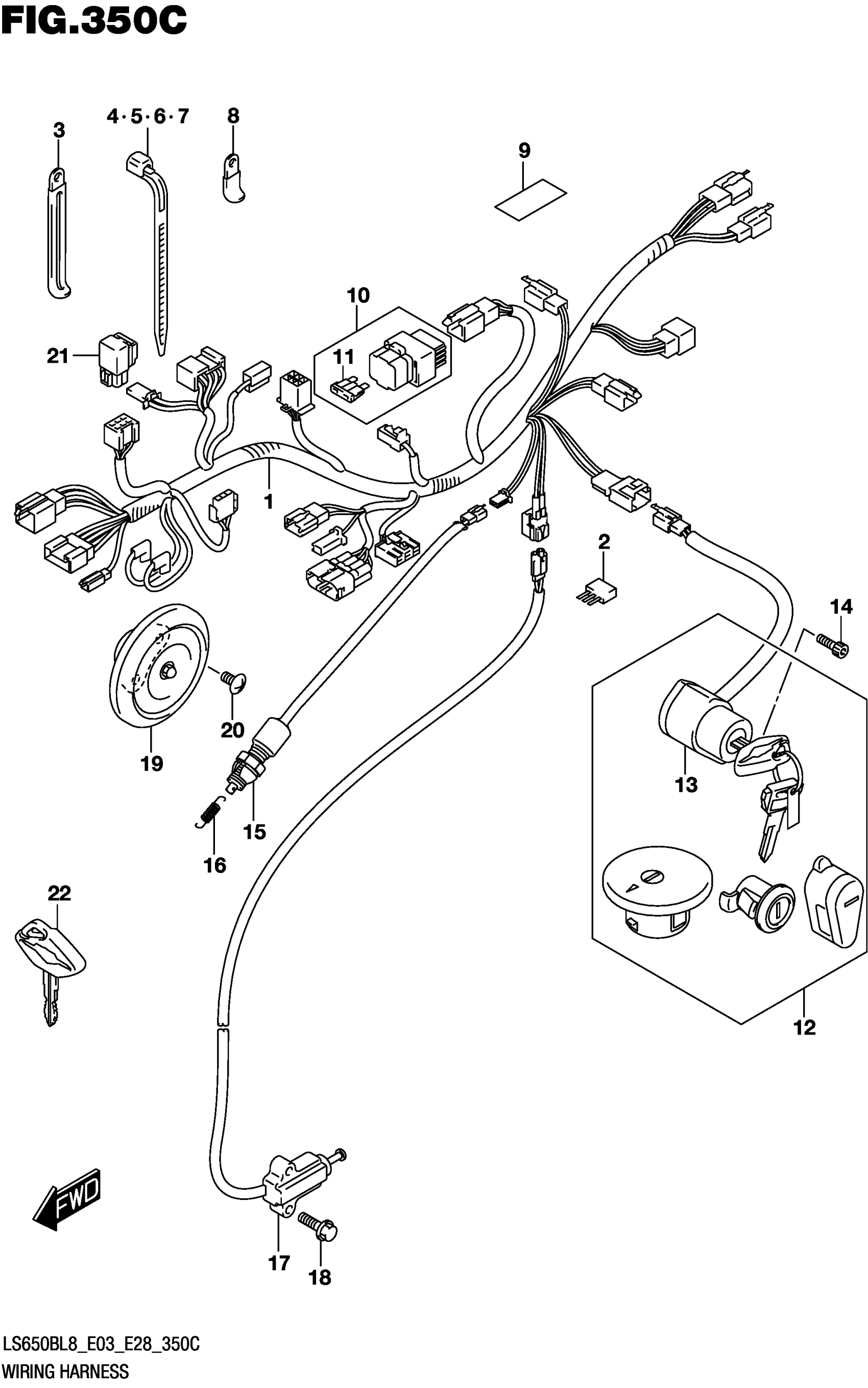

Suzuki LS650BL8 (2018) WIRING HARNESS (LS650BL8 E33) Diagram

#

Description
Price

1

HARNESS

36610-24BD1

$310.10

2

.DIODE

36611-38A10

$13.16

3

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

4

CLAMP (L:95)

09407-11401

$2.63

5

CLAMP (L:125)

09407-14403

$2.26

6

CLAMP (L:165)

09407-18402

$2.19

7

CLAMP (L:235)

09407-25401

$4.66

8

CLAMP

36651-24B10

Unavailable

9

.COVER (30X45X2)

36930-60A10

$2.92

10

FUSE ASSY

36740-24B01

$28.18

11

.FUSE (20A)

09481-20101

$2.12

12

LOCK SET

37101-24860

$336.43

13

.SWITCH ASSY

37110-24B10

$205.55

14

BOLT

07130-0516B

$2.45

15

SWITCH ASSY,STOP LAMP

37740-45D00

$18.27

16

SPRING

09443-06077

$5.60

17

SWITCH ASSY,SID This part replaces 37840-12X50.

37840-12X52

$69.30

18

BOLT

01550-0620B

$2.39

19

HORN ASSY

38500-24B00

$95.62

20

SCREW

02142-0612B

$2.05

21

RELAY ASSY

38740-24X50

$45.20

22-1

KEY | OPT

37146-38B00

$52.58

22-1

KEY | TYPE C

37146-38B00

$52.58

22-2

KEY | OPT

37146-38B10

$52.58

22-2

KEY | TYPE D

37146-38B10

$52.58

22-3

KEY | OPT

37146-38B20

$52.58

22-3

KEY | TYPE E

37146-38B20

$52.58

22-4

KEY | OPT

37146-38B30

$52.58

22-4

KEY | TYPE F

37146-38B30

$52.58
