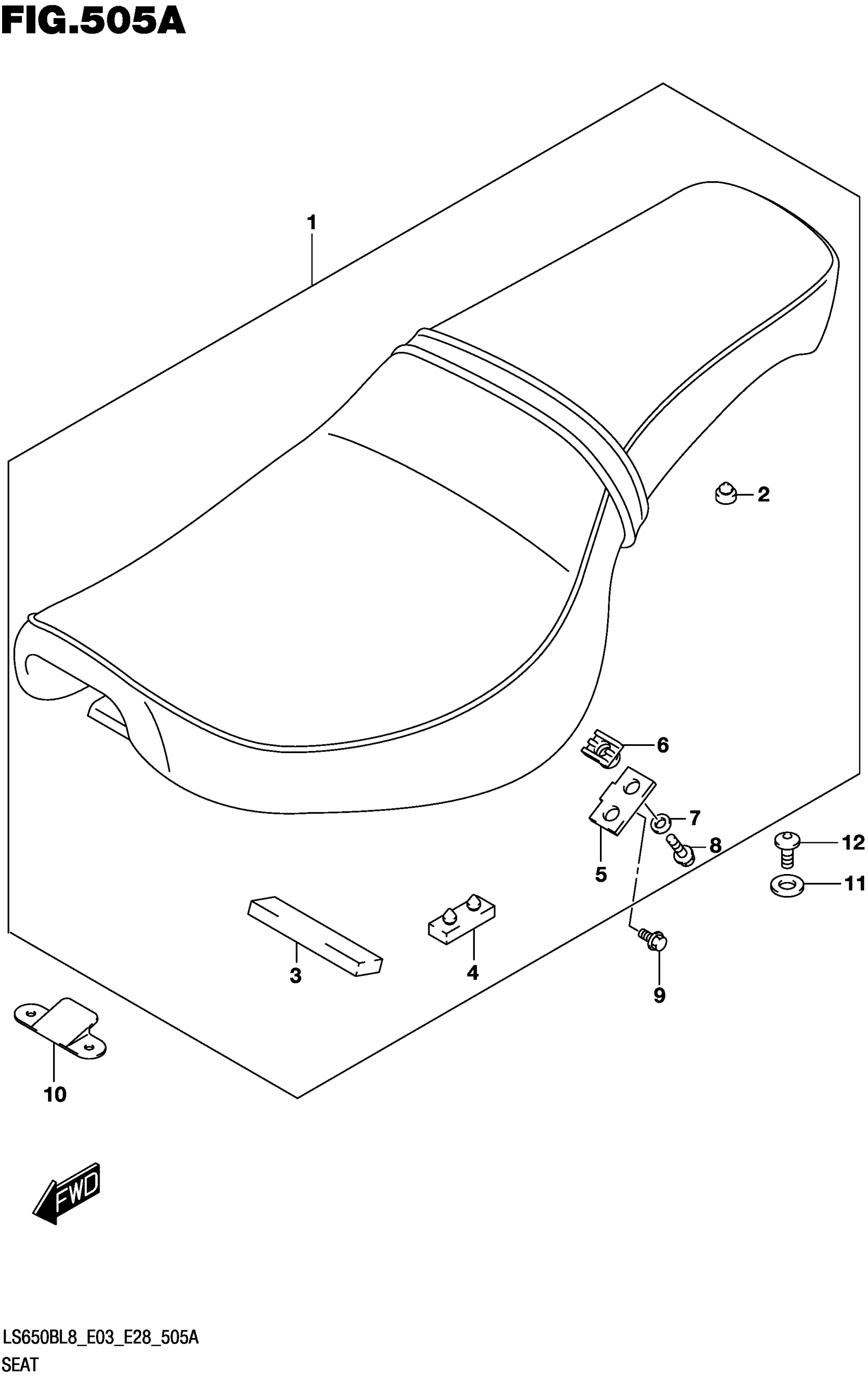

Suzuki LS650BL8 (2018) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-24BA0-HW9.

45100-24BA1-HW9

$336.65

2

CUSHION,SEAT This part replaces 45149-24B00.

45149-24B01

$3.25

3

.CUSHION

45116-24B00

Unavailable

4

.CUSHION

45149-43500

$6.85

5

.BRACKET

45114-24B00

$10.17

6

.CUSHION

45118-24B00

$3.77

7

.WASHER (6.5X20X1.6)

09160-06066

$1.89

8

BOLT

01550-0625B

$2.42

9

BOLT

01550-0612B

$2.39

10

PLATE

45119-24B00

$3.05

11

CUSHION

45149-24BA0

$5.13

12

BOLT (6X12)

09106-06117

$5.10
