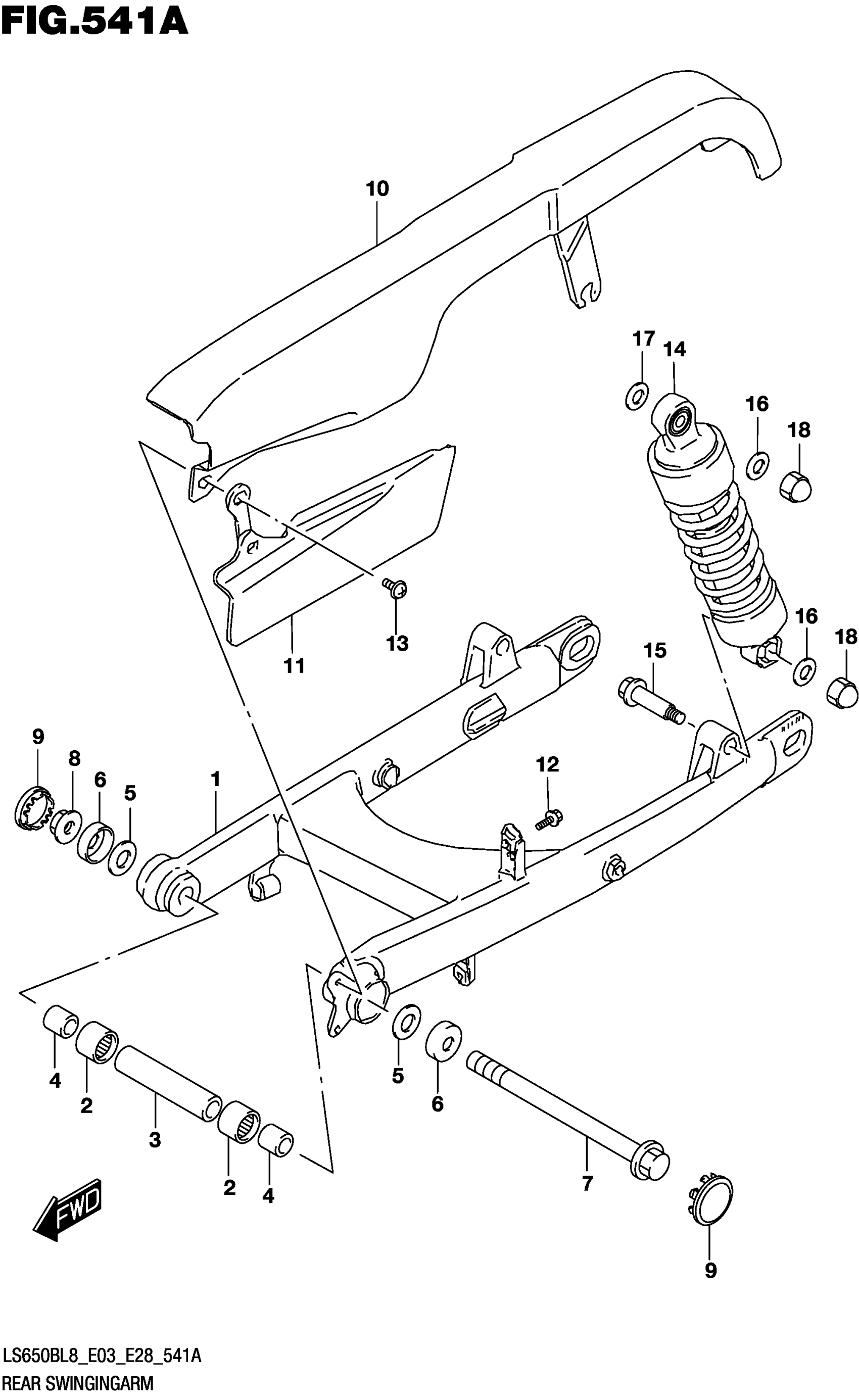

Suzuki LS650BL8 (2018) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM

61100-24B03-019

Unavailable

2

.BEARING (22X29X30)

09263-22017

$22.58

3

SPACER

61282-24B01

Unavailable

3

SPACER

61282-24B01

Unavailable

4

SPACER

61251-24B00

$20.45

4

SPACER

61251-24B00

$20.45

5

WASHER

08211-14341

$3.42

6

DUST SEAL

61262-45002

$7.97

6

DUST SEAL

61262-45002

$7.97

7

SHAFT

61211-24B00

Unavailable

8

NUT

08319-3114A

$9.66

9

CAP

61222-38A01

$13.35

10

BELT CASE

61310-24B10

$358.50

11

BELT CASE

61320-24B10

$178.62

12

BOLT

01550-0612A

$1.97

13

SCREW

02112-7612B

$2.85

14

SHOCK ABSORBER ASSY

62100-24B00

$357.43

15

BOLT

62313-24B00

$10.17

15

BOLT

62313-24B00

$10.17

16

WASHER (10.5X28X2.3)

09160-10035

$1.78

17

WASHER,14.5X29X2.3 (14.5X29X2

09160-14009

$2.82

18

NUT

08313-10107

$2.50
