2018 Suzuki LS650BL8 Rear Fender Diagram

← All diagrams

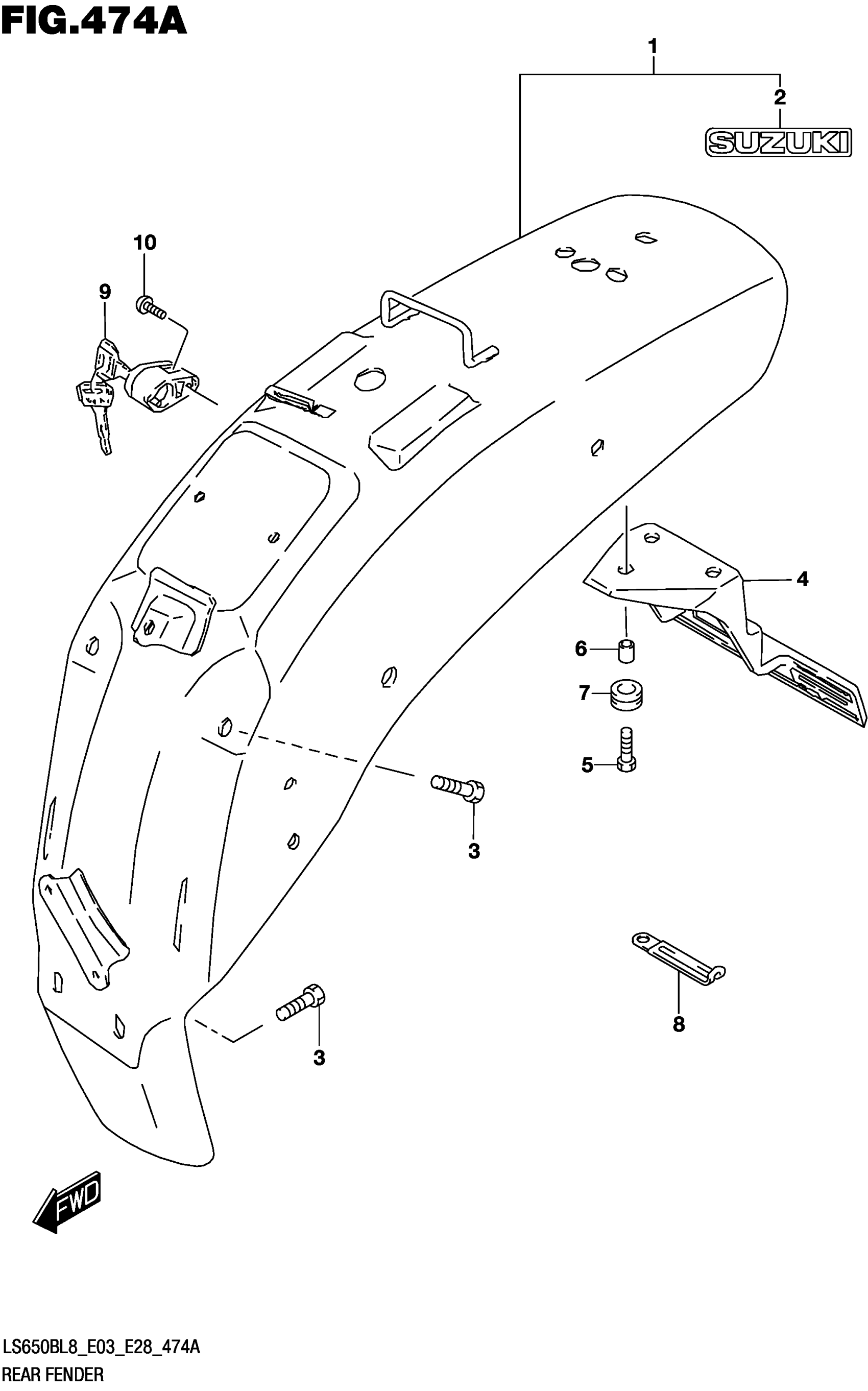

Find the part on the Rear Fender diagram for your 2018 Suzuki LS650BL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki LS650BL8 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER ASSY,REA This part replaces 63100-24C00-YKV.

63100-24C02-YKV

1
Out of stock

2

.EMBLEM

68271-34A00-CRU

1
Out of stock

3

BOLT (8X25)

09103-08419

4
Out of stock

4

BRACKET

35916-24B21

1
Out of stock

5

BOLT (6X20)

09116-06010

3
Out of stock

6

SPACER (6.5X9X9)

09180-06263

3
Out of stock

7

CUSHION (9X18X9.5)

09320-09016

3
Out of stock

8

CLAMP (L:45)

09404-06429

1
Out of stock

9

LOCK SET

95700-38821

1
Out of stock

10

SCREW

02112-0510A

1
Out of stock
