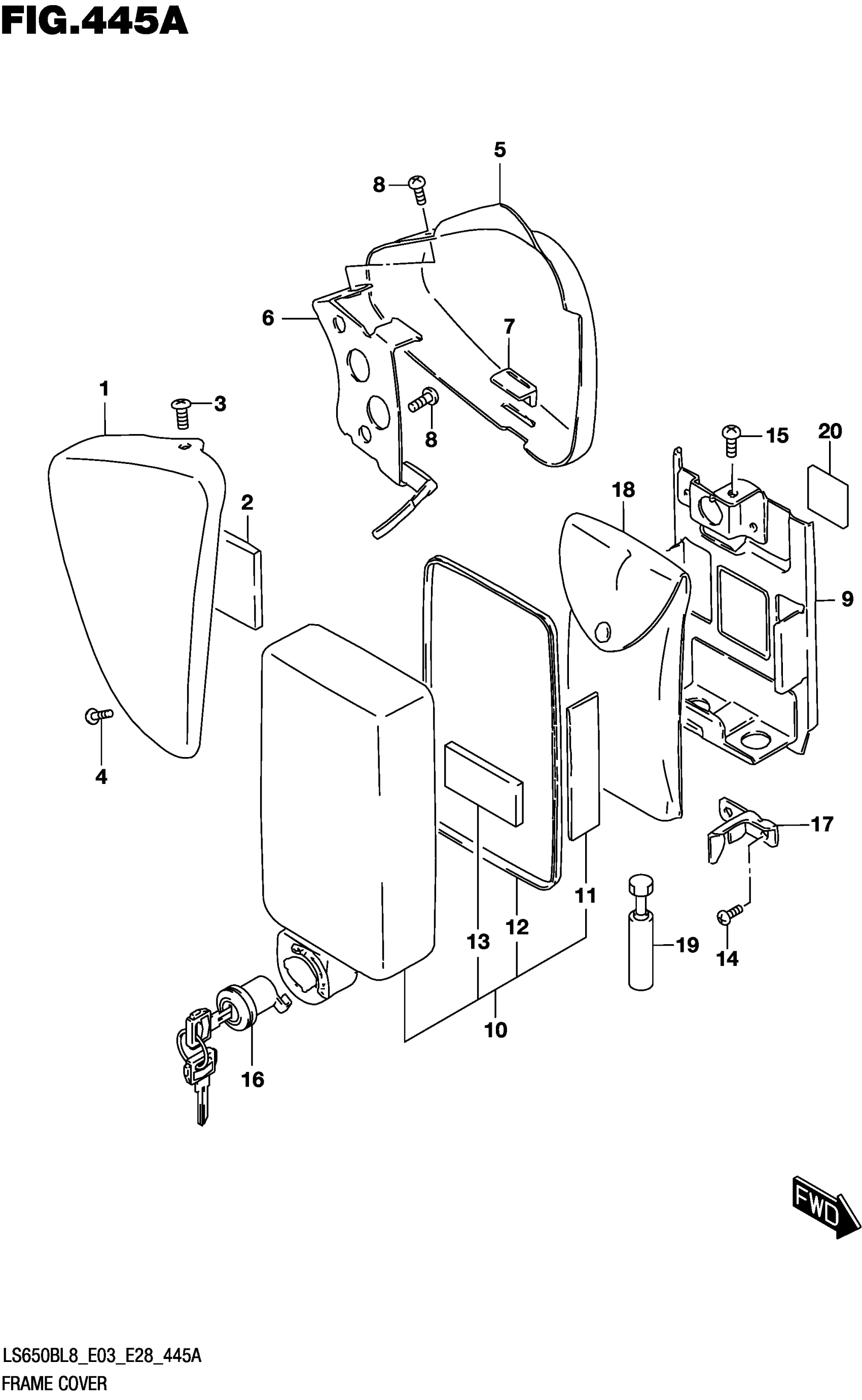

Suzuki LS650BL8 (2018) FRAME COVER Diagram

#

Description
Price

1

COVER ASSY

47100-24CB0-YKV

$136.02

2

CUSHION (40X40X5)

13719-84150

$3.80

3

SCREW This part replaces 02142-0510A.

02142-0510B

$1.82

4

.SCREW

02112-7516A

$2.50

5

COVER ASSY

47200-24CB0-YKV

$136.02

6

BRACKET

47180-24B03

$27.32

7

CUSHION

47117-45000

$2.14

8

SCREW

02122-0612A

$1.46

9

HOLDER

47430-24B01

$20.32

10

COVER

47440-24B30

$65.27

11

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.41

12

.MOLDING

47445-24B00

$3.53

13

.CUSHION

33652-31F00

$3.37

14

SCREW This part replaces 02142-0510A.

02142-0510B

$1.82

15

SCREW

02112-0610A

$1.59

16

LOCK SET

95700-24871

$49.76

17

PLATE

47434-24B00

$4.15

18

TOOL ASSY This part replaces 09800-21055.

09800-21102

$19.15

19

GAUGE ASSY

96220-24B00

$29.80

20

PROTECTOR (50X50X5) | CUT AS REQUIRED

33652-20C00

$2.86
