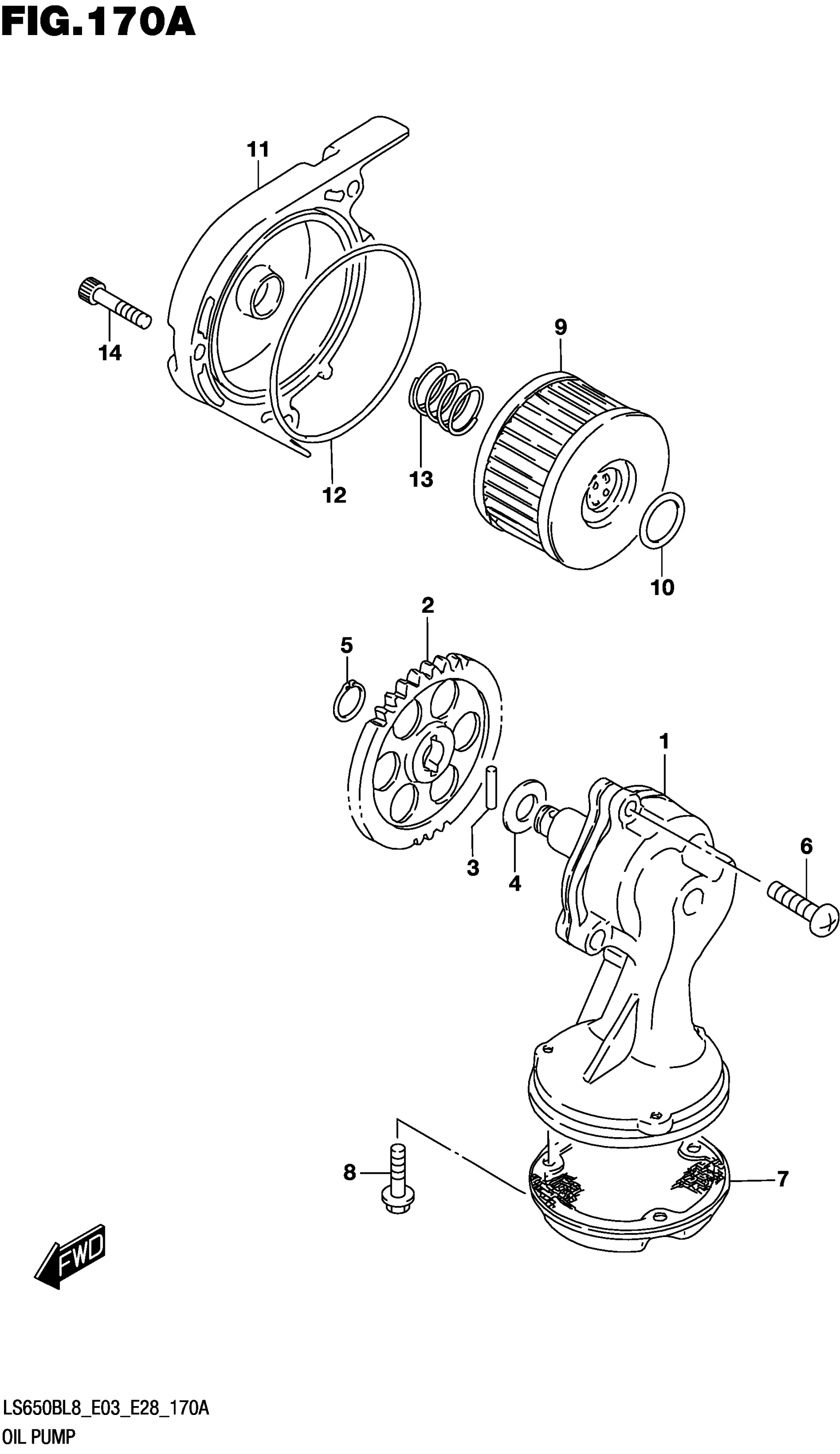

Suzuki LS650BL8 (2018) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY

16400-24B00

$216.72

2

GEAR

16331-24B00

Unavailable

3

PIN (4X15.8)

09261-04009

$1.56

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

CIRCLIP

08331-31109

$1.78

6

SCREW

02112-0625A

$1.80

7

STRAINER

16520-24B00

Unavailable

8

BOLT

01580-0512A

Unavailable

9

FILTER ASSY,ENG OIL

16510-37450

$6.06

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

CAP

16512-24B10

$45.50

12

.O RING (D:2.4,ID:73)

09280-72001

$4.94

13

SPRING

09440-21006

$2.03

14

BOLT (6X25)

09106-06090

$3.16
