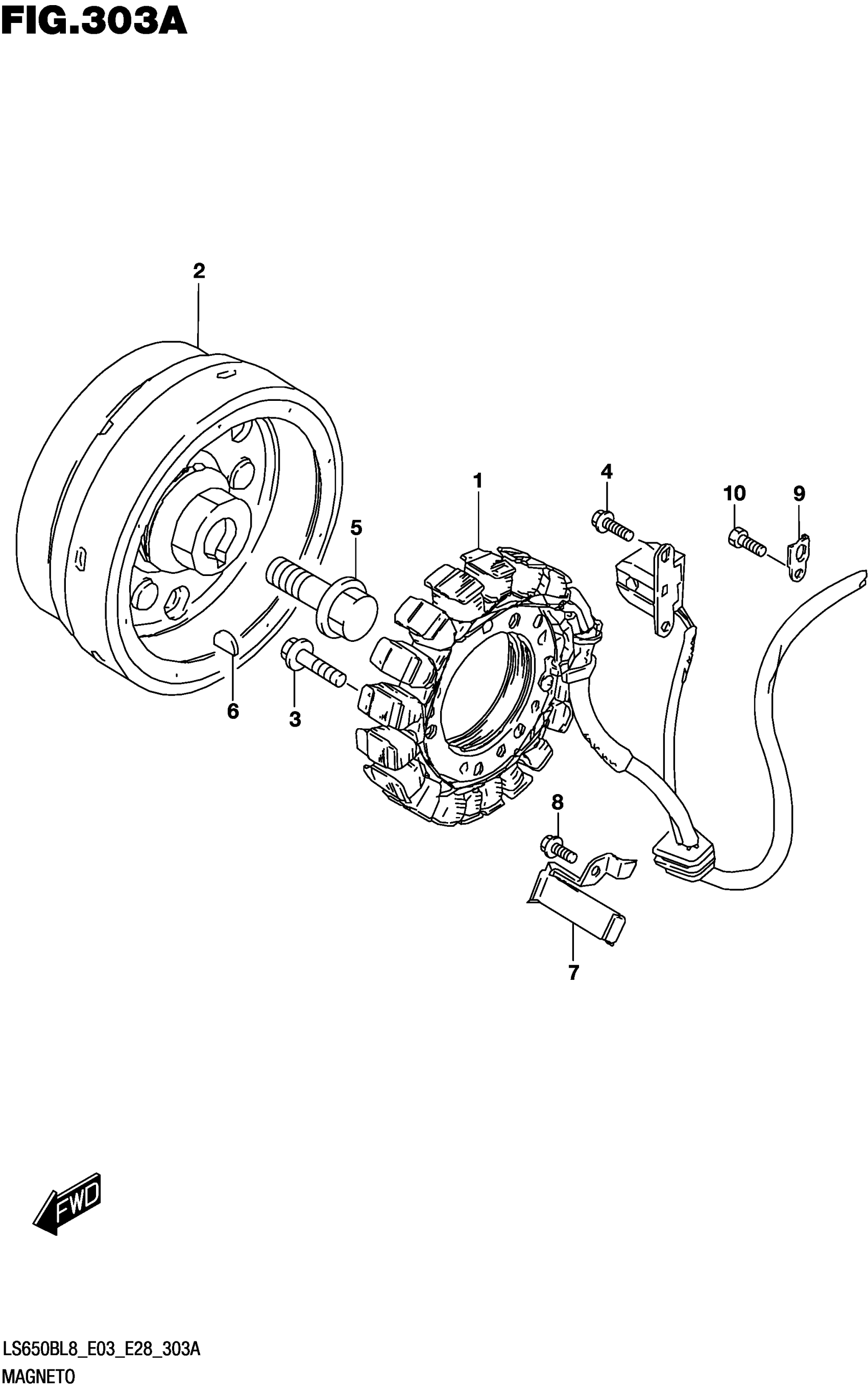

Suzuki LS650BL8 (2018) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-24B02

$711.80

2

ROTOR

32102-24B10

Unavailable

3

BOLT

01547-0625A

$2.01

4

BOLT (L:80)

01547-0510A

$2.53

5

BOLT (14X43)

09103-14001

$11.82

6

KEY

09420-05007

$4.60

7

CLAMP

32371-24B00

Unavailable

8

BOLT (L:80)

01547-0510A

$2.53

9

CLAMP,MAGNETO LEAD

31497-45000

$1.92

10

BOLT (5X10)

09100-05019

$1.93
