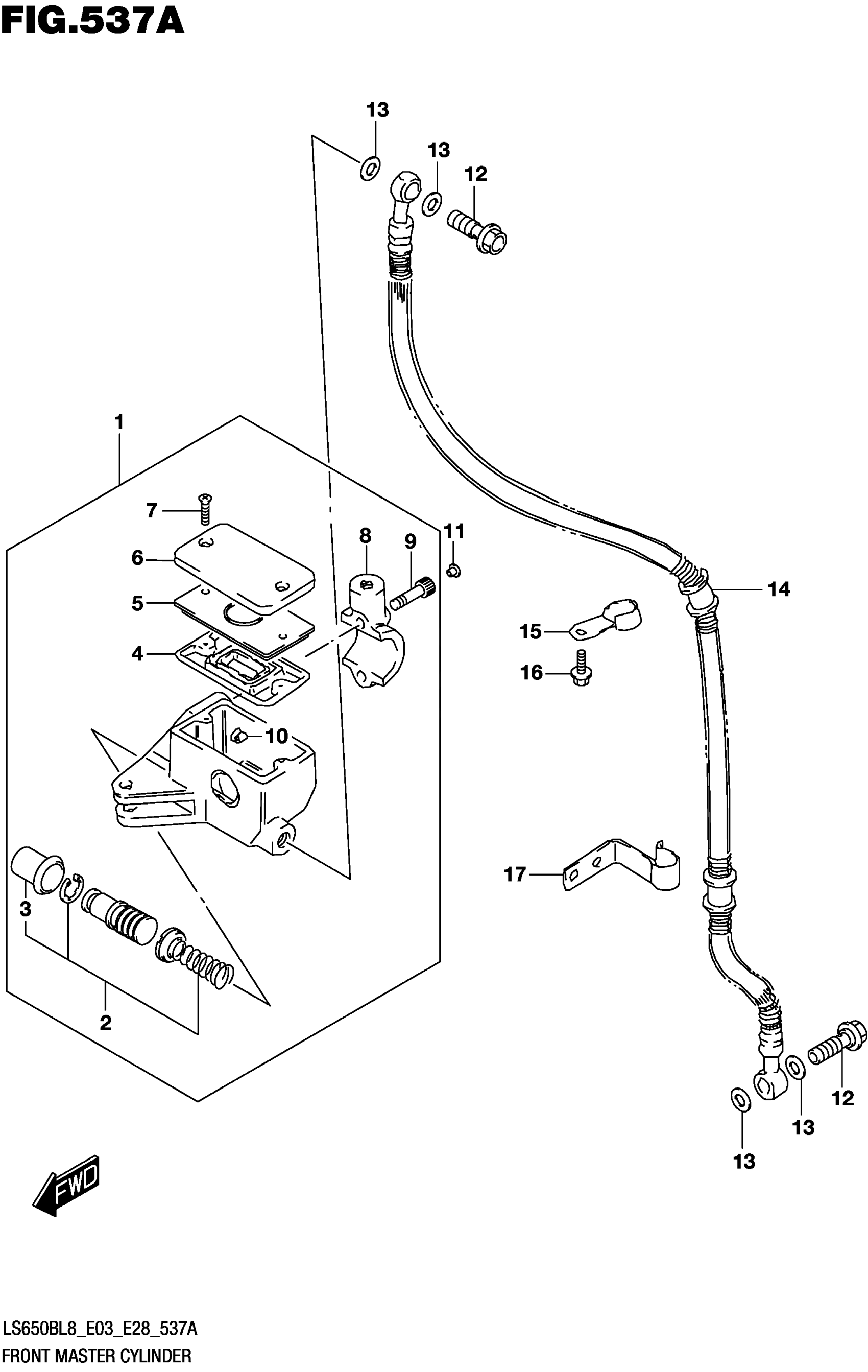

Suzuki LS650BL8 (2018) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY

59600-38AC0

Unavailable

2

.PISTON/CUP SET

59600-04810

$45.20

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-49460

$9.78

5

.PLATE,DIAPHRAGM

59668-41C00

$9.32

6

.CAP

59669-10G20

$57.33

7

.SCREW

69689-49300

$1.91

8

.HOLDER

59671-05A00

$23.00

9

BOLT

07130-0620B

$3.05

10

.PROTECTOR

59664-48B00

$11.02

11

CAP (OD:10)

09250-05009

$2.19

12

UNION This part replaces 09360-10041.

09360-10061

$6.43

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

HOSE

59480-24B70

$129.33

15

GUIDE

59541-24B10

$6.03

16

BOLT

01547-0610A

$2.45

17

GUIDE

59268-24B10

Unavailable
