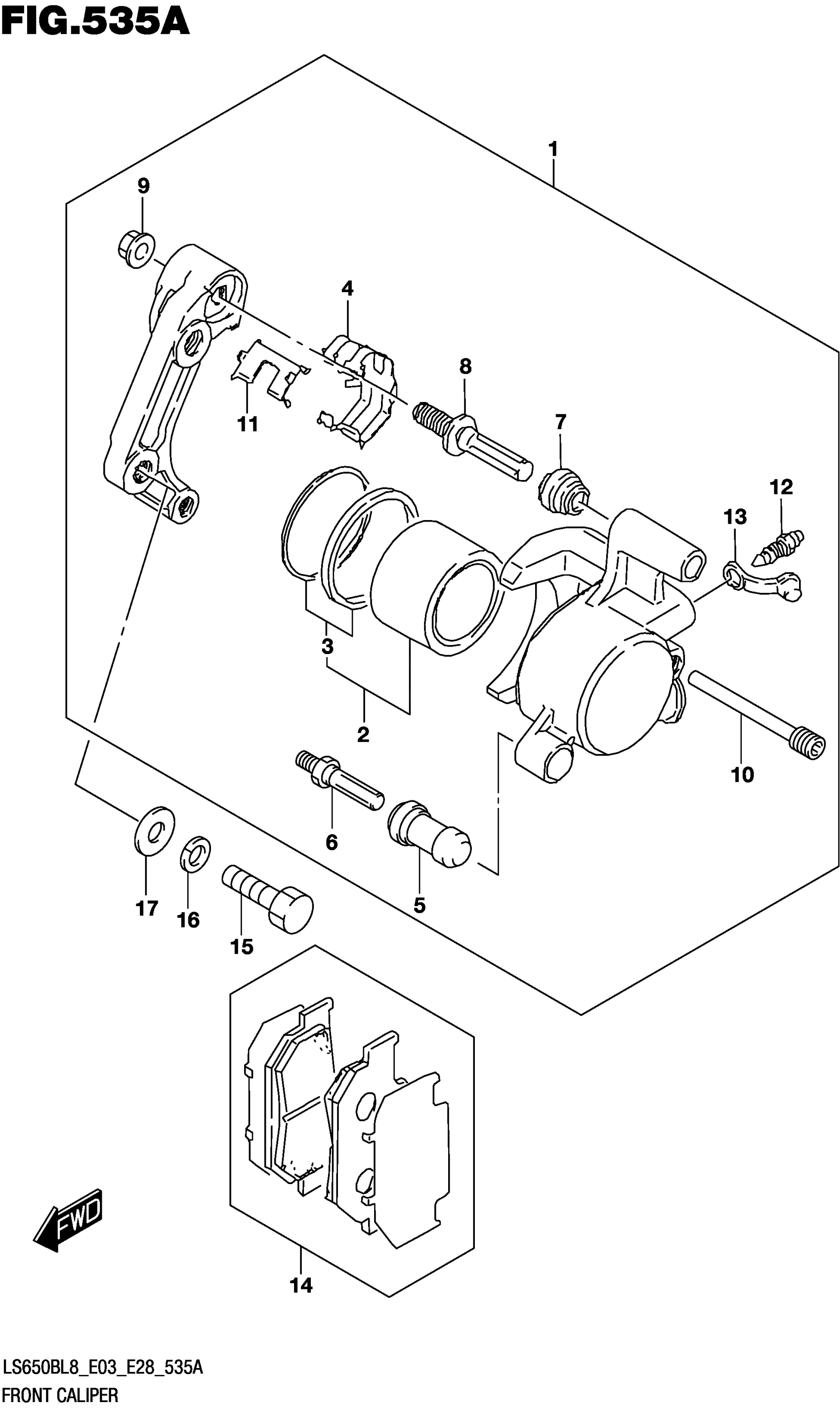

Suzuki LS650BL8 (2018) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY

59300-24B60-999

$351.60

2

.PISTON SET

59300-24820

$48.77

3

..SEAL SET

59300-24810

$11.24

4

.SPRING

59315-14600

$11.83

5

.BOOT

59386-13A00

$7.95

6

.BOLT

59382-27C30

$9.07

7

.BOOT

59303-14500

$5.52

8

.BOLT

59305-14500

$23.07

9

.NUT

59306-14500

Unavailable

10

.PIN

59345-14600

$16.25

11

.RETAINER

59316-24B10

$8.42

12

.BLEEDER

59121-01A00

$8.73

13

.CAP,BLEEDER

59122-46H00

$4.43

14

PAD SET This part replaces 59300-24830.

59100-26870

$36.41

15

BOLT (10X38)

09104-10029

$3.55

16

LOCK WASHER

09162-10008

$3.04

17

WASHER

08322-01107

$2.15
