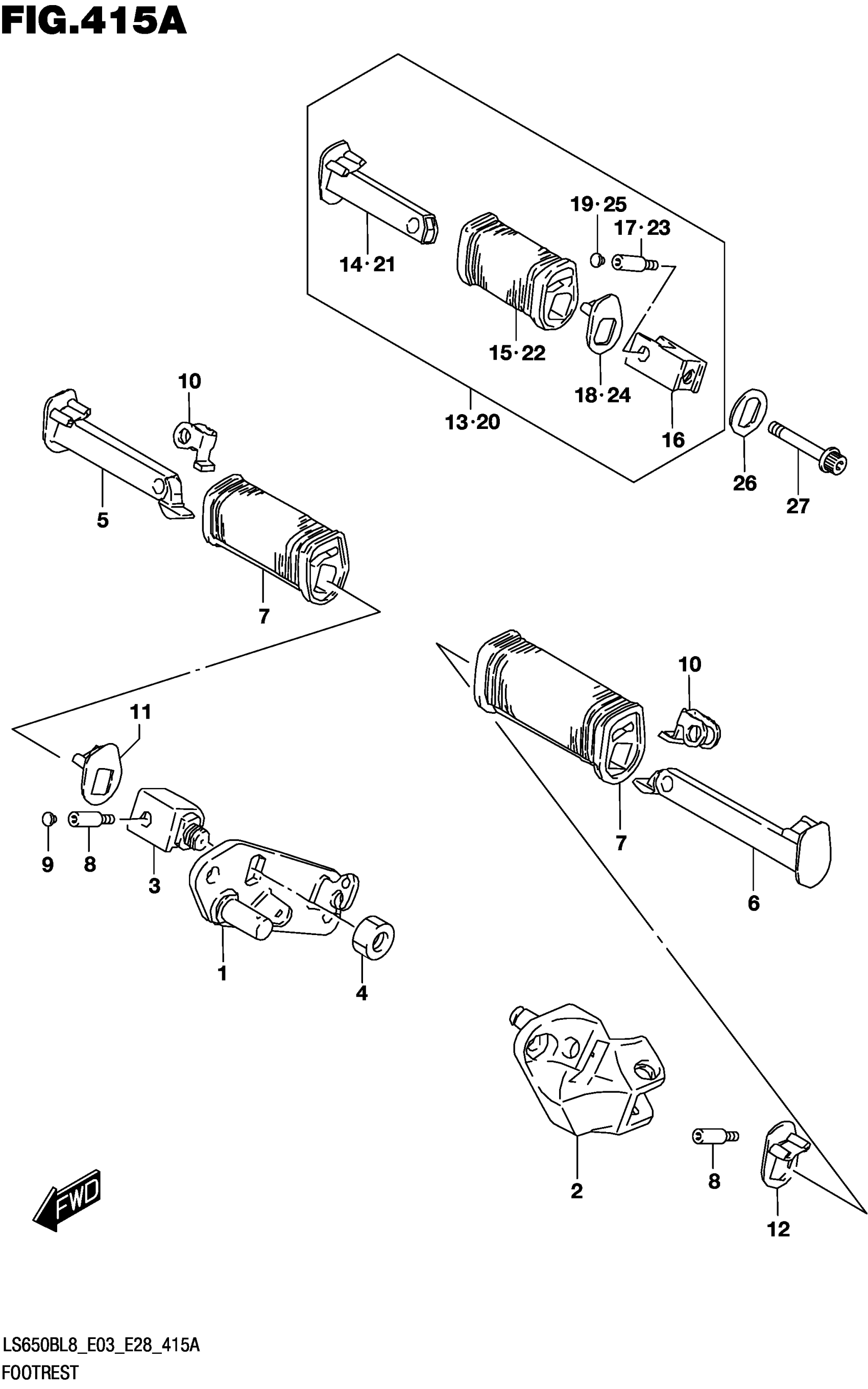

Suzuki LS650BL8 (2018) FOOTREST Diagram

#

Description
Price

1

BRACKET

43510-24B10

$67.37

2

BRACKET

43520-24B30

$305.47

3

HOLDER

43517-24B10

$96.43

4

NUT | RH

09140-16029

$3.85

5

BAR

43530-24B20

$84.28

6

BAR

43540-24B20

$84.28

7

RUBBER

43551-38A00

$16.13

8

BOLT (6X8)

09106-06100

$5.36

9

CAP

43576-24B00

$3.05

9

CAP

43576-24B00

$3.05

10

CUSHION

43570-24B01

$8.07

11

WASHER

43470-24B00

$6.52

12

WASHER

43480-24B00

$6.52

13

FOOTREST ASSY

43600-24B10

$129.80

14

.BAR

43610-24B10

$46.98

15

.RUBBER

43651-24B00

$21.77

16

.HOLDER

43621-24B20

Unavailable

17

BOLT (6X8)

09106-06100

$5.36

18

.WASHER

43570-38A00

Unavailable

19

CAP

43576-24B00

$3.05

20

FOOTREST ASSY

43700-24B10

$123.45

21

.BAR

43710-24B10

$57.60

22

.RUBBER

43651-24B00

$21.77

23

BOLT (6X8)

09106-06100

$5.36

24

.WASHER

43580-38A00

Unavailable

25

CAP

43576-24B00

$3.05

26

WASHER

43622-24B10

$3.03

26

WASHER

43622-24B10

$3.03

27

BOLT (10X45)

09106-10086

$6.30
