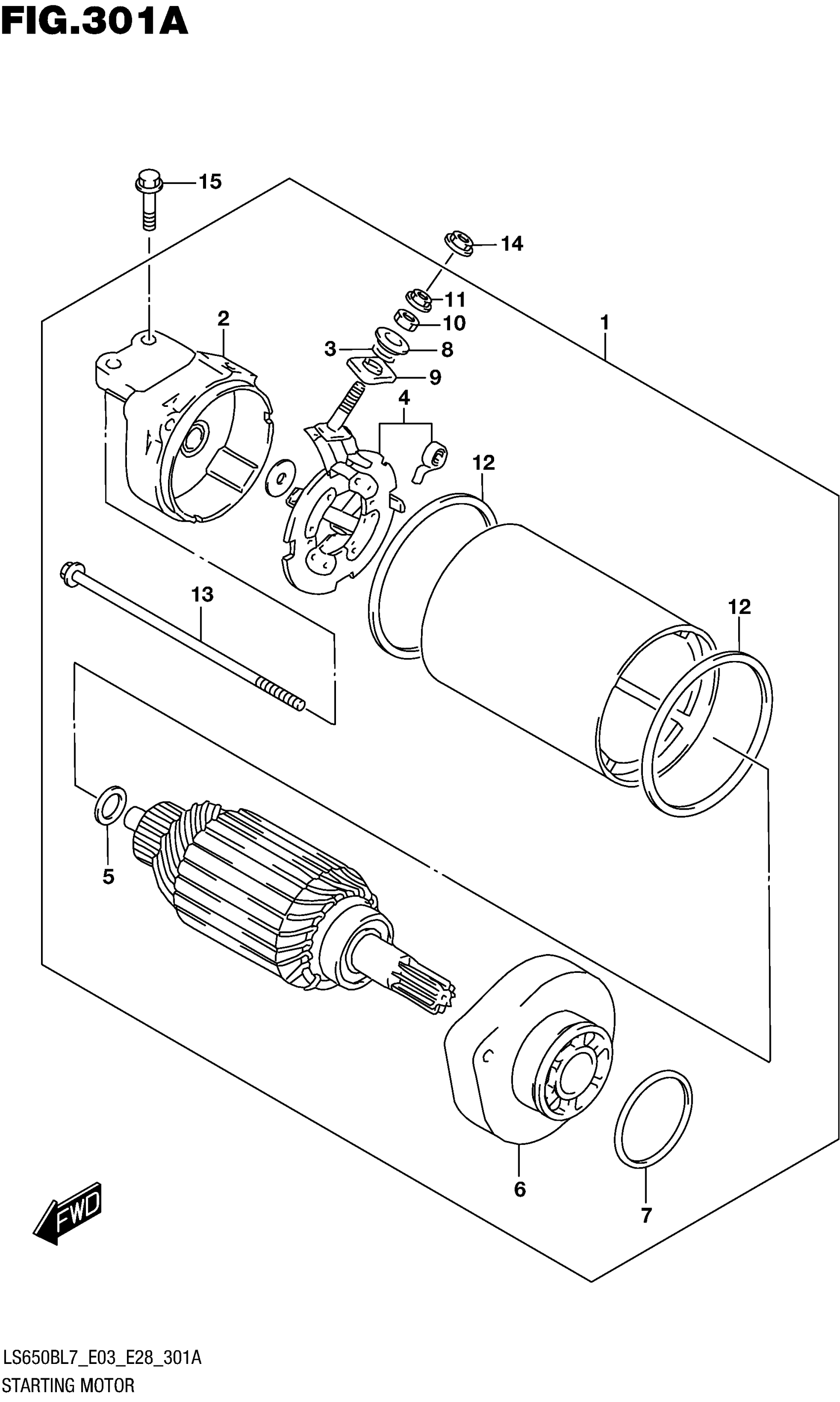

Suzuki LS650BL7 (2017) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-07F10

Unavailable

2

.FRAME ASSY

31170-07F00

Unavailable

3

.O RING

31143-38300

$5.10

4

.HOLDER SET, BRUSH

31132-45C00

$71.38

5

.SHIM SET

31170-43400

Unavailable

6

.HOUSING ASSY

31150-07F10

Unavailable

7

.O RING

31156-48B00

$12.02

8

.BUSHING

31172-38300

$6.55

9

.BUSHING

31173-88C00

Unavailable

10

.NUT

08310-00067

$2.13

11

NUT

08361-3506A

$1.80

12

.O RING

31264-44110

$11.87

13

.BOLT

31281-31D00

$8.65

14

NUT

08361-3506A

$1.80

15

BOLT (6X20)

09103-06223

$2.47
