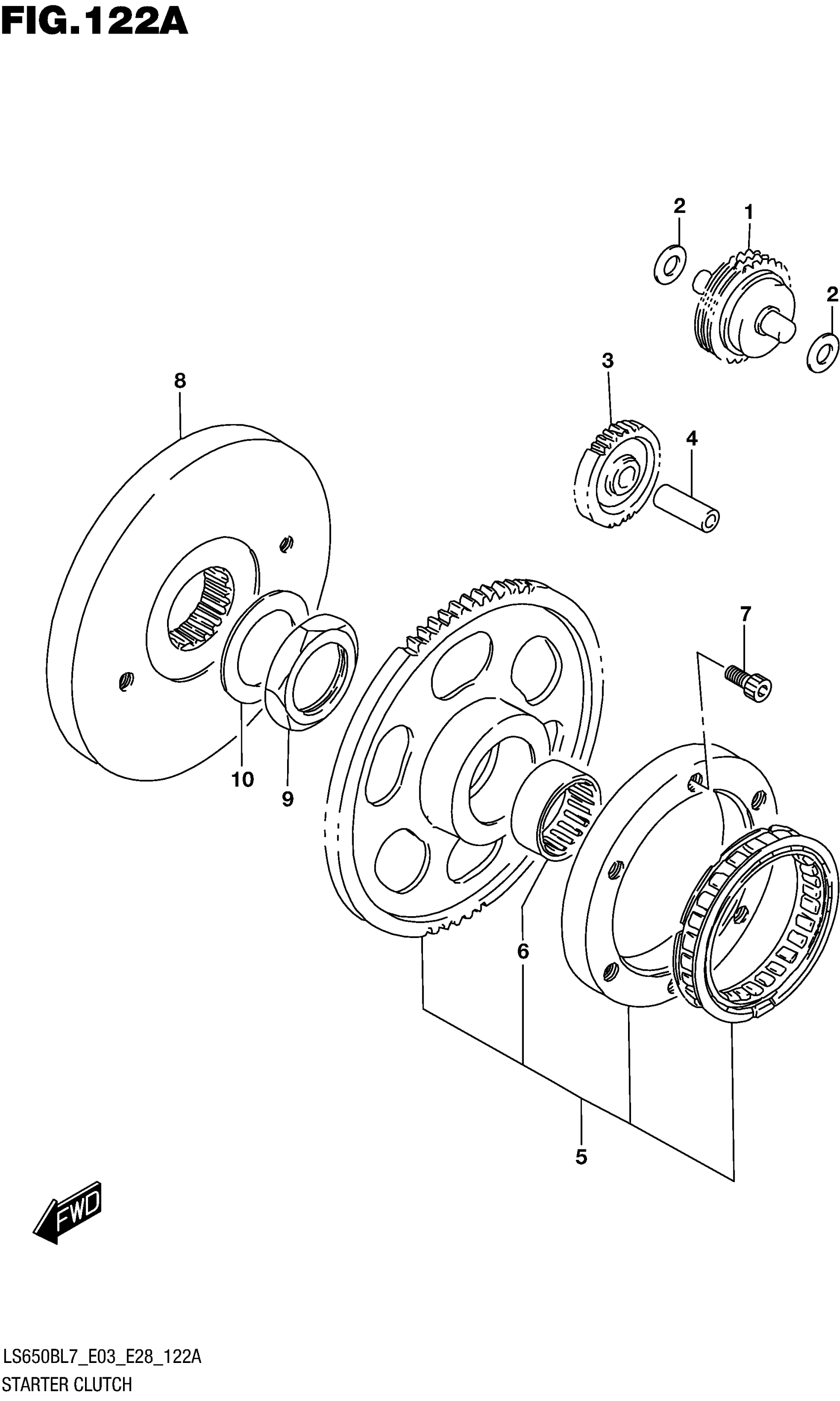

Suzuki LS650BL7 (2017) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, STARTER IDLE

12600-24B11

$268.15

1

GEAR (NT:37)

12600-24B11

$268.15

2

SHIM (10X18X1)

09181-10167

$1.97

3

GEAR, STARTER IDLE NO.2

12612-24B03

$64.30

3

(NT:34)

12612-24B03

$64.30

4

PIN (10X30)

09202-10011

$9.40

5

CLUTCH SET, STARTER (NT:80)

12600-24831

$364.47

6

.BEARING (31X39X17.8)

09263-31009

$47.00

7

.BOLT (8X16)

09106-08190

$2.65

8

FLYWHEEL

12656-24B02

Unavailable

9

NUT, FLYWHEEL

12664-24B01

$15.42

10

WASHER

09164-35002

Unavailable
