2017 Suzuki LS650BL7 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2017 Suzuki LS650BL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

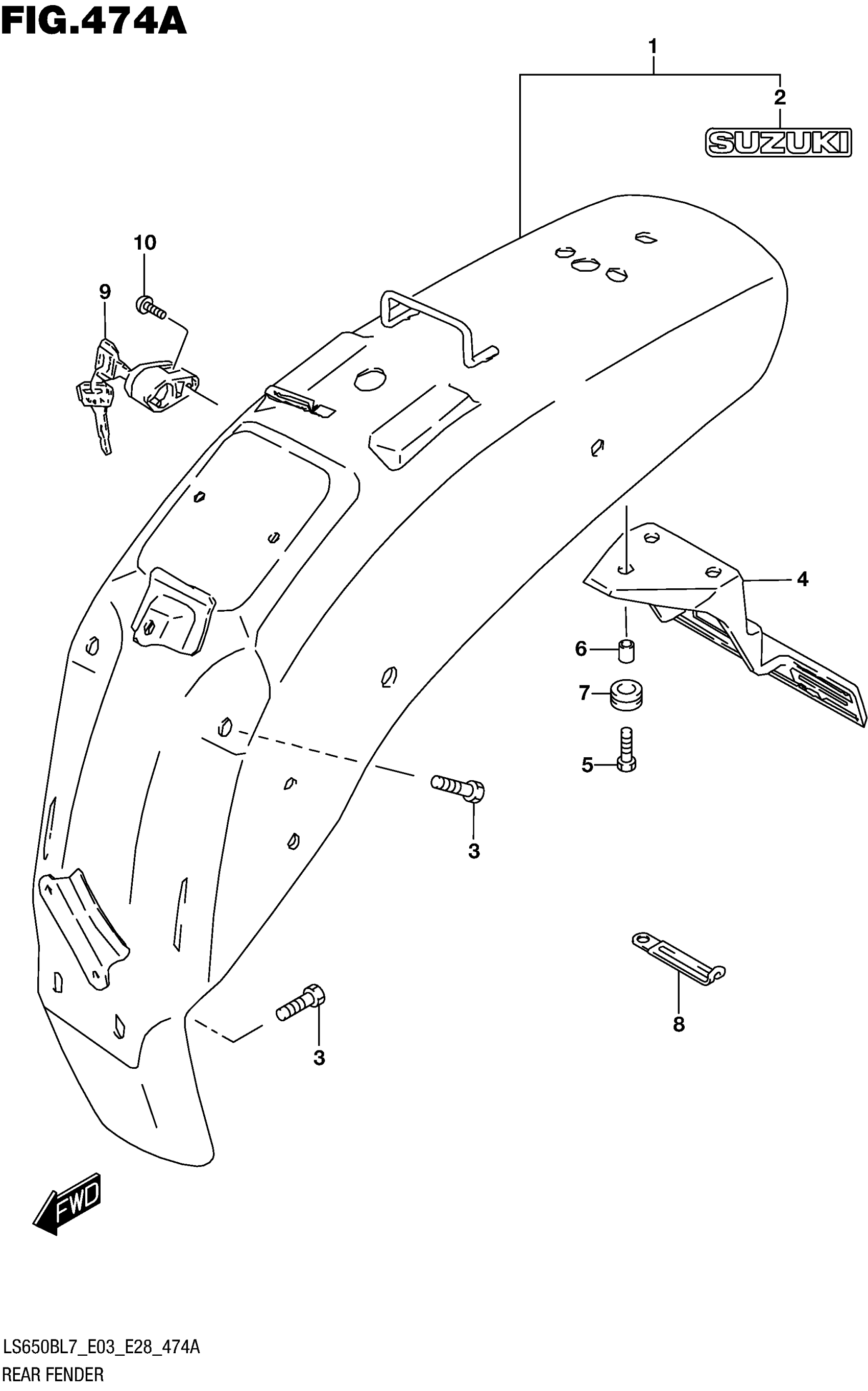

2017 Suzuki LS650BL7 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER ASSY, REAR (BLACK)

63100-24C00-YVB

1
Out of stock

2

EMBLEM,"SUZUKI" This part replaces 68271-34A00-YJH.

68271-34A01-YJH

1
Out of stock

3

BOLT (8X25)

09103-08419

4
Out of stock

4

BRACKET This part replaces 35916-24B20.

35916-24B21

1
Out of stock

5

BOLT (6X20)

09116-06010

3
Out of stock

6

SPACER (6.5X9X9)

09180-06263

3
Out of stock

7

CUSHION

09320-09016

3
Out of stock

8

CLAMP (L:45)

09404-06429

1
Out of stock

9

LOCK SET, HELMET

95700-38821

1
Out of stock

10

SCREW

02112-0510A

1
Out of stock
