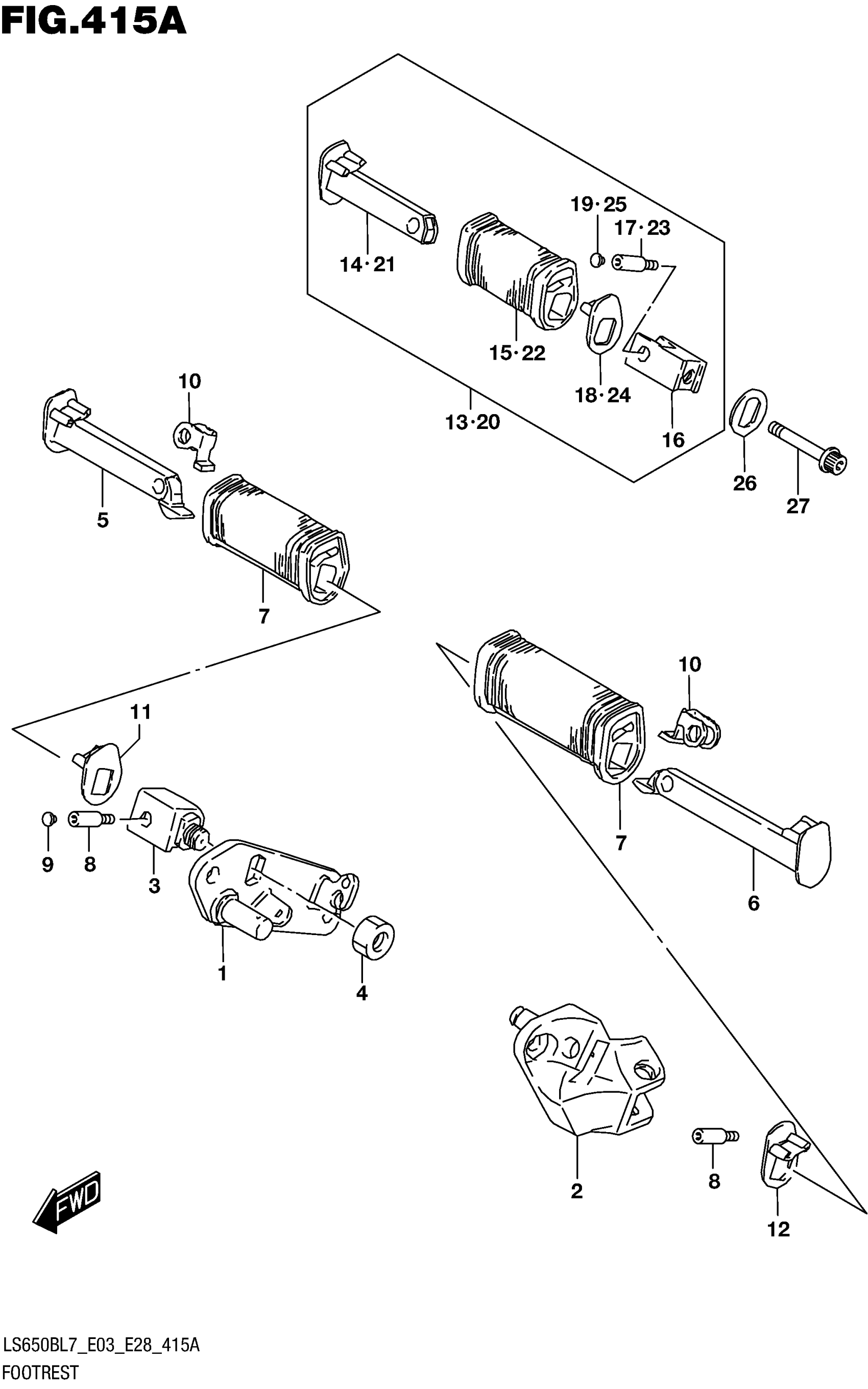

Suzuki LS650BL7 (2017) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-24B10

$75.68

2

BRACKET, FRONT FOOTREST LH

43520-24B30

$339.93

3

HOLDER, FRONT FOOTREST RH

43517-24B10

$108.32

4

NUT | RH

09140-16029

$4.18

5

BAR, FRONT FOOTREST RH

43530-24B20

$94.67

6

BAR, FRONT FOOTREST LH

43540-24B20

$94.67

7

RUBBER, FRONT FOOTREST

43551-38A00

$14.77

8

BOLT (6X8)

09106-06100

$5.04

9

CAP, FRONT FOOTREST RUBBER

43576-24B00

$2.88

9

BOLT

43576-24B00

$2.88

10

CUSHION, FRONT FOOTREST

43570-24B01

$7.60

11

WASHER, FRONT FOOTREST RH

43470-24B00

$8.65

12

WASHER, FRONT FOOTREST LH

43480-24B00

$6.14

13

FOOTREST ASSY, PILLION RH

43600-24B10

$144.45

14

.BAR, PILLION FOOTREST RH

43610-24B10

$53.03

15

.RUBBER, PILLION FOOTREST

43651-24B00

$24.57

16

.HOLDER, PILLION FOOTREST

43621-24B20

Unavailable

17

.BOLT (6X8)

09106-06100

$5.04

18

.WASHER, PILLION FOOTREST RH

43570-38A00

Unavailable

19

.CAP, PILLION FOOTREST BOLT

43576-24B00

$2.88

20

FOOTREST ASSY, PILLION LH

43700-24B10

$137.38

21

.BAR, PILLION FOOTREST LH

43710-24B10

$65.02

22

.RUBBER, PILLION FOOTREST

43651-24B00

$24.57

23

.BOLT (6X8)

09106-06100

$5.04

24

.WASHER, PILLION FOOTREST LH

43580-38A00

Unavailable

25

.CAP, PILLION FOOTREST BOLT

43576-24B00

$2.88

26

WASHER, PILLION FOOTREST

43622-24B10

$3.42

26

HOLDER

43622-24B10

$3.42

27

BOLT (10X45)

09106-10086

$7.05
