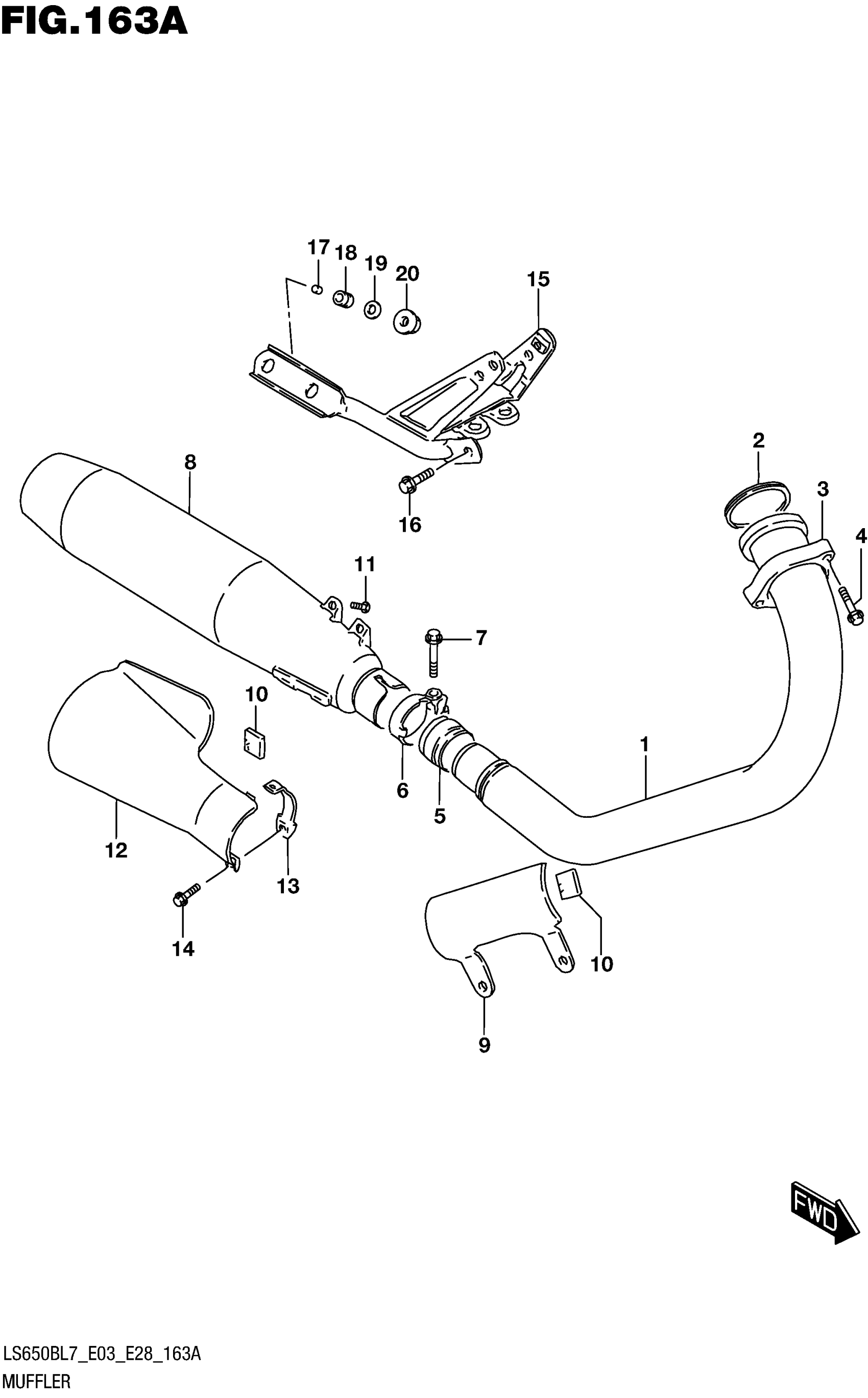

Suzuki LS650BL7 (2017) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-24B01

$331.30

2

GASKET, EXHAUST PIPE

14181-45C00

$7.38

3

CLAMP, EXHAUST PIPE

14182-38A02

$42.45

4

BOLT (8X35)

09104-08026

$3.76

5

CONNECTOR, MUFFLER

14771-46E00

$18.68

6

CLAMP, CONNECTOR MUFFLER

14459-14A10

$17.94

7

BOLT

01550-0840A

$3.05

8

BODY, MUFFLER

14310-24B45-H01

$463.17

9

COVER, EXHAUST PIPE

14780-24B01

$62.07

10

GASKET

14789-24B12

$6.91

11

SCREW

02112-0610B

$1.84

12

COVER, MUFFLER

14790-24B00

$121.55

13

CLAMP, MUFFLER COVER

14785-24B00

$8.83

14

BOLT

01550-0620A

$1.97

15

STAY, MUFFLER (BLACK)

14410-24B10-019

$84.37

16

BOLT (8X20)

09103-08505

$3.58

17

SPACER (8.5X12X11)

09180-08189

$2.58

18

CUSHION

09320-12041

$5.52

19

WASHER (8.5X26X1.6)

09160-08134

$2.03

20

NUT

08319-3108A

$2.32
