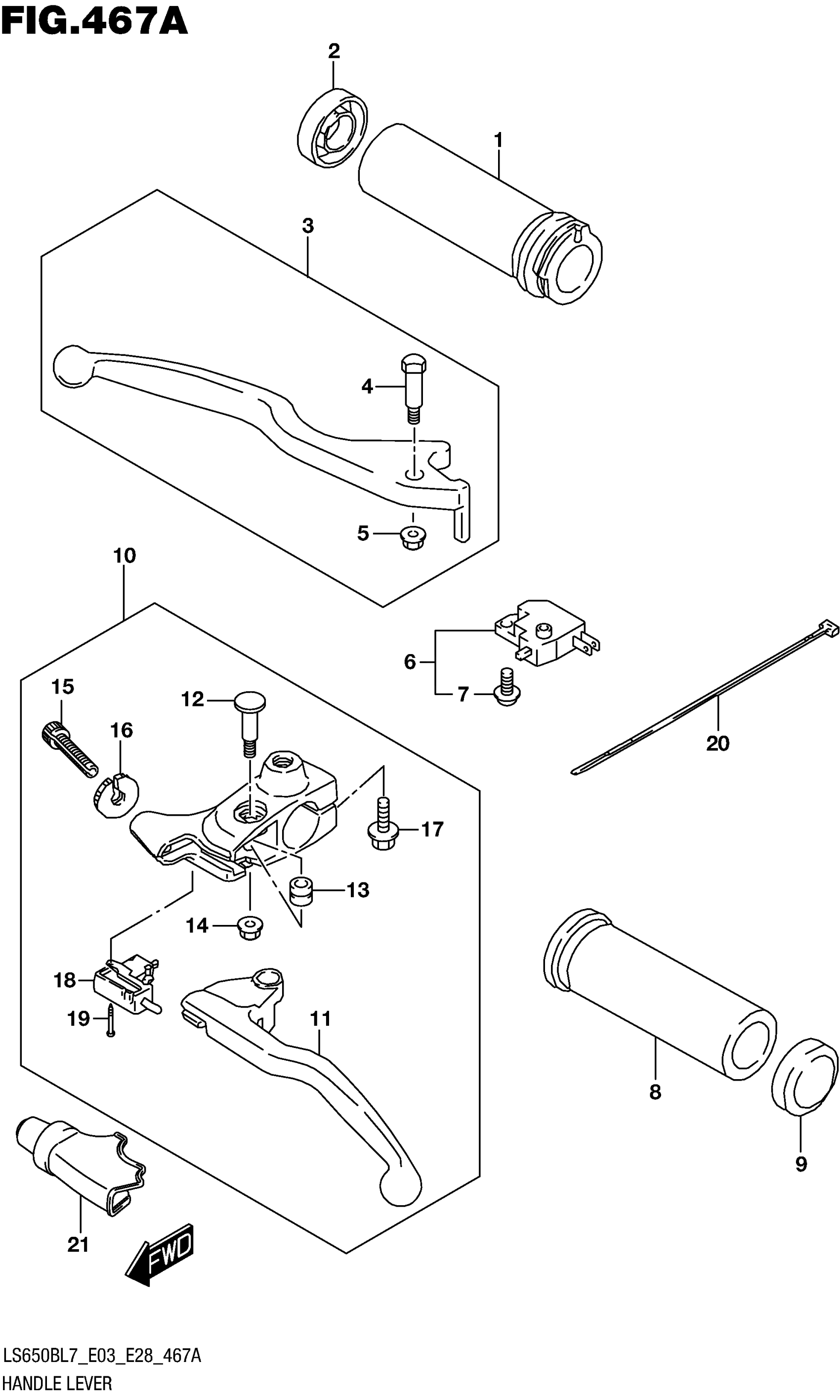

Suzuki LS650BL7 (2017) HANDLE LEVER Diagram

#

Description
Price

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

$56.06

2

CAP, GRIP END

57216-38A00

$7.22

3

LEVER ASSY, BRAKE

57300-24BA0

$29.45

4

.BOLT, LEVER SET

57431-38A10

$9.23

5

.NUT

08319-2106A

$1.91

6

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

7

.SCREW

57465-17C00

$2.19

8

GRIP,L This part replaces 57210-26D00.

57210-26D01

$30.23

9

CAP, GRIP END

57216-38A00

$7.22

10

LEVER ASSY,CLUT This part replaces 57500-24BA0.

57500-24BA1

$50.40

11

.LEVER, CLUTCH

57620-24BA0

$28.85

12

.BOLT, CLUTCH LEVER

57531-24B00

$8.83

13

.SPACER, CLUTCH LEVER

57623-24B00

$4.52

14

.NUT

08319-2106A

$1.91

15

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

16

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

17

.BOLT

07130-06207

$3.04

18

.SWITCH,CLUTCH

57560-05A00

$12.15

19

.SCREW

02112-0320B

$3.60

20

CLAMP (L:250)

09407-25402

$4.64

21

COVER,CLUTCH LE This part replaces 57661-48E00.

57661-48E01

$11.10
