2017 Suzuki LS650BL7 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2017 Suzuki LS650BL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

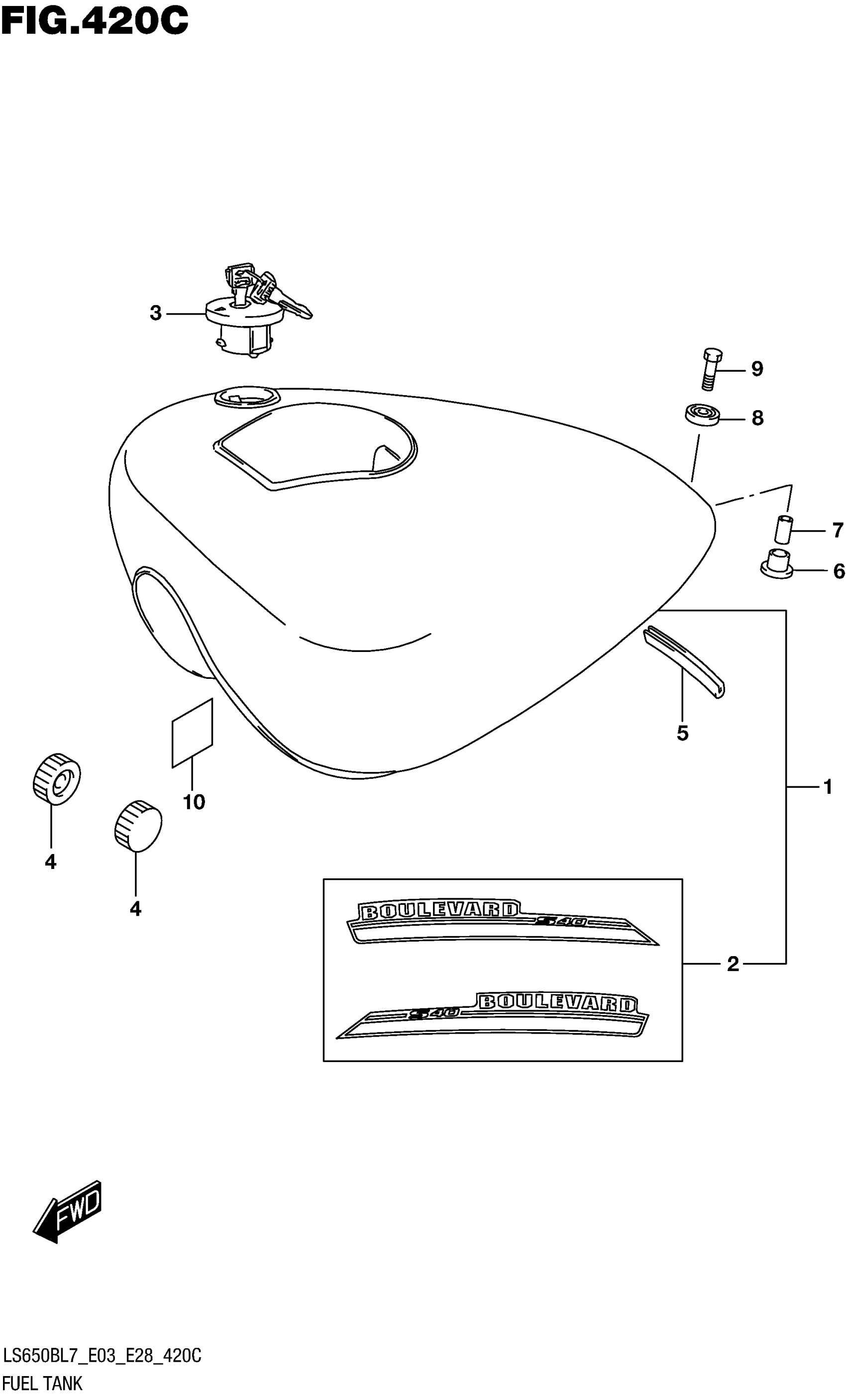

2017 Suzuki LS650BL7 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

TANK ASSY, FUEL (ORANGE) | FOR YUK

44100-24CA0-YUK

—
Out of stock

1-2

TANK ASSY, FUEL (BLACK) | FOR YVB

44100-24CA0-YVB

1
Out of stock

2-1

.TAPE SET, FUEL TANK | FOR YUK

68110-24C20-BE1

—
Out of stock

2-2

.TAPE SET, FUEL TANK | FOR YVB

68110-24C20-ELB

—
Out of stock

3

CAP SET, FUEL TANK

44200-24870

1
Out of stock

4

CUSHION

09329-10016

2

$3.00

In stock

5

MOLDING, FUEL TANK REAR

44552-24B10

2
Out of stock

6

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock

7

SPACER (6.5X9X18)

09180-06271

2
Out of stock

8

CUSHION

09320-14013

2
Out of stock

9

BOLT

01500-0630A

2
Out of stock

10

PROTECTOR, FUEL TANK

44283-40H00

1
Out of stock
