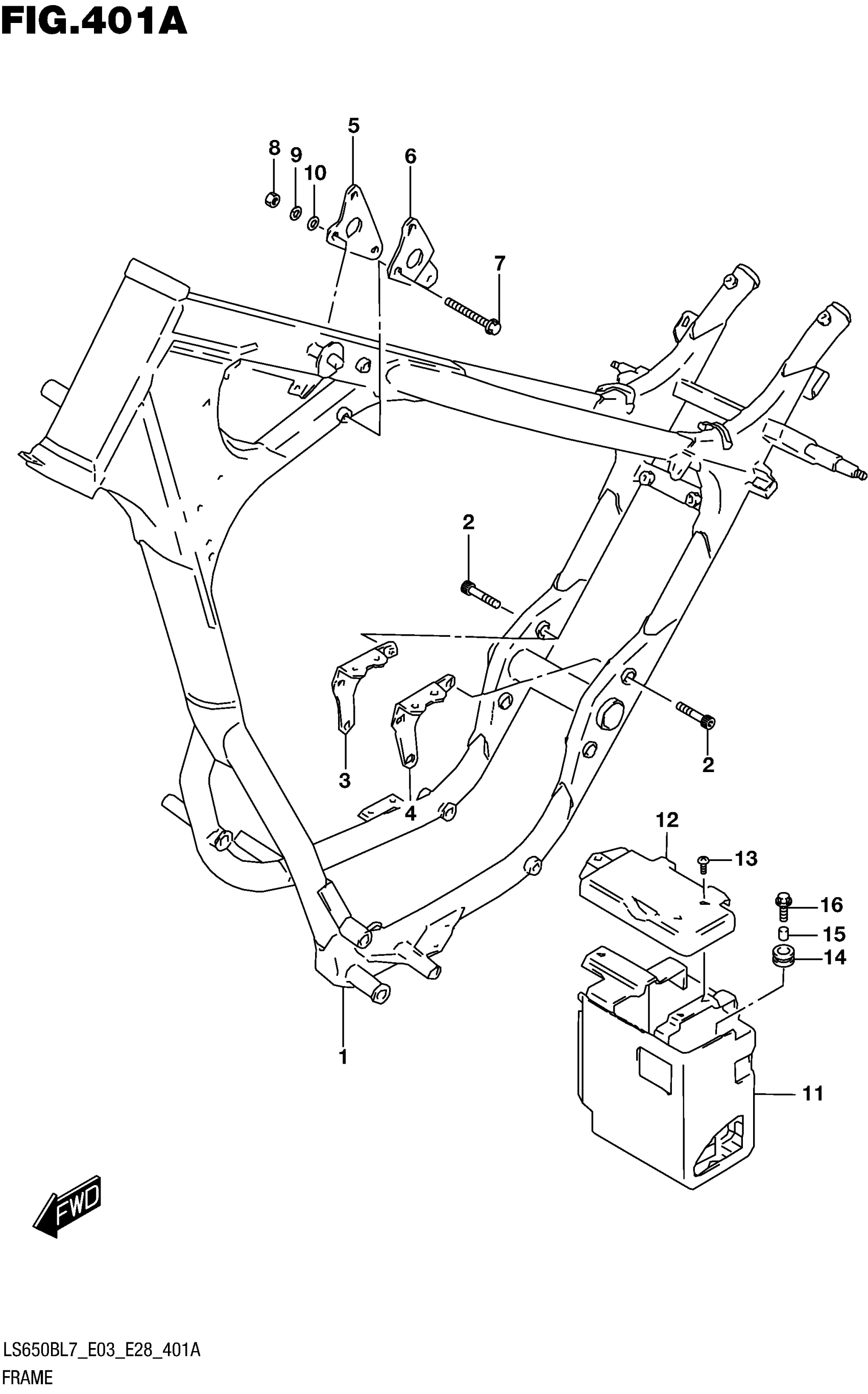

Suzuki LS650BL7 (2017) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-24B11-019

Unavailable

2

BOLT (8X40)

09106-08074

$3.85

3

PLATE, ENGINE MOUNTING NO.4

41970-24B00-019

Unavailable

3

RH (BLACK)

41970-24B00-019

Unavailable

4

PLATE, ENGINE MOUNTING NO.4

41980-24B00-019

Unavailable

4

LH (BLACK)

41980-24B00-019

Unavailable

5

PLATE, ENGINE MOUNTING NO.5

41991-24B00-019

Unavailable

5

RH (BLACK)

41991-24B00-019

Unavailable

6

PLATE, ENGINE MOUNTING NO.5

41992-24B00-019

Unavailable

6

LH (BLACK)

41992-24B00-019

Unavailable

7

BOLT (8X72)

09103-08279

Unavailable

8

NUT

08319-2108A

$2.12

9

LOCK WASHER

08321-0108B

Unavailable

10

WASHER

08322-0108B

$2.34

11

HOLDER, BATTERY

41540-24B10

Unavailable

12

COVER, BATTERY

41576-24B10

$35.12

13

SCREW

02142-04107

$1.49

14

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

15

SPACER (6.5X9X7.2)

09180-06260

$3.37

16

BOLT (6X20)

09116-06010

$2.19
