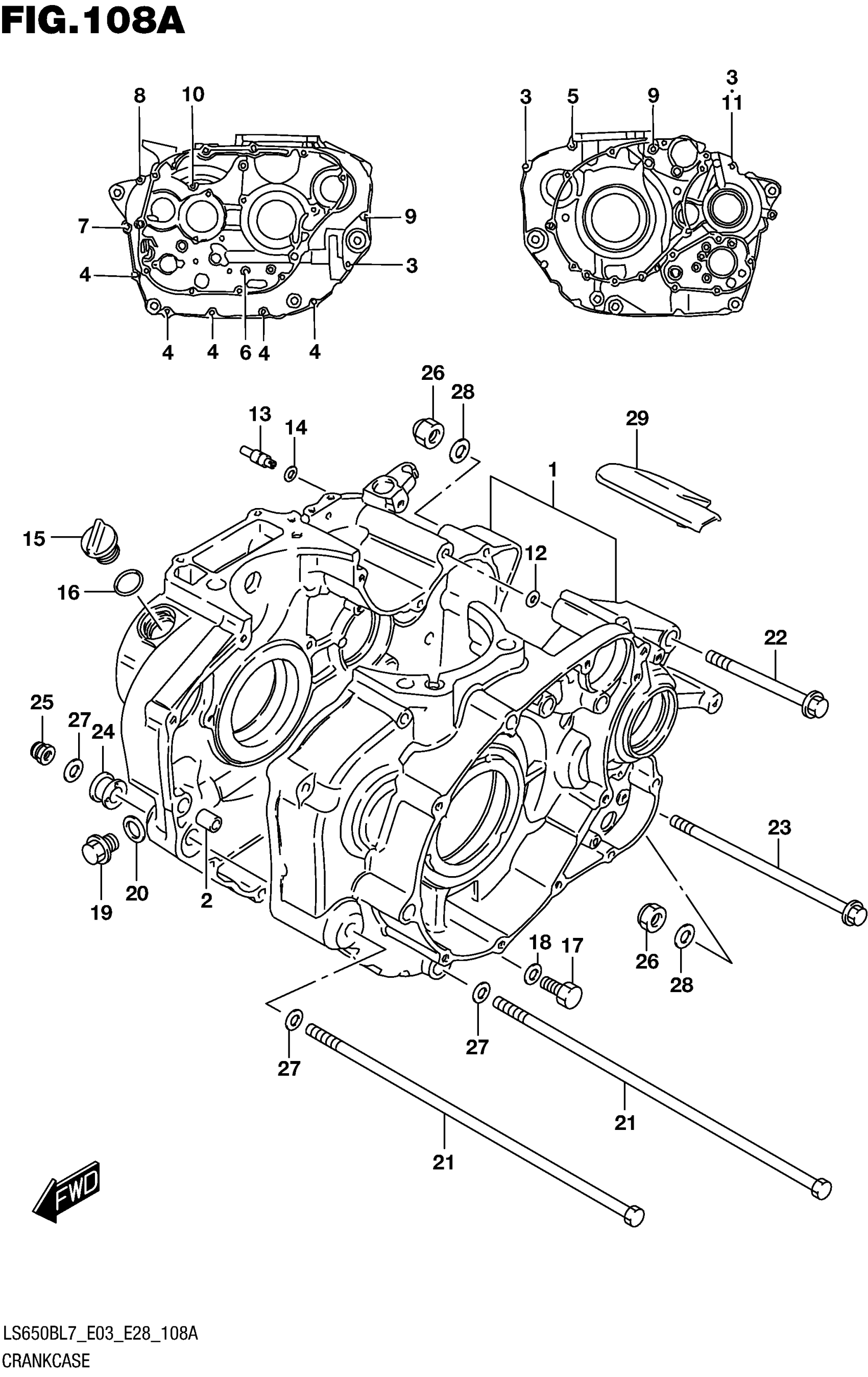

Suzuki LS650BL7 (2017) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-24852

Unavailable

2

.PIN (8.4X11X20)

09206-11007

$2.37

3

.BOLT

01547-0640A

$2.32

4

BOLT

01547-0645A

$2.42

5

.BOLT

01547-0660A

$2.82

6

.BOLT

01547-0655A

$2.42

7

.BOLT

01547-06657

$2.75

8

.BOLT

01547-06657

$2.75

9

.BOLT

01547-0670A

$2.92

10

BOLT

01547-0675A

$3.28

11

.GASKET (5.8X13X1.2)

09168-06023

$2.35

12

.O RING (D:2.4,ID:9.6)

09280-10013

$3.70

13

.JET, OIL GALY

09493-36004

$16.87

14

.O RING (D:1.2,ID:4)

09280-04004

$1.91

15

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

16

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

17

PLUG (12X20) | OIL DRAIN

09247-12011

$4.64

18

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

19

PLUG (14X12)

09247-14026

$3.76

20

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

21

BOLT (10X323)

09104-10034

$28.48

22

BOLT (10X105)

09103-10087

$7.03

23

BOLT (10X180)

09103-10053

$11.48

24

SPACER, ENGINE MOUNTING

11610-38400

$13.05

25

NUT

09159-10064

$10.08

26

NUT

09159-10047

$9.41

27

WASHER

08322-01107

$2.15

28

WASHER

08322-0110A

$1.84

29

COVER, CRANKCASE START MOTOR

11384-24B10

Unavailable
