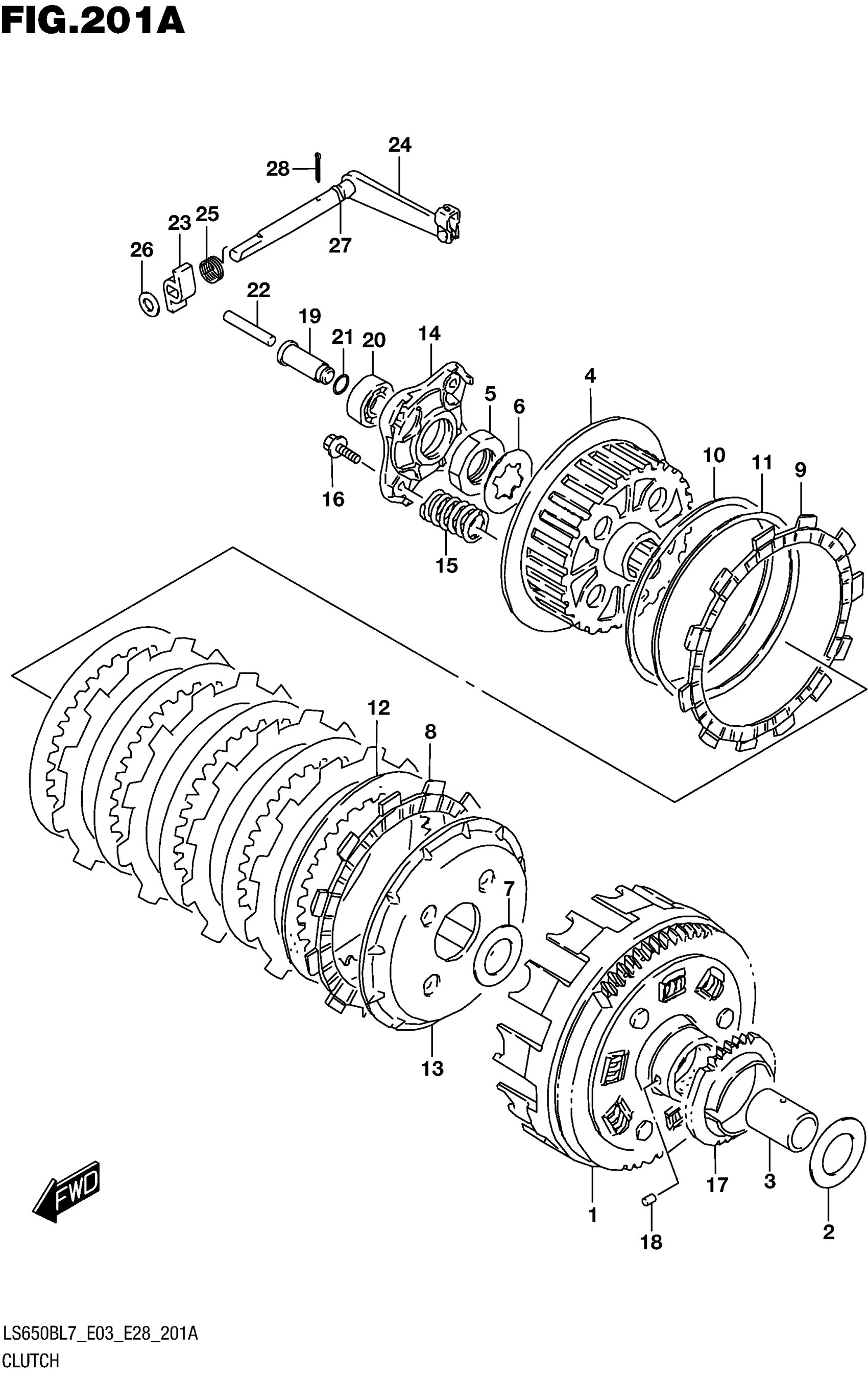

Suzuki LS650BL7 (2017) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-24B12

$371.53

1

(NT:67)

21200-24B12

$371.53

2

WASHER

08211-22443

$4.25

3

SPACER (22X28X32.5)

09180-22023

$25.12

4

HUB, CLUTCH SLEEVE

21411-37401

$121.77

5

NUT

09140-22009

$7.95

6

LOCK WASHER

09167-22005

$2.11

7

WASHER

08211-22403

$4.26

8

PLATE, DRIVE (T:3.0)

21441-37400

$18.13

9

PLATE, DRIVE (T:3.5)

21442-37401

$18.67

10

SEAT, WAVE WASHER (T:1.4)

21471-37400

$9.78

11

WASHER

09164-00004

$11.35

12

PLATE, CLUTCH DRIVEN (T:1.6)

21451-14A00

$9.52

13

DISK, CLUTCH PRESSURE

21462-37400

$57.67

14

PLATE, RELEASE

21465-37400

$20.45

15

SPRING

09440-20016

$5.24

16

BOLT

01550-0620A

$1.97

17

GEAR, OIL PUMP DRIVE (NT:30)

16321-24B00

Unavailable

18

PIN (6X6)

09261-06002

$1.53

19

PIECE, CLUTCH PUSH

23121-24B02

$20.45

20

BEARING (12X28X8)

09262-12001

$18.47

21

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

22-1

ROD, CLUTCH PUSH (L:44.5)

23111-24B00-445

$6.52

22-2

ROD, CLUTCH PUSH (L:45.5)

23111-24B00-455

$7.80

22-3

ROD, CLUTCH PUSH (L:46.5)

23111-24B00-465

$6.52

23

CAM, CLUTCH RELEASE

23263-24B01

$9.91

24

ARM ASSY, CLUTCH RELEASE

23270-24B03

$124.53

25

SPRING

09448-13010

$2.58

26

SHIM (10X14X1)

09181-10111

$1.97

27

O RING (D:1.9,ID:6.8)

09280-07004

$1.53

28

COTTER PIN

04111-2020A

$1.49
