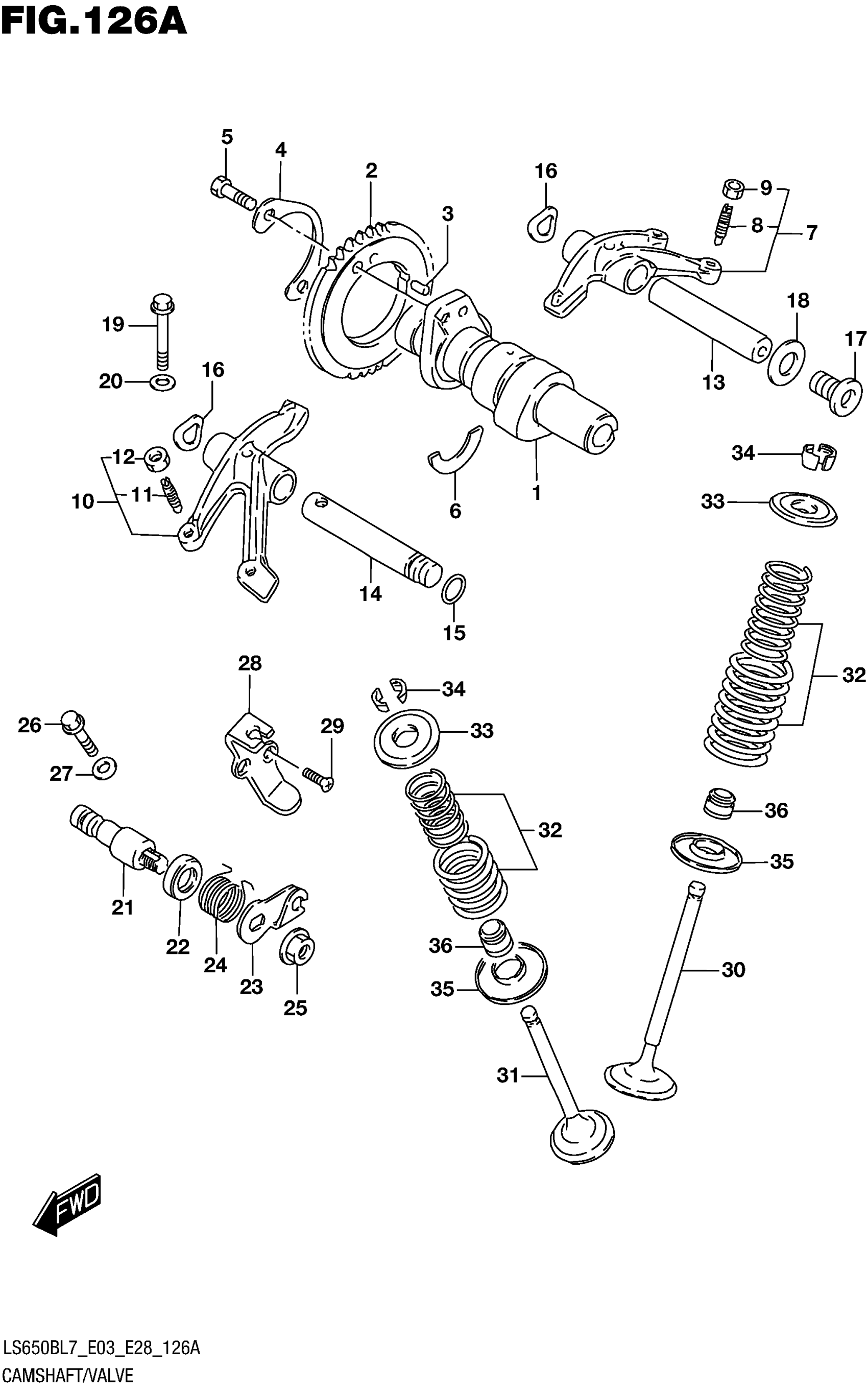

Find the part on the Camshaft/valve diagram for your 2017 Suzuki LS650BL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki LS650BL7 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT

12711-24B11

1
Out of stock

2

SPROCKET, CAM SHAFT (NT:38)

12741-24B00

1
Out of stock

3

PIN (5X12.9)

09261-05009

1
Out of stock

4

WASHER, SPROCKET

12747-44001

1
Out of stock

5

BOLT (6X16)

09111-06053

2
Out of stock

6

C-RING

09390-25003

1
Out of stock

7

ARM, INTAKE VALVE ROCKER

12840-24B10

1
Out of stock

8

.SCREW, TAPPET ADJUSTING

12842-32411

2
Out of stock

9

.NUT, ADJUSTING SCREW

12843-32400

2
Out of stock

10

ARM, EXHAUST VALVE ROCKER

12850-24B10

1
Out of stock

11

.SCREW, TAPPET ADJUSTING

12842-32411

2
Out of stock

12

.NUT, ADJUSTING SCREW

12843-32400

2
Out of stock

13

SHAFT, INTAKE VALVE ROCKER AR | L:73

12861-12D00

1
Out of stock

14

SHAFT, EXHAUST VALVE | L:78.5

12871-14A00

1
Out of stock

14

ROCKER ARM

12871-14A00

1
Out of stock

15

.O RING (D:1.9,ID:8.6)

09280-09005

1
Out of stock

16

WASHER

09164-12018

2
Out of stock

17

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

18

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

19

BOLT

02162-0630B

1
Out of stock

20

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

21

SHAFT, DECOMP LH

12941-24B01

1
Out of stock

22

OIL SEAL (10X20X6)

09282-10012

1
Out of stock

23

LEVER, DECOMP SHAFT LH

12942-24B00

1
Out of stock

24

SPRING | LH

09448-17020

1
Out of stock

25

NUT

08316-1008B

1
Out of stock

26

BOLT (6X16)

09103-06090

1
Out of stock

27

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

28

HOLDER, DECOMP CABLE LH

12944-24B00

1
Out of stock

29

SCREW

02122-0510A

2
Out of stock

30

VALVE, INTAKE

12911-24B01

2
Out of stock

31

VALVE, EXHAUST

12912-24B01

2
Out of stock

32

SPRING SET, VALVE

12920-37402

4
Out of stock

33

RETAINER, VALVE SPRING

12931-45001

4
Out of stock

34

COTTER, VALVE

12932-82000

8
Out of stock

35

SEAT,VALVE SPRI This part replaces 12933-37400.

12933-37401

4
Out of stock

36

OIL SEAL (7X14.4X9)

09289-07002

4
Out of stock
