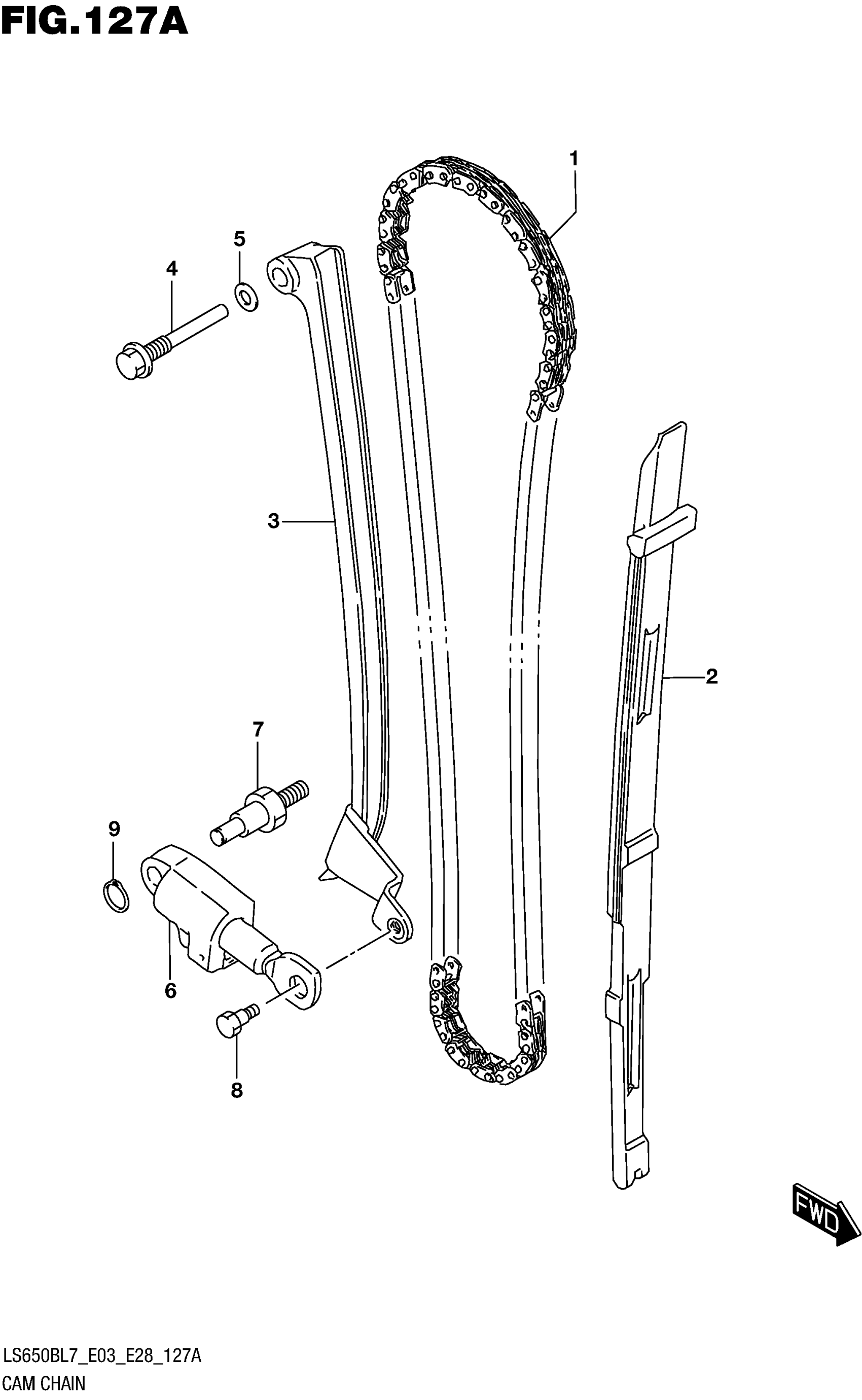

Suzuki LS650BL7 (2017) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | 132LE

12760-24B10

$142.92

2

GUIDE, CAM CHAIN

12771-24B01

$68.80

3

TENSIONER, CAM CHAIN

12811-24B00

$133.58

4

BOLT, CAM CHAIN TENSIONER

12812-24B00

$8.32

5

GASKET (8.2X14X1)

09168-08016

$1.64

6

ADJUSTER ASSY, TENSIONER

12830-24B01

$126.82

7

STUD BOLT

09108-08194

$16.02

8

BOLT

09119-06069

$6.08

9

CIRCLIP

08331-31089

$1.77
