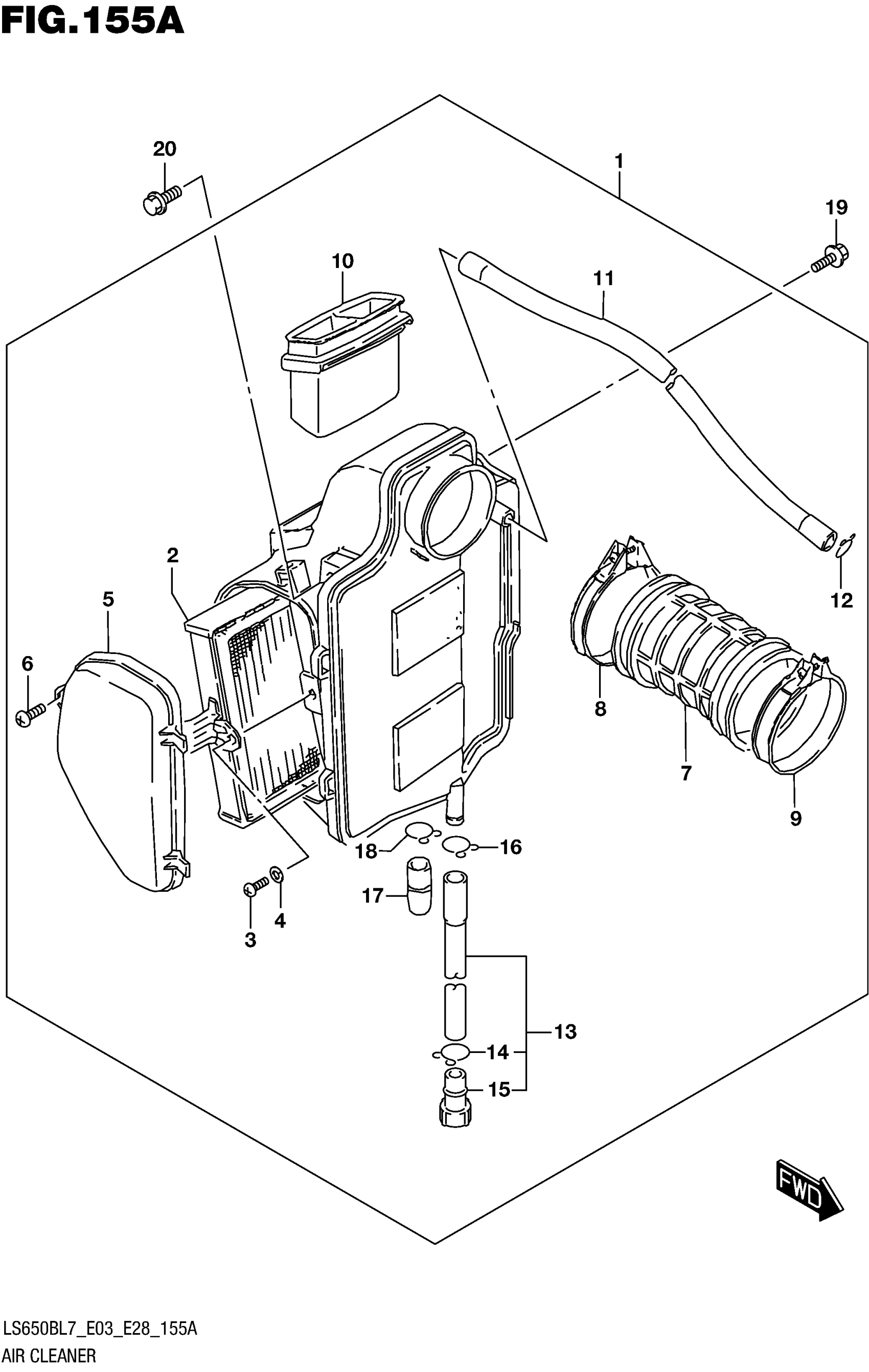

Suzuki LS650BL7 (2017) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI This part replaces 13700-24B06.

13700-24B07

$253.93

2

.FILTER ASSY AIR

13780-24B01

$40.71

3

.SCREW

02112-05107

$1.49

4

.LOCK WASHER

08321-0105A

$1.84

5

.CAP AIR CLEANER

13740-24B01

$21.98

6

.SCREW

02142-0512A

$1.49

7

TUBE,AIR CLEANE This part replaces 13881-24B01.

13881-24B02

$17.69

8

.CLAMP

09402-70902

$5.64

9

.CLAMP

09402-64203

$6.58

10

.TUBE, INLET

13891-24B00

Unavailable

11

HOSE | L:600->430 This part replaces 09352-11153-600.

09352-11154-600

$13.05

12

.CLIP

09401-14301

$2.35

13

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$15.51

14

CLIP This part replaces 13824-18910.

09401-11101

$2.36

15

..STOPPER, DRAIN

13877-38A00

$5.98

16

.CLIP

09401-13409

$2.12

17

.PLUG

13859-41B10

$7.38

18

.CLIP

09401-14301

$2.35

19

BOLT (6X16)

09116-06006

$1.86

20

BOLT

01550-0612A

$1.97
