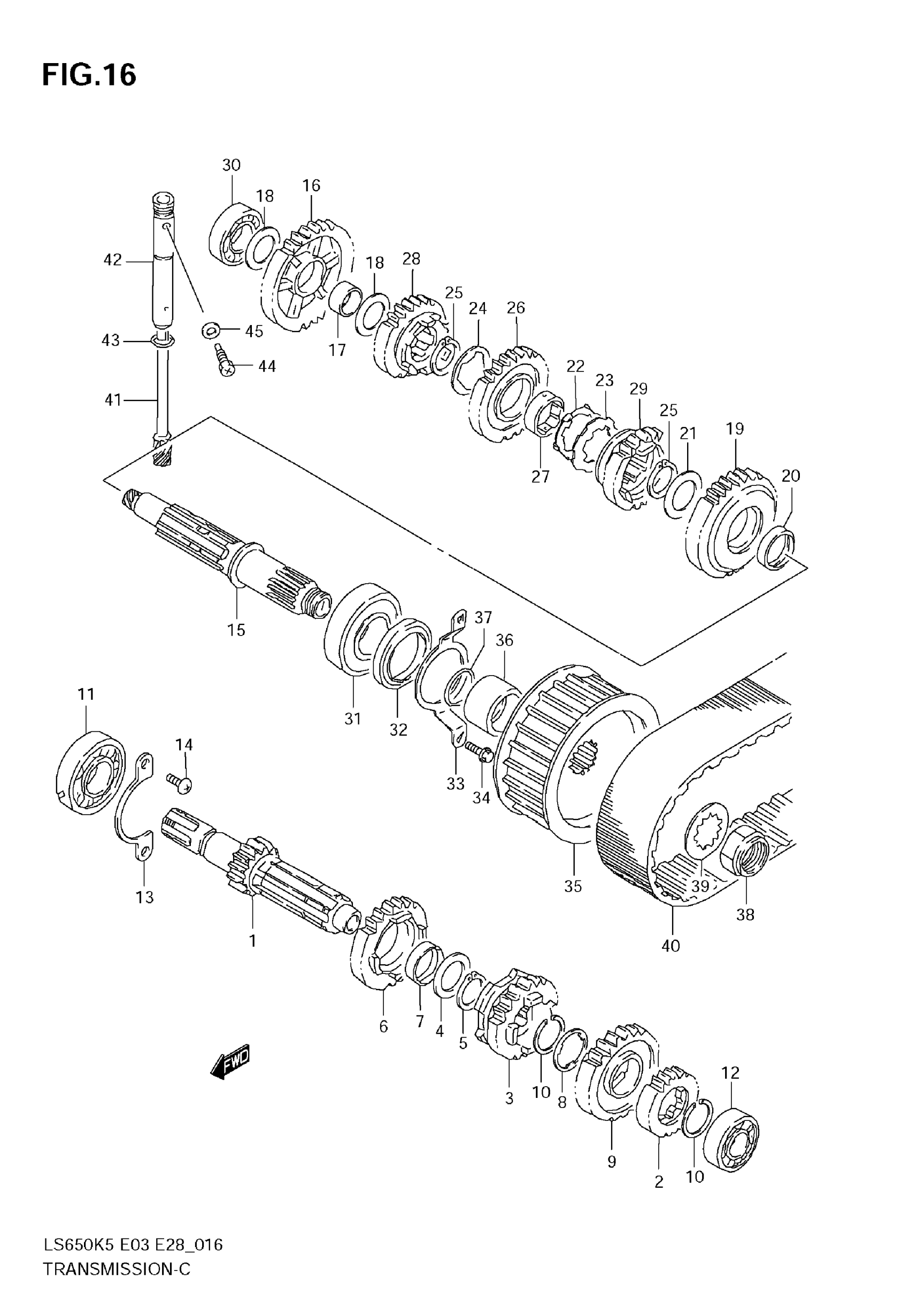

Suzuki LS650 (2009) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:15)

24121-24B12

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-24B21

Unavailable

3

GEAR, 3RD DRIVEN (NT:21)

24231-24B30

Unavailable

4

WASHER

08211-25351

$4.03

5

SNAP RING

09380-25003

$2.80

6

GEAR, 4TH DRIVE (NT:23)

24241-24B20

Unavailable

7

BUSH

24252-19F00

$19.32

8

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

9

GEAR, 5TH DRIVE (NT:26)

24251-24B13

Unavailable

10

CIRCLIP

09380-25010

$2.80

11

BEARING, RH (22X56X16)

09262-22028

$69.91

12

BEARING, LH (17X40X12)

09262-17027

$37.62

13

HOLDER, BEARING

24741-24B00

Unavailable

14

BOLT

02112-0612A

$1.43

15

DRIVE SHAFT

24130-24B12

Unavailable

16

GEAR, 1ST DRIVEN (NT:35)

24311-24B11

Unavailable

17

BUSH

09300-20032

$19.02

18

WASHER (20X30X1.0)

09181-20195

$2.68

19

GEAR, 2ND DRIVEN (NT:30)

24321-24B20

Unavailable

20

BUSH

09300-25020

$18.32

21

WASHER

08211-25351

$4.03

22

WASHER (25.1X37X2.5)

09169-25001

$2.95

23

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

24

WASHER (25.5X35X1.0)

09167-25016

$4.03

25

SNAP RING

09380-25003

$2.80

26

GEAR, 3RD DRIVEN (NT:24)

24331-24B20

Unavailable

27

BUSH

24332-24510

$21.07

28

GEAR, 4TH DRIVEN (NT:22)

24341-24B20

Unavailable

29

GEAR, 5TH DRIVEN (NT:23)

24351-24B13

Unavailable

30

BEARING, RH (20X42X12)

09262-20106

$31.90

31

BEARING, LH (25X62X17)

09262-25125

$75.18

32

OIL SEAL, LH (36X50X6.0)

09283-36003

$11.37

33

HOLDER, OIL SEAL

24751-24B00

$8.32

34

BOLT

01547-0612A

$2.01

35

PULLEY, FRONT

27510-24B01

$160.00

36

SPACER

27531-24B00

$35.80

37

O RING (D:2.5,ID:23.8)

09280-24010

$5.09

38

NUT

09159-20004

$14.15

39

LOCK WASHER

09167-25019

$2.17

40

BELT, DRIVE

27611-24B00-133

$276.10

41

GEAR, DRIVEN (NT:8)

26131-24B00

Unavailable

42

SLEEVE

26481-24B01

Unavailable

43

O RING (D:1.3,ID:9.6)

09280-10001

$2.12

44

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$2.80

45

WASHER (6.2X11X1.2)

09168-06004

$1.43
