Description

Price

1

STEM, STEERING | Includes Item(s) 2

51410-24B20

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

STEM HEAD, STEERING | Includes Item(s) 4

51310-24B50

Unavailable

4

WASHER

51357-24B00

Unavailable

5

NUT, CAP

51353-24B10

Unavailable

6

WASHER

51356-24B01

$5.38

7

HOLDER, HANDLE UPPER

56211-24B50

Unavailable

8

HOLDER, HANDLE LOWER

56221-24B50

Unavailable

9

BOLT

07130-08307

$3.89

10

ARM

56231-24B50

Unavailable

11

BOLT

07130-10257

$4.60

12

CAP, HANDLE CLAMP

09250-06009

$3.42

13

CUSHION, UPPER

56240-24B00

$41.63

14

CUSHION, LOWER

56240-24B10

$41.63

15

SPACER

09180-10065

$5.28

16

NUT

08319-31107

$2.73

17

BOLT

07130-10307

$4.41

18

NUT, STEERING STEM

51631-28000

$17.37

19

DUST SEAL, STEERING UPPER

51643-49002

$12.32

20

BEARING, STEERING UPPER (25X47X15)

09265-25019

$56.53

21

LOCK ASSY,STEER This part replaces 51900-22662.

51900-309V0

$87.06

22

EMBLEM, "S"

68281-35F00

$16.45

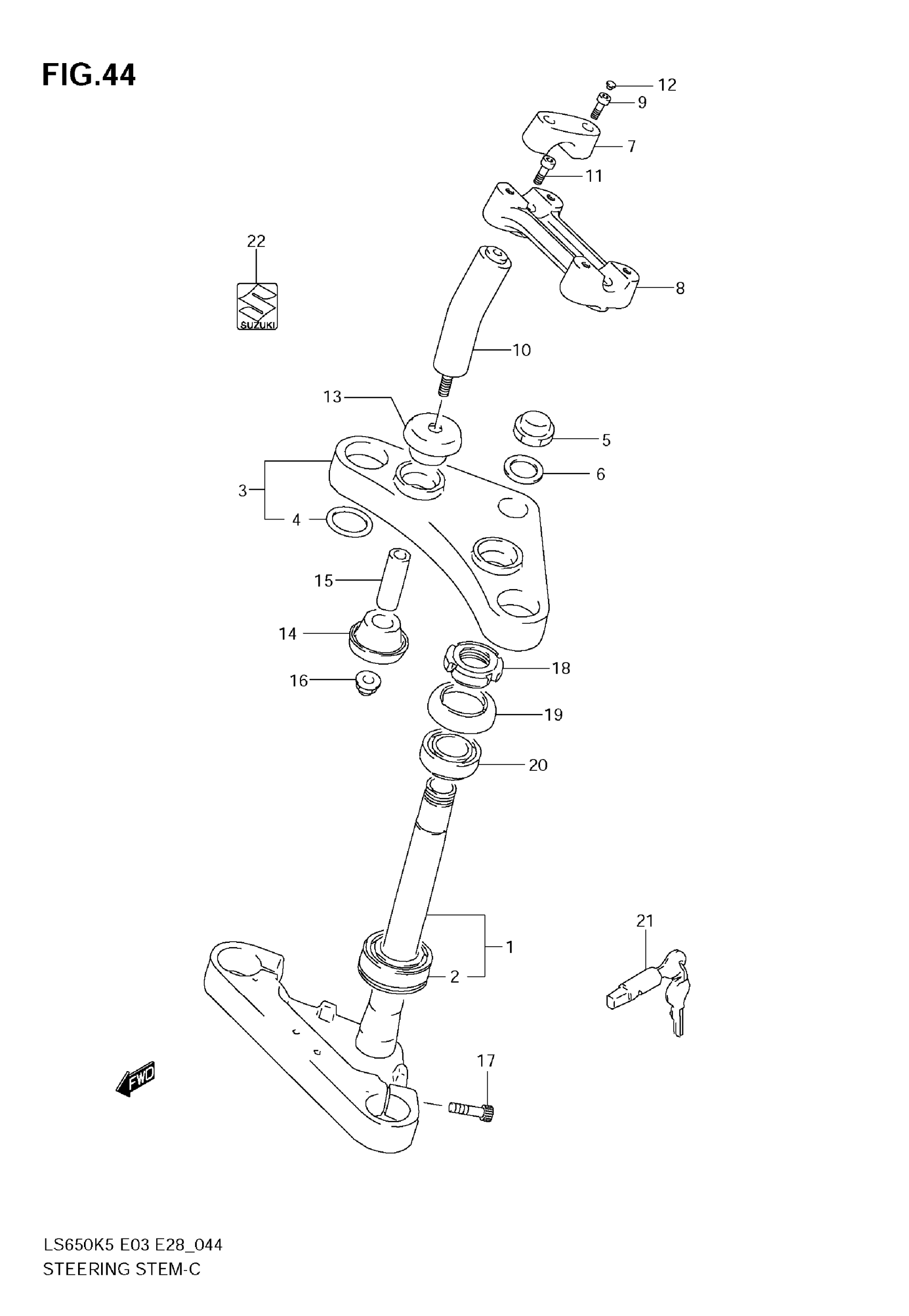

Suzuki LS650 (2009) STEERING STEM Diagram

STEM, STEERING | Includes Item(s) 2

RT 30X55X17 BEA This part replaces 09265-30009.

STEM HEAD, STEERING | Includes Item(s) 4

WASHER

NUT, CAP

WASHER

HOLDER, HANDLE UPPER

HOLDER, HANDLE LOWER

BOLT

ARM

BOLT

CAP, HANDLE CLAMP

CUSHION, UPPER

CUSHION, LOWER

SPACER

NUT

BOLT

NUT, STEERING STEM

DUST SEAL, STEERING UPPER

BEARING, STEERING UPPER (25X47X15)

LOCK ASSY,STEER This part replaces 51900-22662.

EMBLEM, "S"
