Description

Price

1

SEAT ASSY | Includes Item(s) 2 - 8 This part replaces 45100-24BA0-HW9.

45100-24BA1-HW9

$336.65

2

CUSHION,SEAT This part replaces 45149-24B00.

45149-24B01

$3.25

3

CUSHION, CENTER FRONT

45116-24B00

Unavailable

4

CUSHION

45149-43500

$6.85

5

BRACKET, SEAT CTR

45114-24B00

$10.17

6

CUSHION, SEAT CTR

45118-24B00

$3.77

7

WASHER

09160-06066

$1.89

8

BOLT

01550-0625B

$2.42

9

BOLT (6X12)

01550-0612B

$2.39

10

PLATE, SEAT FRONT

45119-24B00

$3.05

11

CUSHION, SEAT REAR

45149-24BA0

$5.13

12

SCREW, SEAT SPRT REAR

09139-06115

$4.88

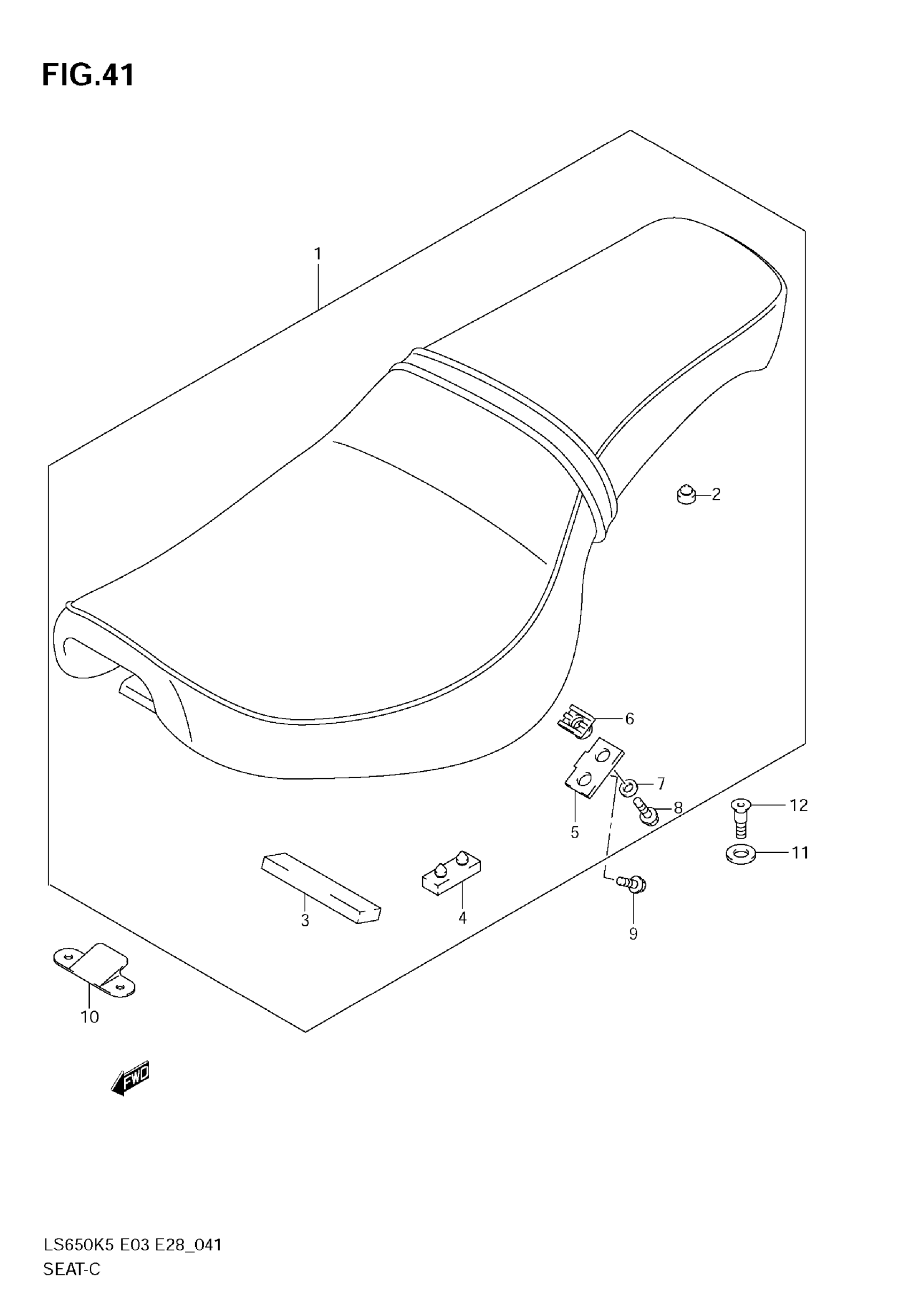

Suzuki LS650 (2009) SEAT Diagram
