2009 Suzuki LS650 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 2009 Suzuki LS650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

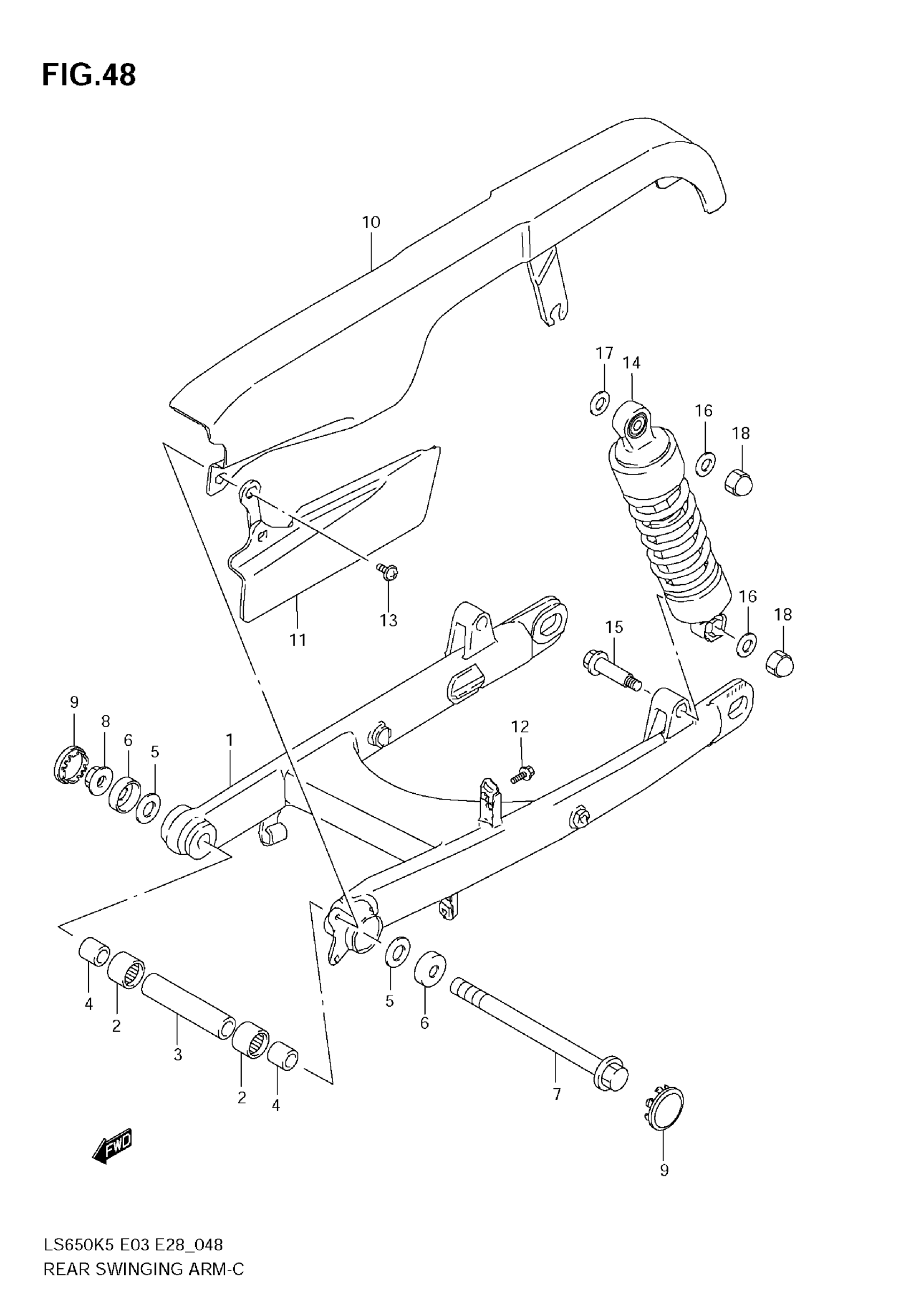

2009 Suzuki LS650 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM, REAR (BLACK)

61100-24B03-019

1
Out of stock

2

BEARING (22X29X30)

09263-22017

2

$21.98

In stock

3

SPACER, CENTER

61282-24B01

1
Out of stock

4

SPACER, PIVOT

61251-24B00

2

$23.08

In stock

5

THRUST WASHER

08211-14341

2

$3.72

In stock

6

DUST SEAL

61262-45002

2

$8.18

In stock

7

SHAFT, PIVOT

61211-24B00

1
Out of stock

8

NUT

08319-3114A

1
Out of stock

9

CAP, PIVOT

61222-38A01

2

$15.07

In stock

10

BELT CASE, UPPER

61310-24B02

1

$300.27

In stock

11

BELT CASE, LOWER

61320-24B02

1
Out of stock

12

BOLT

01550-0612B

2
Out of stock

13

SCREW

02112-7612B

2

$3.10

In stock

14

2

$397.75

In stock

15

BOLT, LOWER

62313-24B00

2

$13.50

In stock

16

WASHER, OUTER (10.5X28X2.3)

09160-10035

4
Out of stock

17

WASHER, UPPER INNER (14.5X29X2.3)

09160-14009

2
Out of stock

18

NUT

08313-10107

4

$2.73

In stock
