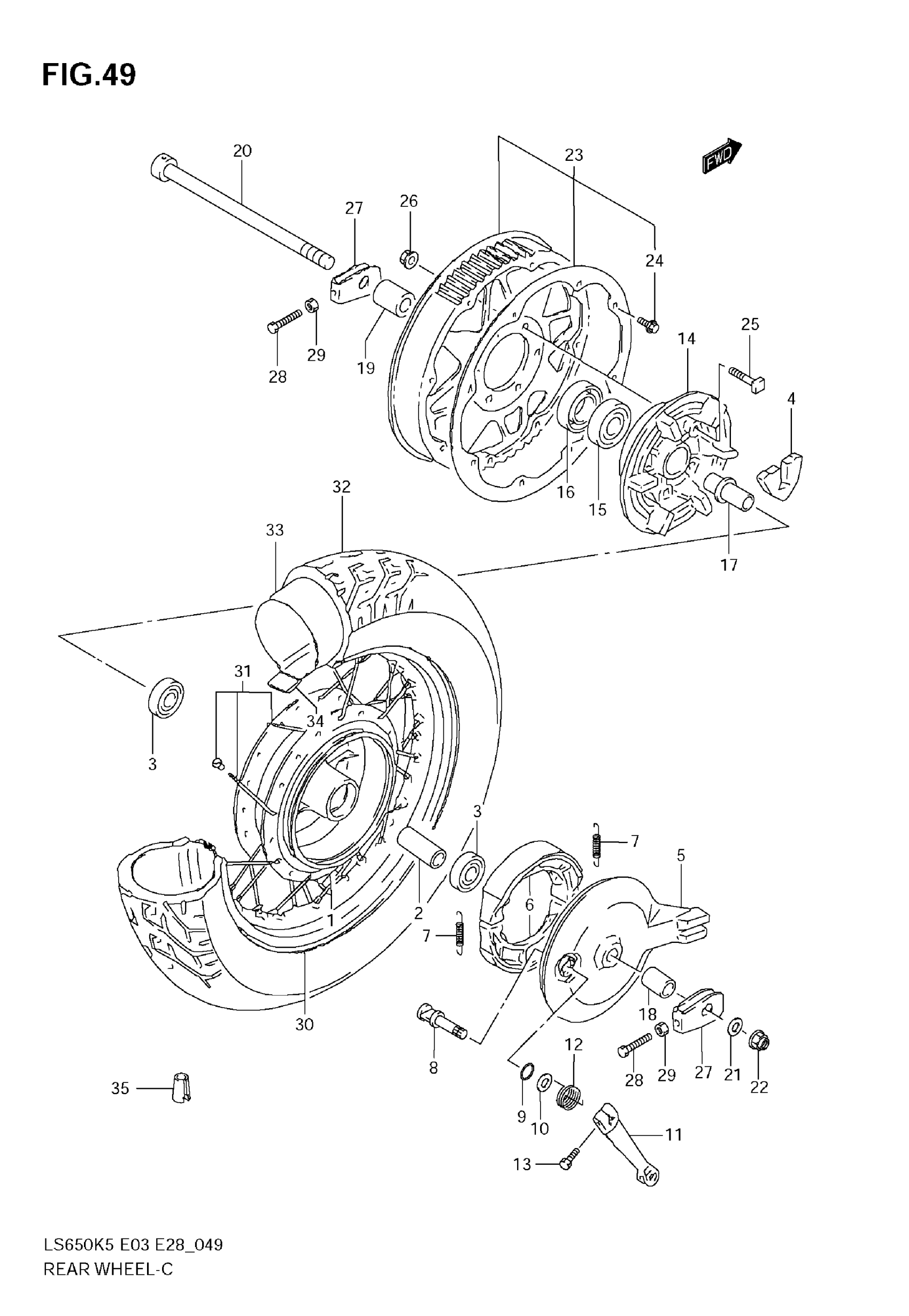

Suzuki LS650 (2009) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-24B00

Unavailable

2

SPACER (17.5X25X70)

09180-17069

$26.02

3

BEARING

08143-63037

$20.38

4

SHOCK ABSORBER, HUB

64651-31001

$10.24

5

PANEL, REAR BRAKE ANCHOR

64210-24B01

Unavailable

6

SHOE SET, BRAKE

64400-44810

$58.07

7

SPRING, SHOE

55420-30000

$4.22

8

CAM, REAR BRAKE

54440-08004

$31.18

9

O RING (D:2.4,ID:14.8)

09280-15003

$1.77

10

WASHER

09160-15048

$2.58

11

LEVER, BRAKE CAM

64451-24B00

$65.17

12

SPRING

09448-33006

$10.03

13

BOLT

01570-0625B

$3.30

14

DRUM, SPROCKET

64611-31003

Unavailable

15

BEARING (25X62X17)

09262-25073

$23.39

16

OIL SEAL (33X62X7)

09285-33001

$12.15

17

RETAINER, DRUM

64733-31300

$26.67

18

SPACER, RH (17.6X28X22.30)

09180-17082

$11.35

19

SPACER, LH (17X33X35.30)

09180-17083

$18.68

20

AXLE, REAR

64711-24B02

Unavailable

21

WASHER

09160-17050

$2.67

22

NUT

09159-16002

$5.17

23

SPROCKET, REAR (NT:68) | Includes Item(s) 24 This part replaces 64510-24B02.

64510-24B10

$674.08

24

BOLT

01550-0612B

$2.38

25

BOLT (10X40)

09105-10005

Unavailable

26

NUT

08319-3110B

$4.20

27

ADJUSTER, BELT

61410-24B01

$23.08

28

BOLT (8X43)

09104-08027

$3.18

29

NUT

08310-00087

$1.83

30

RIM, REAR WHEEL (WM2.75X15 M/C)

65311-24B01

Unavailable

31

SPOKE SET, REAR WHEEL

65320-24B00

$116.63

32

TIRE,RR,(140/80 This part replaces 65100-24B02.

65100-24B03

$276.68

33

TUBE ASSY,WHEEL This part replaces 65200-26F10.

65200-26F11

$59.43

34

PROTECTOR, WHEEL INNER TUBE This part replaces 65261-26F00.

65261-26F10

$7.47

35

BALANCER WHEEL (15G)

55411-26G00

$8.73

35

BALANCER WHEEL (30G)

55413-41F00

$9.95
